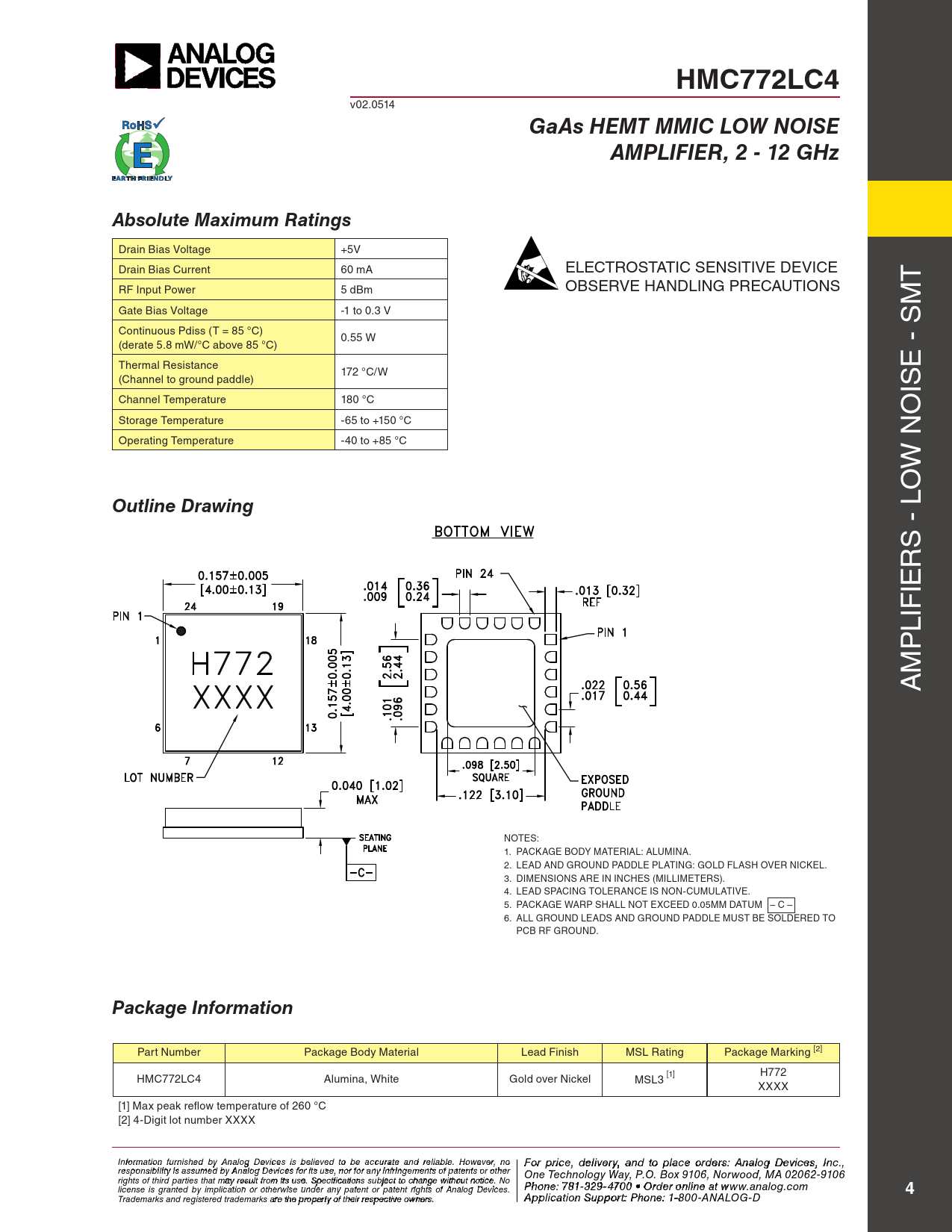

HMC772LC4
v02.0514
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 2 - 12 GHz Absolute Maximum Ratings
Drain Bias Voltage +5V Drain Bias Current 60 mA ELECTROSTATIC SENSITIVE DEVICE T RF Input Power 5 dBm OBSERVE HANDLING PRECAUTIONS M Gate Bias Voltage -1 to 0.3 V Continuous Pdiss (T = 85 °C) 0.55 W (derate 5.8 mW/°C above 85 °C) Thermal Resistance E - S 172 °C/W (Channel to ground paddle) IS Channel Temperature 180 °C O Storage Temperature -65 to +150 °C Operating Temperature -40 to +85 °C W N O
Outline Drawing
S - L R IE LIF P M A NOTES: 1. PACKAGE BODY MATERIAL: ALUMINA. 2. LEAD AND GROUND PADDLE PLATING: GOLD FLASH OVER NICKEL. 3. DIMENSIONS ARE IN INCHES (MILLIMETERS). 4. LEAD SPACING TOLERANCE IS NON-CUMULATIVE. 5. PACKAGE WARP SHALL NOT EXCEED 0.05MM DATUM – C – 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC772LC4 Alumina, White Gold over Nickel MSL3 [1] H772 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com
4
Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 o pplic r a atio pp n S s u @ p h por ittti : Pte ho.c n o e m : 1-800-ANALOG-D
