Datasheet ADL5723 (Analog Devices)
Fabricante | Analog Devices |
Descripción | 10.1 GHz to 11.7 GHz, Low Noise Amplifier |
Páginas / Página | 12 / 1 — 10.1 GHz to 11.7 GHz, Low Noise Amplifier. Data Sheet. ADL5723. FEATURES. … |
Formato / tamaño de archivo | PDF / 277 Kb |
Idioma del documento | Inglés |
10.1 GHz to 11.7 GHz, Low Noise Amplifier. Data Sheet. ADL5723. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento

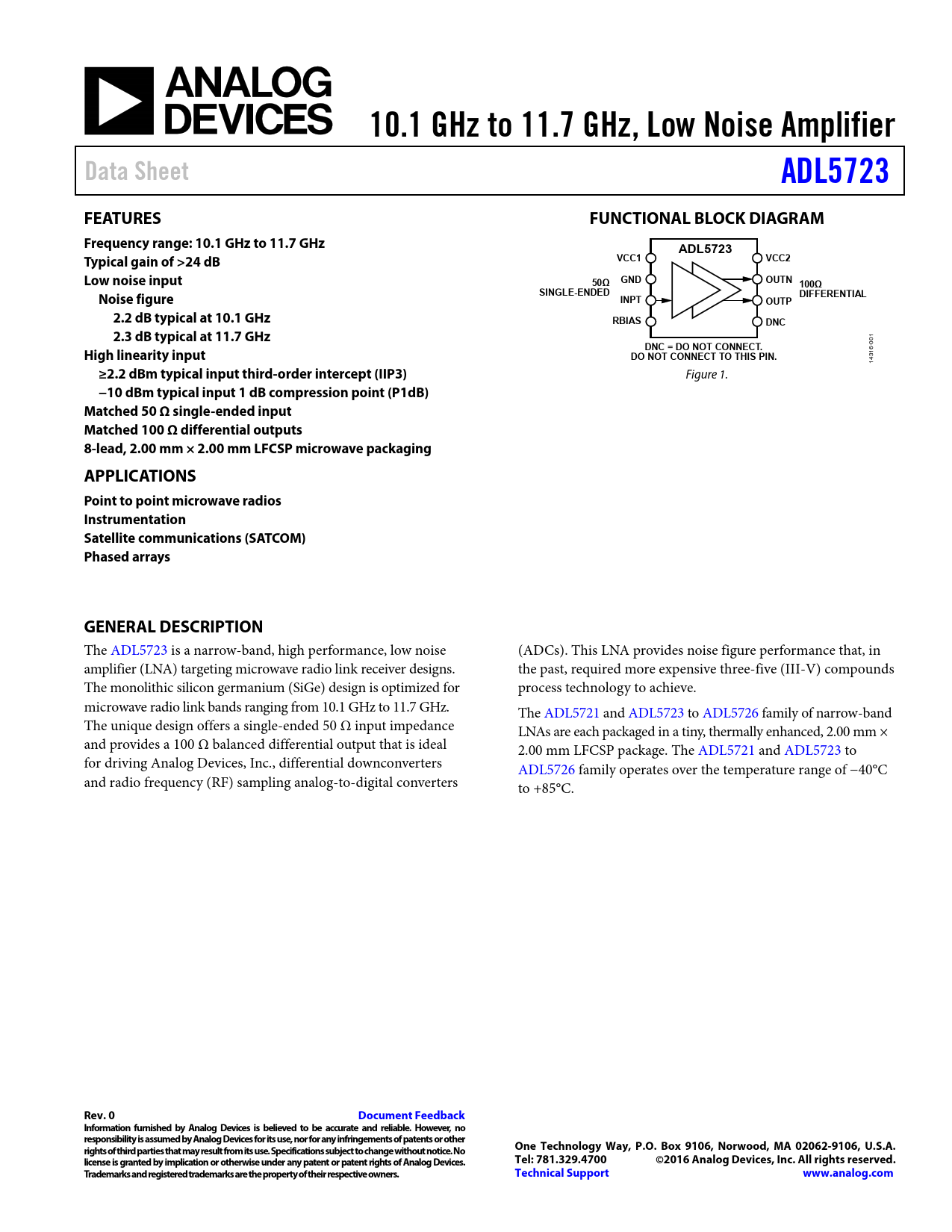

10.1 GHz to 11.7 GHz, Low Noise Amplifier Data Sheet ADL5723 FEATURES FUNCTIONAL BLOCK DIAGRAM Frequency range: 10.1 GHz to 11.7 GHz ADL5723 Typical gain of >24 dB VCC1 VCC2 Low noise input 50Ω GND OUTN 100Ω SINGLE-ENDED DIFFERENTIAL Noise figure INPT OUTP 2.2 dB typical at 10.1 GHz RBIAS DNC 2.3 dB typical at 11.7 GHz
01 0
DNC = DO NOT CONNECT.
6-
High linearity input DO NOT CONNECT TO THIS PIN.
431 1
≥2.2 dBm typical input third-order intercept (IIP3)
Figure 1.
−10 dBm typical input 1 dB compression point (P1dB) Matched 50 Ω single-ended input Matched 100 Ω differential outputs 8-lead, 2.00 mm × 2.00 mm LFCSP microwave packaging APPLICATIONS Point to point microwave radios Instrumentation Satellite communications (SATCOM) Phased arrays GENERAL DESCRIPTION
The ADL5723 is a narrow-band, high performance, low noise (ADCs). This LNA provides noise figure performance that, in amplifier (LNA) targeting microwave radio link receiver designs. the past, required more expensive three-five (III-V) compounds The monolithic silicon germanium (SiGe) design is optimized for process technology to achieve. microwave radio link bands ranging from 10.1 GHz to 11.7 GHz. The ADL5721 and ADL5723 to ADL5726 family of narrow-band The unique design offers a single-ended 50 Ω input impedance LNAs are each packaged in a tiny, thermally enhanced, 2.00 mm × and provides a 100 Ω balanced differential output that is ideal 2.00 mm LFCSP package. The ADL5721 and ADL5723 to for driving Analog Devices, Inc., differential downconverters ADL5726 family operates over the temperature range of −40°C and radio frequency (RF) sampling analog-to-digital converters to +85°C.
