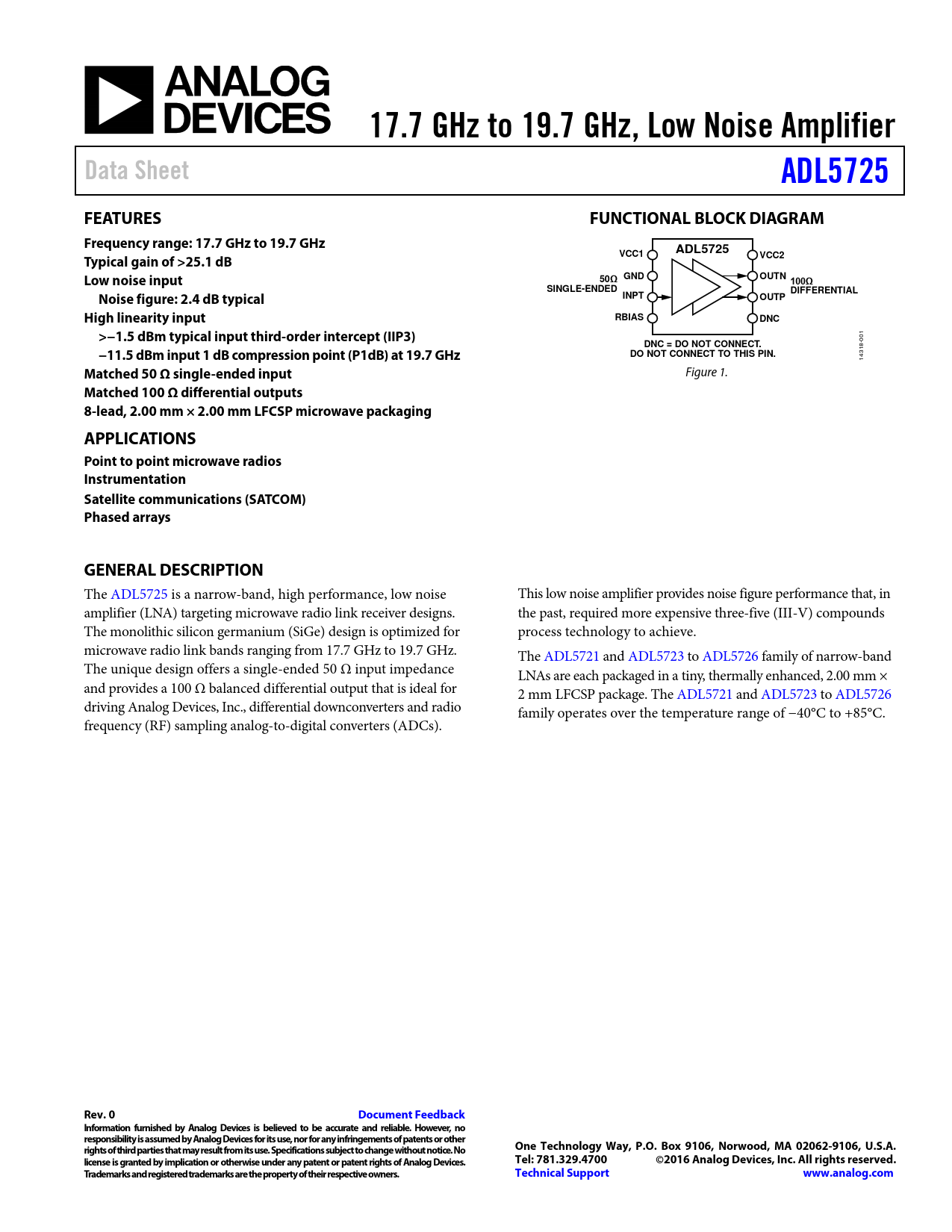

17.7 GHz to 19.7 GHz, Low Noise Amplifier. Data Sheet. ADL5725. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento
17.7 GHz to 19.7 GHz, Low Noise Amplifier Data Sheet ADL5725 FEATURES FUNCTIONAL BLOCK DIAGRAM Frequency range: 17.7 GHz to 19.7 GHz ADL5725 Typical gain of >25.1 dB VCC1 VCC2 Low noise input 50Ω GND OUTN 100Ω SINGLE-ENDED DIFFERENTIAL Noise figure: 2.4 dB typical INPT OUTP High linearity input RBIAS DNC >−1.5 dBm typical input third-order intercept (IIP3)
001
DNC = DO NOT CONNECT. −11.5 dBm input 1 dB compression point (P1dB) at 19.7 GHz DO NOT CONNECT TO THIS PIN.
14318-
Matched 50 Ω single-ended input
Figure 1.
Matched 100 Ω differential outputs 8-lead, 2.00 mm × 2.00 mm LFCSP microwave packaging APPLICATIONS Point to point microwave radios Instrumentation Satellite communications (SATCOM) Phased arrays GENERAL DESCRIPTION
The ADL5725 is a narrow-band, high performance, low noise This low noise amplifier provides noise figure performance that, in amplifier (LNA) targeting microwave radio link receiver designs. the past, required more expensive three-five (III-V) compounds The monolithic silicon germanium (SiGe) design is optimized for process technology to achieve. microwave radio link bands ranging from 17.7 GHz to 19.7 GHz. The ADL5721 and ADL5723 to ADL5726 family of narrow-band The unique design offers a single-ended 50 Ω input impedance LNAs are each packaged in a tiny, thermal y enhanced, 2.00 mm × and provides a 100 Ω balanced differential output that is ideal for 2 mm LFCSP package. The ADL5721 and ADL5723 to ADL5726 driving Analog Devices, Inc., differential downconverters and radio family operates over the temperature range of −40°C to +85°C. frequency (RF) sampling analog-to-digital converters (ADCs).
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS AC SPECIFICATIONS DC SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION LAYOUT DIFFERENTIAL vs. SINGLE-ENDED OUTPUT EVALUATION BOARD INITIAL SETUP RESULTS BASIC CONNECTIONS FOR OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
