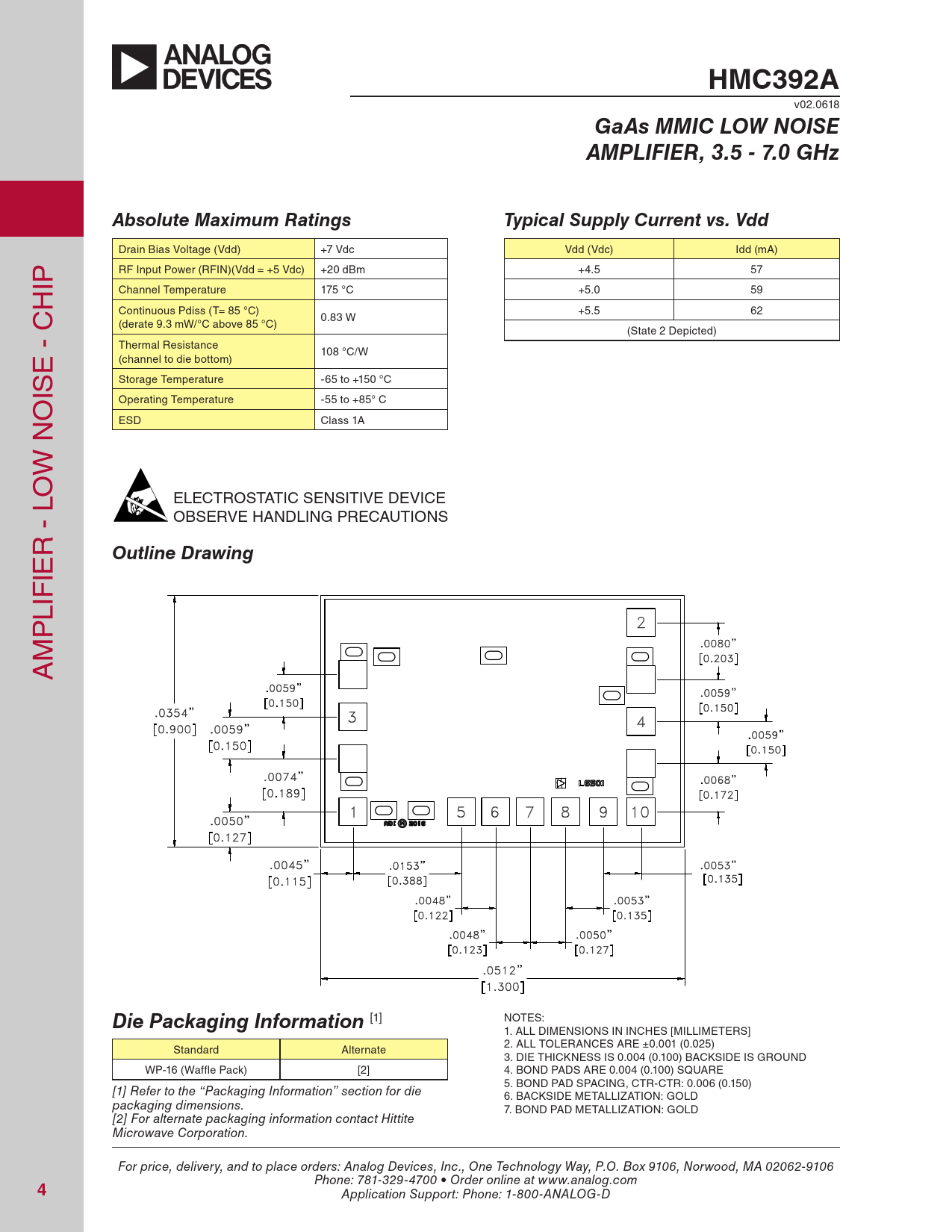

HMC392A. GaAs MMIC LOW NOISE. AMPLIFIER, 3.5 - 7.0 GHz. Absolute Maximum Ratings. Typical Supply Current vs. Vdd. Outline Drawing
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC392A
v02.0618
GaAs MMIC LOW NOISE AMPLIFIER, 3.5 - 7.0 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd) +7 Vdc Vdd (Vdc) Idd (mA) IP RF Input Power (RFIN)(Vdd = +5 Vdc) +20 dBm +4.5 57 H Channel Temperature 175 °C +5.0 59 Continuous Pdiss (T= 85 °C) +5.5 62 0.83 W (derate 9.3 mW/°C above 85 °C) (State 2 Depicted) Thermal Resistance E - C 108 °C/W (channel to die bottom) IS Storage Temperature -65 to +150 °C O Operating Temperature -55 to +85° C ESD Class 1A W N O ELECTROSTATIC SENSITIVE DEVICE OBSERVE HANDLING PRECAUTIONS R - L
Outline Drawing
IE LIF P M A NOTES:
Die Packaging Information
[1] 1. ALL DIMENSIONS IN INCHES [MILLIMETERS] 2. ALL TOLERANCES ARE ±0.001 (0.025) Standard Alternate 3. DIE THICKNESS IS 0.004 (0.100) BACKSIDE IS GROUND WP-16 (Waffle Pack) [2] 4. BOND PADS ARE 0.004 (0.100) SQUARE 5. BOND PAD SPACING, CTR-CTR: 0.006 (0.150) [1] Refer to the “Packaging Information” section for die 6. BACKSIDE METALLIZATION: GOLD packaging dimensions. 7. BOND PAD METALLIZATION: GOLD [2] For alternate packaging information contact Hittite Microwave Corporation. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
4
Application Support: Phone: 1-800-ANALOG-D
