HMC392ALC4. GaAs MMIC LOW NOISE. AMPLIFIER, 3.5 - 8.0 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento

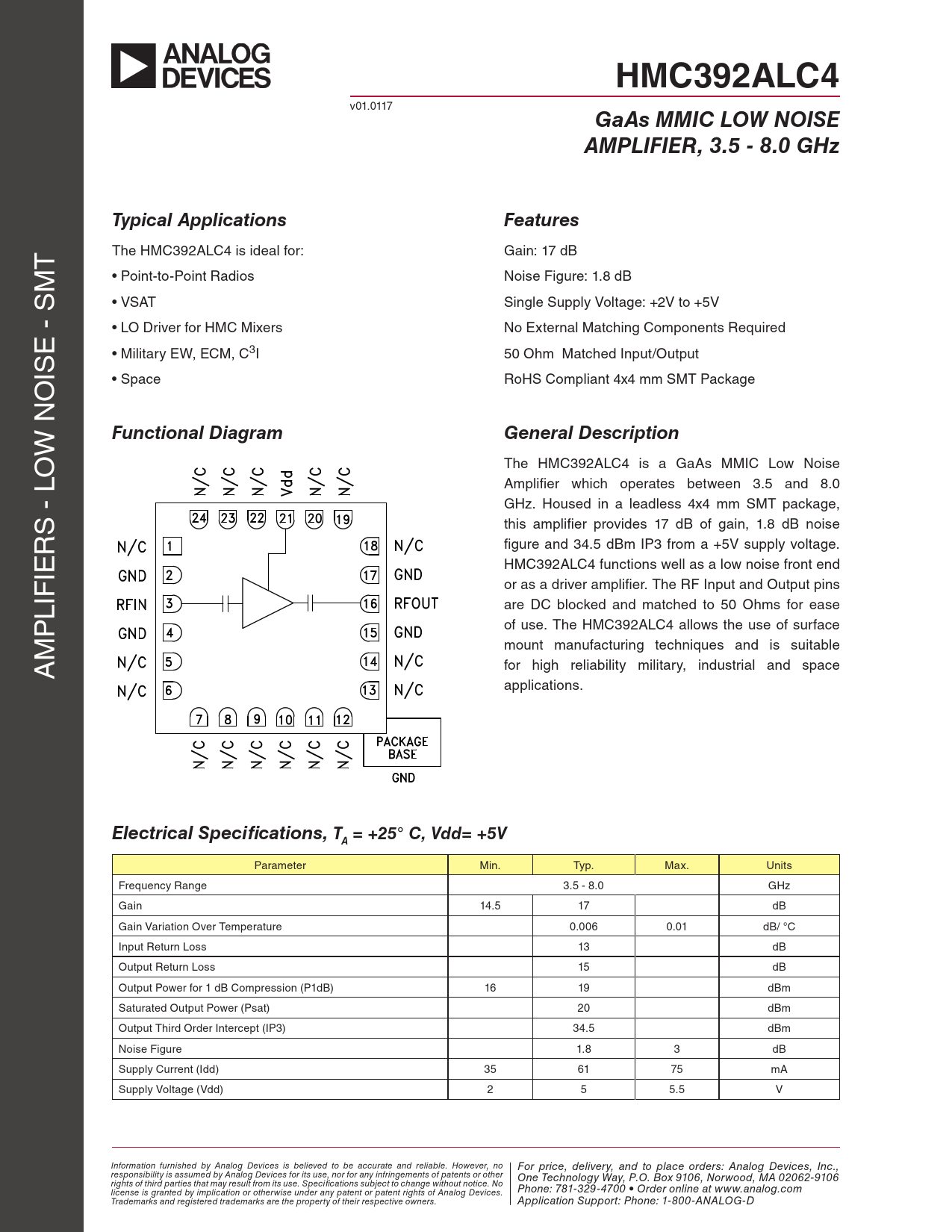

HMC392ALC4
v01.0117
GaAs MMIC LOW NOISE AMPLIFIER, 3.5 - 8.0 GHz Typical Applications Features
T The HMC392ALC4 is ideal for: Gain: 17 dB M • Point-to-Point Radios Noise Figure: 1.8 dB • VSAT Single Supply Voltage: +2V to +5V • LO Driver for HMC Mixers No External Matching Components Required E - S • Military EW, ECM, C3I 50 Ohm Matched Input/Output IS O • Space RoHS Compliant 4x4 mm SMT Package W N
Functional Diagram General Description
O The HMC392ALC4 is a GaAs MMIC Low Noise Amplifier which operates between 3.5 and 8.0 GHz. Housed in a leadless 4x4 mm SMT package, S - L this amplifier provides 17 dB of gain, 1.8 dB noise R figure and 34.5 dBm IP3 from a +5V supply voltage. IE HMC392ALC4 functions well as a low noise front end or as a driver amplifier. The RF Input and Output pins LIF are DC blocked and matched to 50 Ohms for ease P of use. The HMC392ALC4 al ows the use of surface M mount manufacturing techniques and is suitable A for high reliability military, industrial and space applications.
Electrical Specifications, T = +25° C, Vdd= +5V A
Parameter Min. Typ. Max. Units Frequency Range 3.5 - 8.0 GHz Gain 14.5 17 dB Gain Variation Over Temperature 0.006 0.01 dB/ °C Input Return Loss 13 dB Output Return Loss 15 dB Output Power for 1 dB Compression (P1dB) 16 19 dBm Saturated Output Power (Psat) 20 dBm Output Third Order Intercept (IP3) 34.5 dBm Noise Figure 1.8 3 dB Supply Current (Idd) 35 61 75 mA Supply Voltage (Vdd) 2 5 5.5 V Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
v01.0117
GaAs MMIC LOW NOISE AMPLIFIER, 3.5 - 8.0 GHz Typical Applications Features
T The HMC392ALC4 is ideal for: Gain: 17 dB M • Point-to-Point Radios Noise Figure: 1.8 dB • VSAT Single Supply Voltage: +2V to +5V • LO Driver for HMC Mixers No External Matching Components Required E - S • Military EW, ECM, C3I 50 Ohm Matched Input/Output IS O • Space RoHS Compliant 4x4 mm SMT Package W N
Functional Diagram General Description
O The HMC392ALC4 is a GaAs MMIC Low Noise Amplifier which operates between 3.5 and 8.0 GHz. Housed in a leadless 4x4 mm SMT package, S - L this amplifier provides 17 dB of gain, 1.8 dB noise R figure and 34.5 dBm IP3 from a +5V supply voltage. IE HMC392ALC4 functions well as a low noise front end or as a driver amplifier. The RF Input and Output pins LIF are DC blocked and matched to 50 Ohms for ease P of use. The HMC392ALC4 al ows the use of surface M mount manufacturing techniques and is suitable A for high reliability military, industrial and space applications.
Electrical Specifications, T = +25° C, Vdd= +5V A
Parameter Min. Typ. Max. Units Frequency Range 3.5 - 8.0 GHz Gain 14.5 17 dB Gain Variation Over Temperature 0.006 0.01 dB/ °C Input Return Loss 13 dB Output Return Loss 15 dB Output Power for 1 dB Compression (P1dB) 16 19 dBm Saturated Output Power (Psat) 20 dBm Output Third Order Intercept (IP3) 34.5 dBm Noise Figure 1.8 3 dB Supply Current (Idd) 35 61 75 mA Supply Voltage (Vdd) 2 5 5.5 V Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
