Datasheet HMC8411LP2FE (Analog Devices) - 3

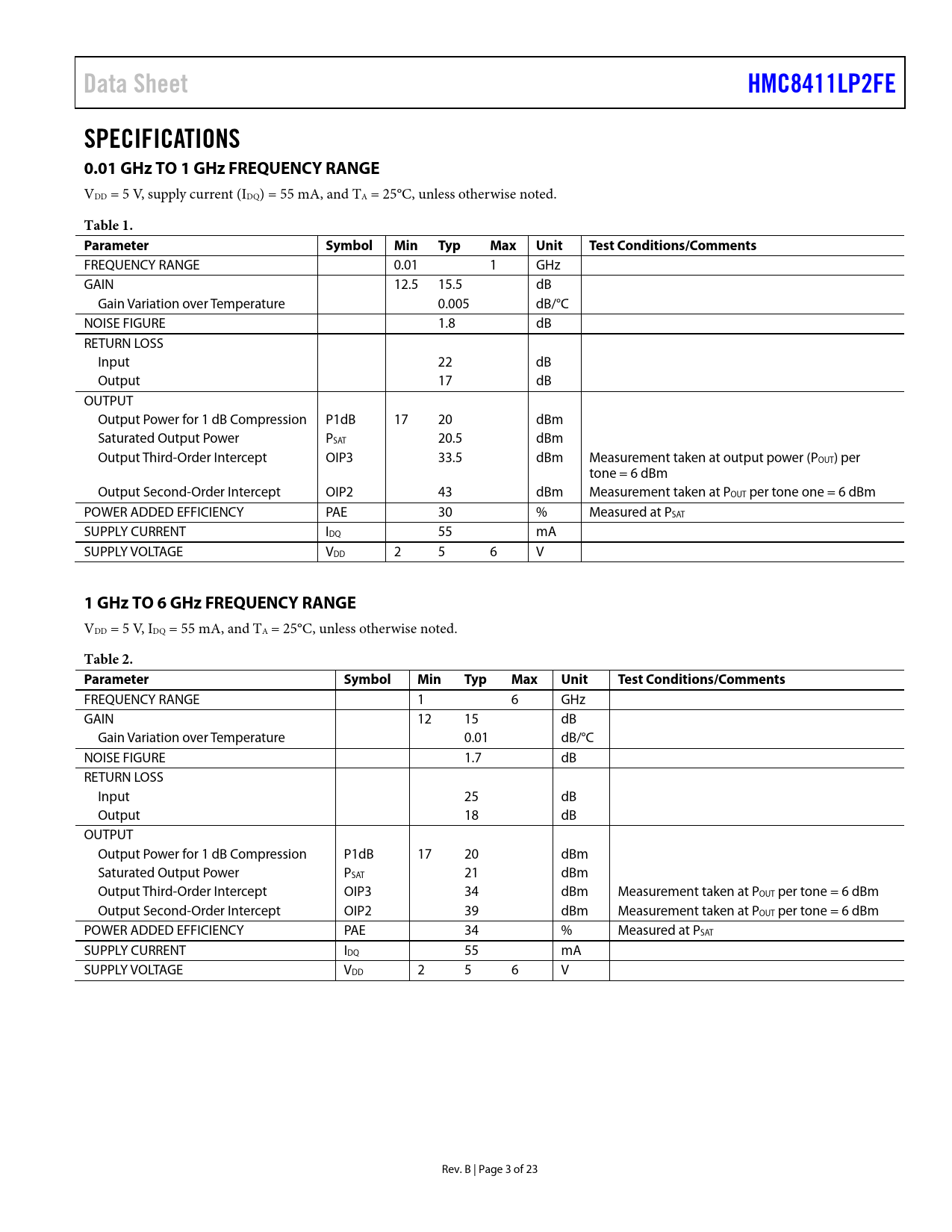

Data Sheet HMC8411LP2FE SPECIFICATIONS 0.01 GHz TO 1 GHz FREQUENCY RANGE
VDD = 5 V, supply current (IDQ) = 55 mA, and TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 0.01 1 GHz GAIN 12.5 15.5 dB Gain Variation over Temperature 0.005 dB/°C NOISE FIGURE 1.8 dB RETURN LOSS Input 22 dB Output 17 dB OUTPUT Output Power for 1 dB Compression P1dB 17 20 dBm Saturated Output Power PSAT 20.5 dBm Output Third-Order Intercept OIP3 33.5 dBm Measurement taken at output power (POUT) per tone = 6 dBm Output Second-Order Intercept OIP2 43 dBm Measurement taken at POUT per tone one = 6 dBm POWER ADDED EFFICIENCY PAE 30 % Measured at PSAT SUPPLY CURRENT IDQ 55 mA SUPPLY VOLTAGE VDD 2 5 6 V
1 GHz TO 6 GHz FREQUENCY RANGE
VDD = 5 V, IDQ = 55 mA, and TA = 25°C, unless otherwise noted.
Table 2. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 1 6 GHz GAIN 12 15 dB Gain Variation over Temperature 0.01 dB/°C NOISE FIGURE 1.7 dB RETURN LOSS Input 25 dB Output 18 dB OUTPUT Output Power for 1 dB Compression P1dB 17 20 dBm Saturated Output Power PSAT 21 dBm Output Third-Order Intercept OIP3 34 dBm Measurement taken at POUT per tone = 6 dBm Output Second-Order Intercept OIP2 39 dBm Measurement taken at POUT per tone = 6 dBm POWER ADDED EFFICIENCY PAE 34 % Measured at PSAT SUPPLY CURRENT IDQ 55 mA SUPPLY VOLTAGE VDD 2 5 6 V Rev. B | Page 3 of 23 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications 0.01 GHz to 1 GHz Frequency Range 1 GHz to 6 GHz Frequency Range 6 GHz to 10 GHz Frequency Range Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Recommended Bias Sequencing During Power-Up During Power-Down Typical Application Circuit Evaluation Board Outline Dimensions Ordering Guide
