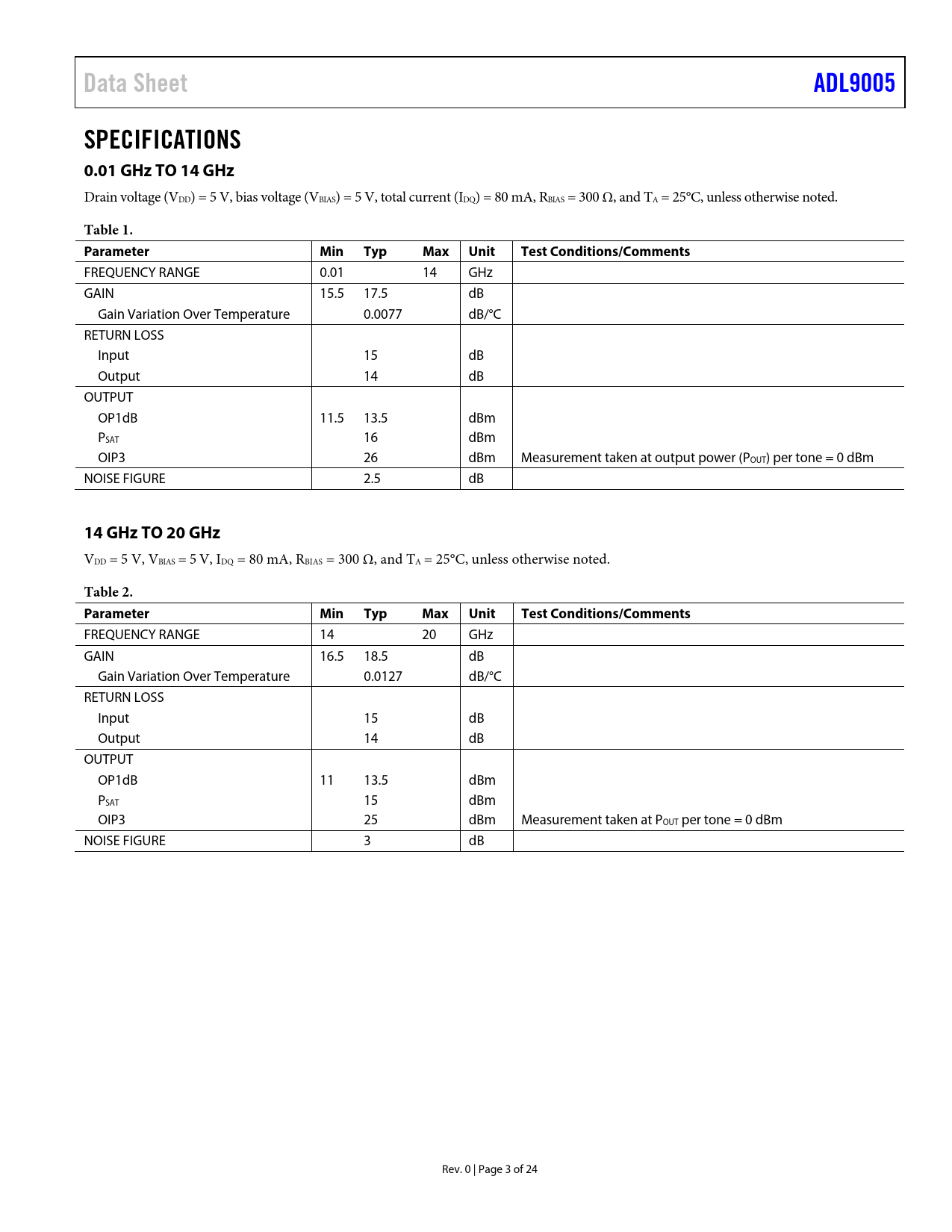

Data Sheet ADL9005 SPECIFICATIONS 0.01 GHz TO 14 GHz
Drain voltage (VDD) = 5 V, bias voltage (VBIAS) = 5 V, total current (IDQ) = 80 mA, RBIAS = 300 Ω, and TA = 25°C, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 0.01 14 GHz GAIN 15.5 17.5 dB Gain Variation Over Temperature 0.0077 dB/°C RETURN LOSS Input 15 dB Output 14 dB OUTPUT OP1dB 11.5 13.5 dBm PSAT 16 dBm OIP3 26 dBm Measurement taken at output power (POUT) per tone = 0 dBm NOISE FIGURE 2.5 dB
14 GHz TO 20 GHz
VDD = 5 V, VBIAS = 5 V, IDQ = 80 mA, RBIAS = 300 Ω, and TA = 25°C, unless otherwise noted.
Table 2. Parameter Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 14 20 GHz GAIN 16.5 18.5 dB Gain Variation Over Temperature 0.0127 dB/°C RETURN LOSS Input 15 dB Output 14 dB OUTPUT OP1dB 11 13.5 dBm PSAT 15 dBm OIP3 25 dBm Measurement taken at POUT per tone = 0 dBm NOISE FIGURE 3 dB Rev. 0 | Page 3 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 0.01 GHz TO 14 GHz 14 GHz TO 20 GHz 20 GHz TO 26.5 GHz DC SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADL9005 ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS BIASING THROUGH THE ACG4/VDD2 PIN THEORY OF OPERATION APPLICATIONS INFORMATION BASIC CONNECTIONS BIASING THE ADL9005 BY USING THE LTM8020 PROVIDING DRAIN BIAS PROVIDING DRAIN BIAS THROUGH THE ACG4/VDD2 PIN POWER-UP AND POWER-DOWN SEQUENCING OUTLINE DIMENSIONS ORDERING GUIDE
