HMC754S8GE
v01.1119

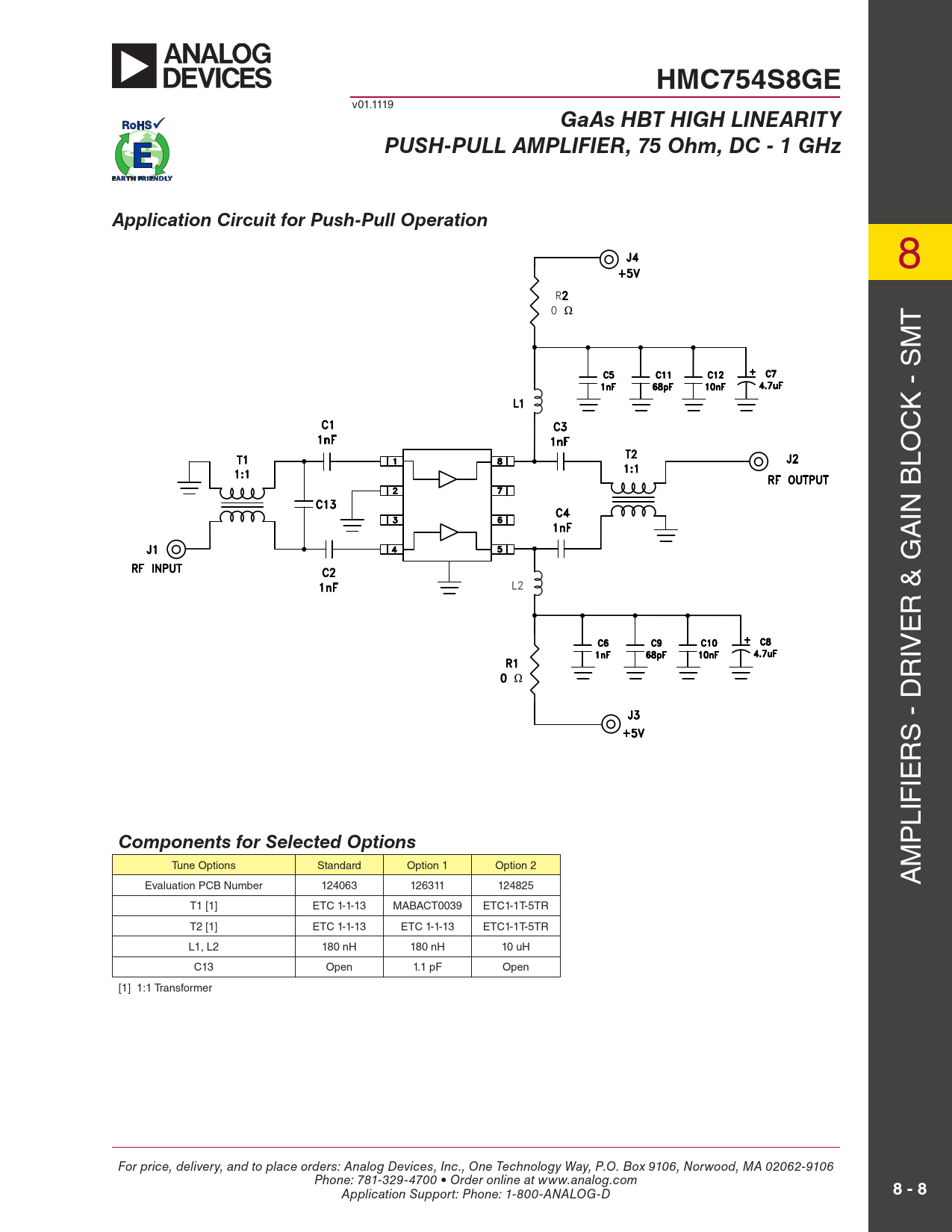

GaAs HBT HIGH LINEARITY PUSH-PULL AMPLIFIER, 75 Ohm, DC - 1 GHz Application Circuit for Push-Pull Operation
8 T M K - S C LO IN B A R & G E IV R S - D R IE LIF
Components for Selected Options
P Tune Options Standard Option 1 Option 2 M Evaluation PCB Number 124063 126311 124825 A T1 [1] ETC 1-1-13 MABACT0039 ETC1-1T-5TR T2 [1] ETC 1-1-13 ETC 1-1-13 ETC1-1T-5TR L1, L2 180 nH 180 nH 10 uH C13 Open 1.1 pF Open [1] 1:1 Transformer For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
