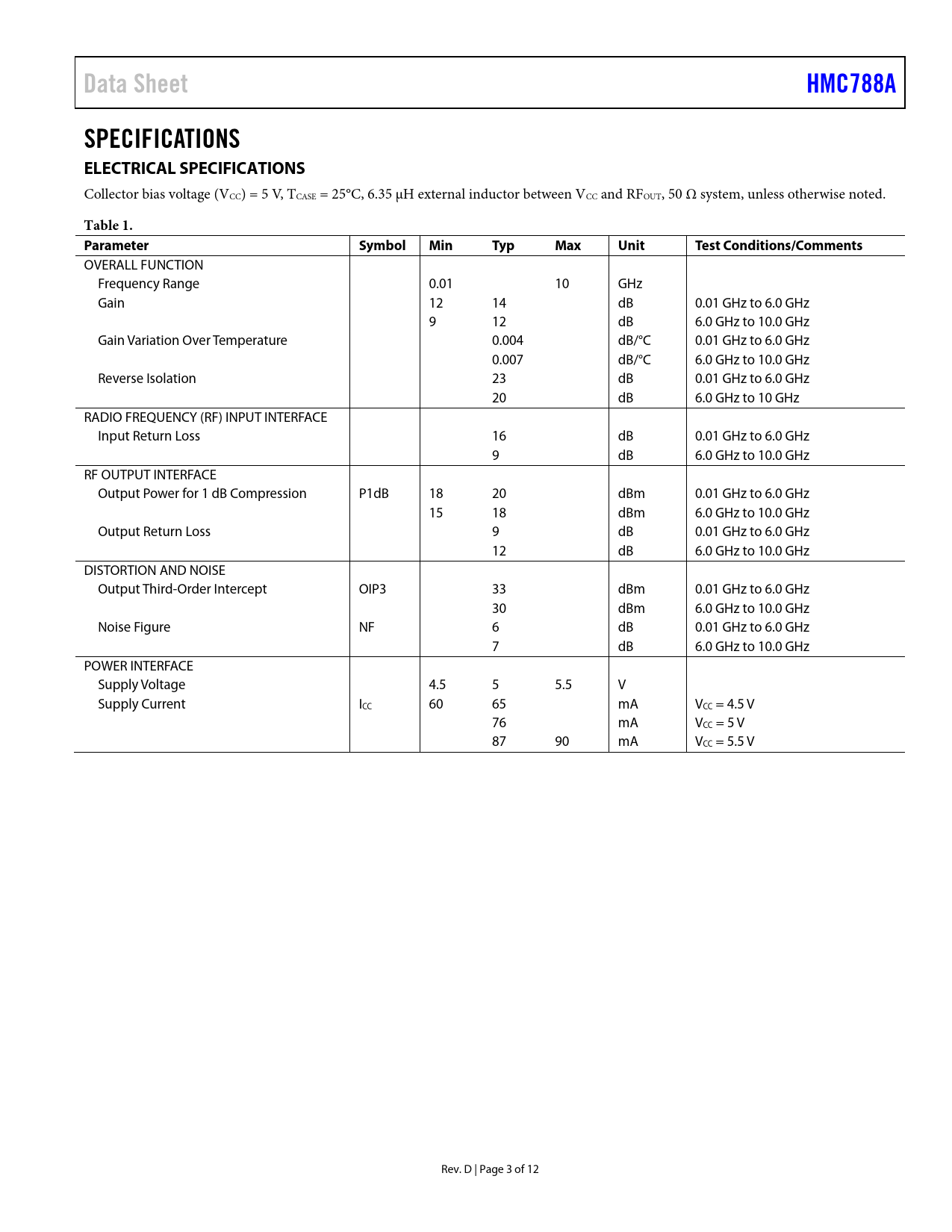

Data Sheet HMC788A SPECIFICATIONS ELECTRICAL SPECIFICATIONS
Collector bias voltage (VCC) = 5 V, TCASE = 25°C, 6.35 µH external inductor between VCC and RFOUT, 50 Ω system, unless otherwise noted.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
OVERALL FUNCTION Frequency Range 0.01 10 GHz Gain 12 14 dB 0.01 GHz to 6.0 GHz 9 12 dB 6.0 GHz to 10.0 GHz Gain Variation Over Temperature 0.004 dB/°C 0.01 GHz to 6.0 GHz 0.007 dB/°C 6.0 GHz to 10.0 GHz Reverse Isolation 23 dB 0.01 GHz to 6.0 GHz 20 dB 6.0 GHz to 10 GHz RADIO FREQUENCY (RF) INPUT INTERFACE Input Return Loss 16 dB 0.01 GHz to 6.0 GHz 9 dB 6.0 GHz to 10.0 GHz RF OUTPUT INTERFACE Output Power for 1 dB Compression P1dB 18 20 dBm 0.01 GHz to 6.0 GHz 15 18 dBm 6.0 GHz to 10.0 GHz Output Return Loss 9 dB 0.01 GHz to 6.0 GHz 12 dB 6.0 GHz to 10.0 GHz DISTORTION AND NOISE Output Third-Order Intercept OIP3 33 dBm 0.01 GHz to 6.0 GHz 30 dBm 6.0 GHz to 10.0 GHz Noise Figure NF 6 dB 0.01 GHz to 6.0 GHz 7 dB 6.0 GHz to 10.0 GHz POWER INTERFACE Supply Voltage 4.5 5 5.5 V Supply Current ICC 60 65 mA VCC = 4.5 V 76 mA VCC = 5 V 87 90 mA VCC = 5.5 V Rev. D | Page 3 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC CONNECTIONS APPLICATIONS INFORMATION EVALUATION PCB OUTLINE DIMENSIONS ORDERING GUIDE
