Datasheet ADCA3990 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | CATV Power Doubler Hybrid |
| Páginas / Página | 9 / 4 — ADCA3990. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. … |
| Formato / tamaño de archivo | PDF / 232 Kb |
| Idioma del documento | Inglés |
ADCA3990. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

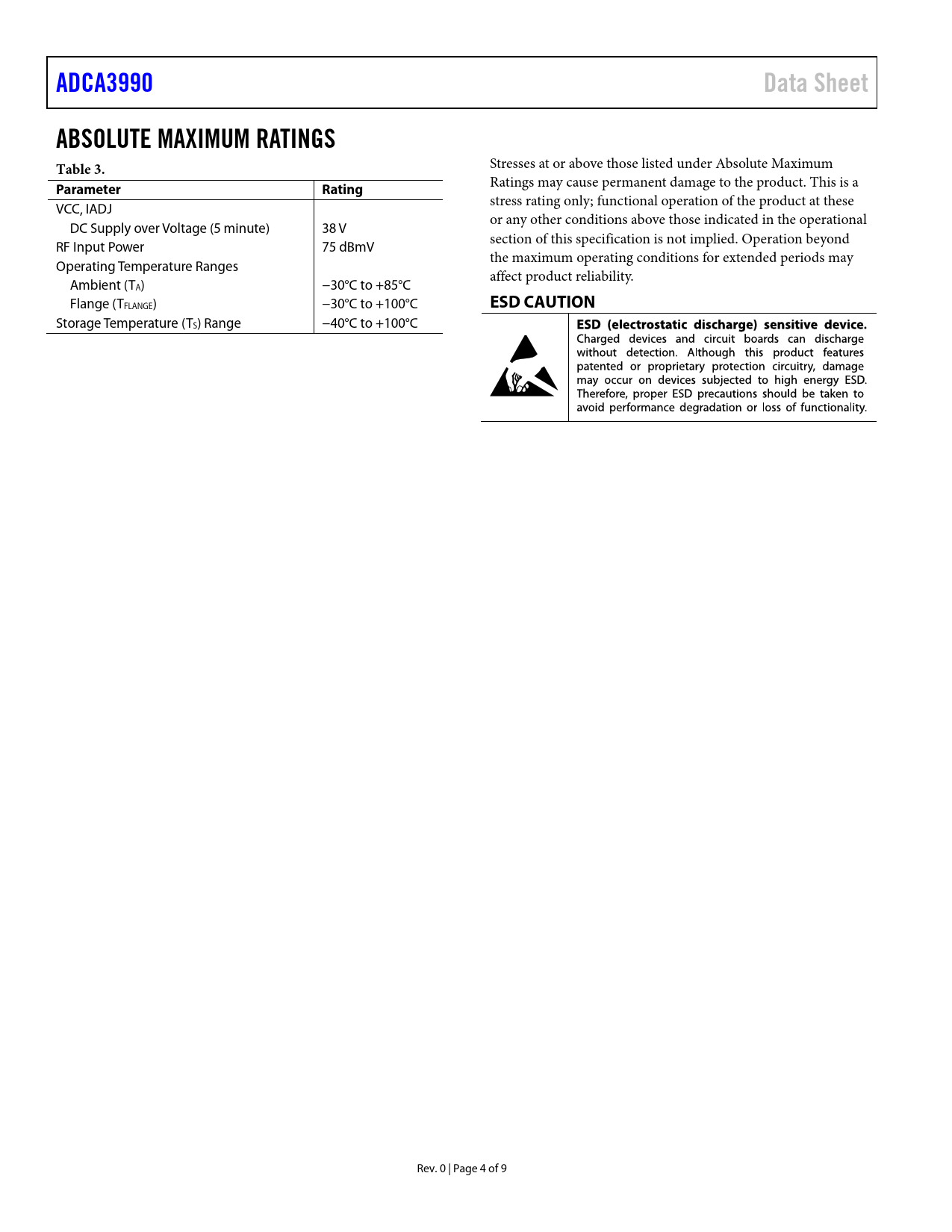

ADCA3990 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these VCC, IADJ or any other conditions above those indicated in the operational DC Supply over Voltage (5 minute) 38 V section of this specification is not implied. Operation beyond RF Input Power 75 dBmV the maximum operating conditions for extended periods may Operating Temperature Ranges affect product reliability. Ambient (TA) −30°C to +85°C Flange (TFLANGE) −30°C to +100°C
ESD CAUTION
Storage Temperature (TS) Range −40°C to +100°C Rev. 0 | Page 4 of 9 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS GENERAL PERFORMANCE DISTORTION DATA (40 MHz TO 550 MHz) ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
