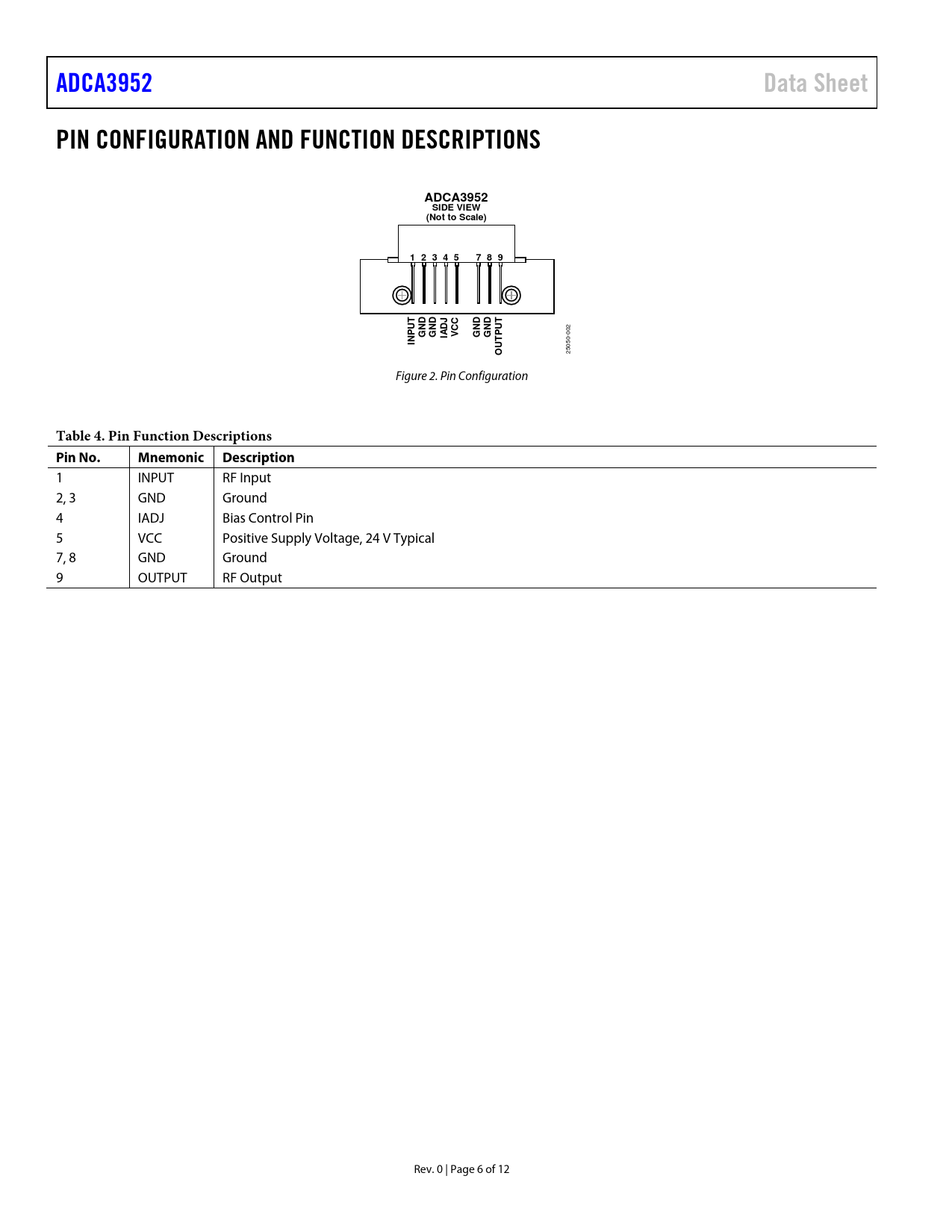

ADCA3952Data SheetPIN CONFIGURATION AND FUNCTION DESCRIPTIONSADCA3952SIDE VIEW(Not to Scale)1 2 3 4 57 8 9UTNDNDCCNDNDUTGIADJGVPGG 002 INPUT O 25050- Figure 2. Pin Configuration Table 4. Pin Function Descriptions Pin No.Mnemonic Description 1 INPUT RF Input 2, 3 GND Ground 4 IADJ Bias Control Pin 5 VCC Positive Supply Voltage, 24 V Typical 7, 8 GND Ground 9 OUTPUT RF Output Rev. 0 | Page 6 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS GENERAL PERFORMANCE DISTORTION DATA (40 MHz TO 550 MHz), ERROR RATES, AND TOTAL COMPOSITE POWER ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS S-PARAMETERS 9 dB TILT PERFORMANCE THEORY OF OPERATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
