Datasheet ADCA3950 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | DOCSIS 3.1 Power Doubler Hybrid Module, 45 MHz to 1218 MHz |
| Páginas / Página | 11 / 6 — ADCA3950. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. SIDE … |
| Formato / tamaño de archivo | PDF / 257 Kb |
| Idioma del documento | Inglés |

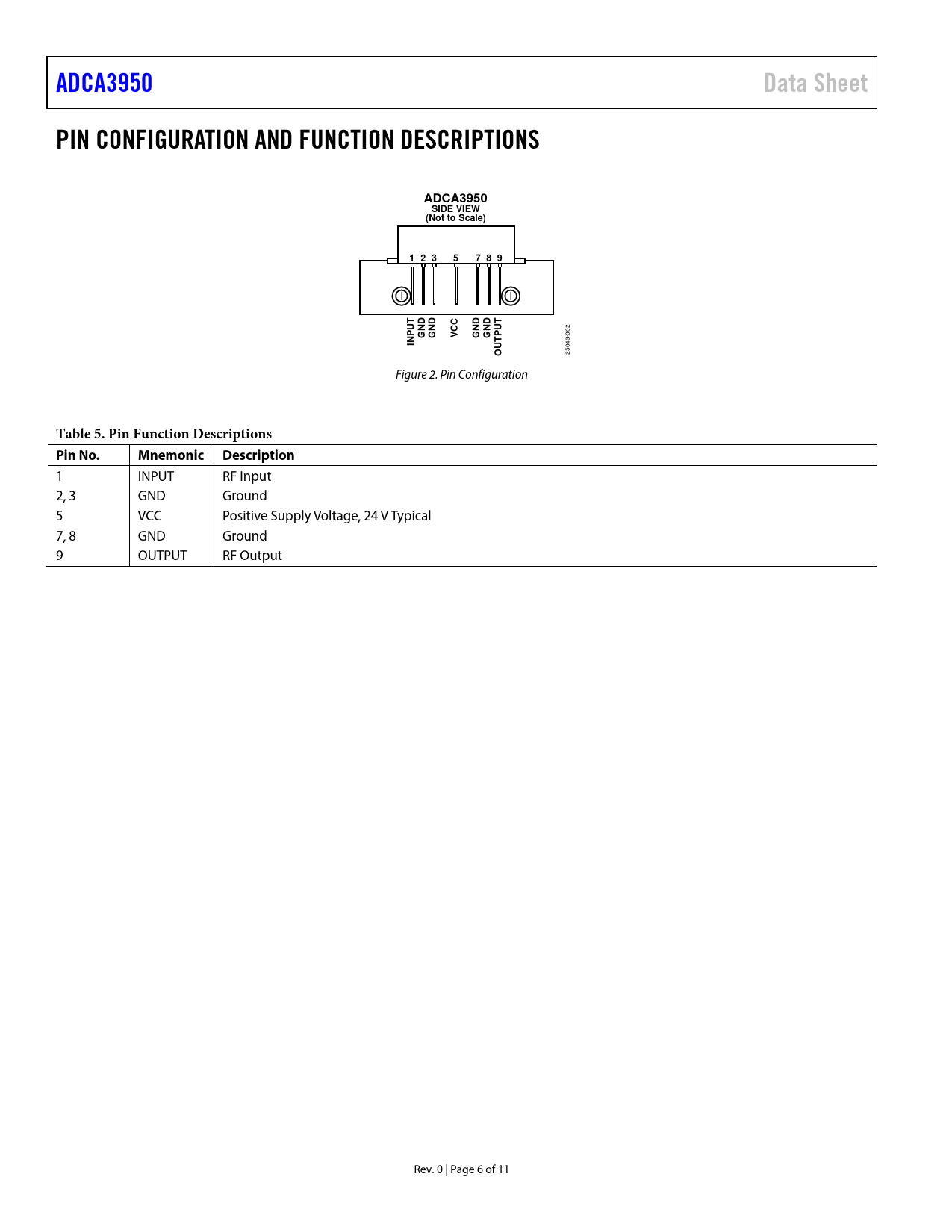

ADCA3950. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. SIDE VIEW. (Not to Scale). 1 2 3. 7 8 9. INP. UT O
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADCA3950 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADCA3950 SIDE VIEW (Not to Scale) 1 2 3 5 7 8 9 UT ND ND CC ND ND UT G G V P G G
002
INP UT O
25049- Figure 2. Pin Configuration
Table 5. Pin Function Descriptions Pin No. Mnemonic Description
1 INPUT RF Input 2, 3 GND Ground 5 VCC Positive Supply Voltage, 24 V Typical 7, 8 GND Ground 9 OUTPUT RF Output Rev. 0 | Page 6 of 11 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS GENERAL PERFORMANCE DISTORTION DATA (ALL DIGITAL CHANNEL PLAN) DISTORTION DATA (MIXED SIGNAL CHANNEL PLAN) ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS S-PARAMETERS 18 dB TILT PERFORMANCE THEORY OF OPERATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
