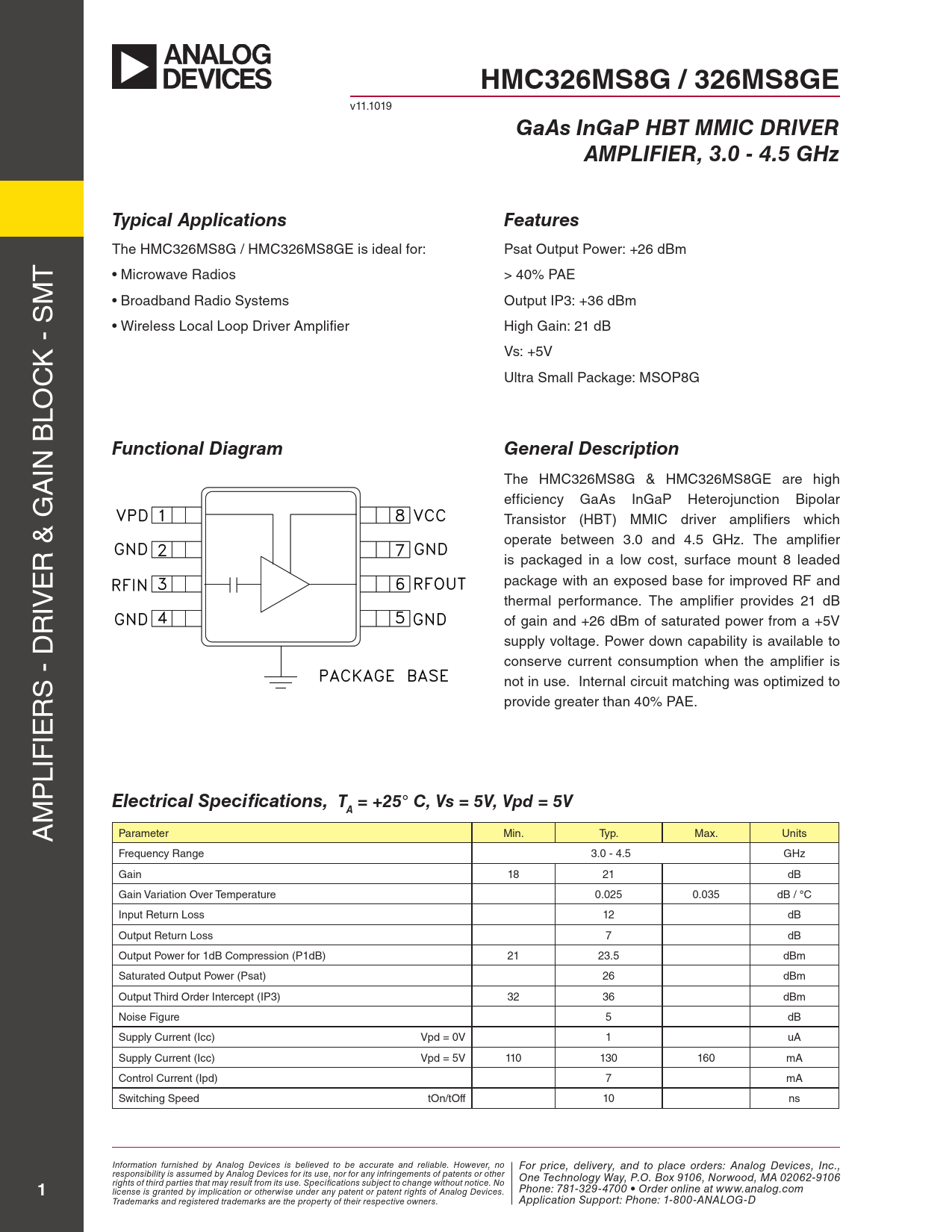

HMC326MS8G / 326MS8GE
v11.1019
GaAs InGaP HBT MMIC DRIVER AMPLIFIER, 3.0 - 4.5 GHz Typical Applications Features
The HMC326MS8G / HMC326MS8GE is ideal for: Psat Output Power: +26 dBm T • Microwave Radios > 40% PAE M • Broadband Radio Systems Output IP3: +36 dBm • Wireless Local Loop Driver Amplifier High Gain: 21 dB K - S Vs: +5V C Ultra Small Package: MSOP8G LO
Functional Diagram General Description
IN B A The HMC326MS8G & HMC326MS8GE are high efficiency GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC driver amplifiers which operate between 3.0 and 4.5 GHz. The amplifier R & G is packaged in a low cost, surface mount 8 leaded E package with an exposed base for improved RF and IV thermal performance. The amplifier provides 21 dB R of gain and +26 dBm of saturated power from a +5V supply voltage. Power down capability is available to conserve current consumption when the amplifier is S - D not in use. Internal circuit matching was optimized to R provide greater than 40% PAE. IE LIF P M
Electrical Specifications, T = +25° C, Vs = 5V, Vpd = 5V A
A Parameter Min. Typ. Max. Units Frequency Range 3.0 - 4.5 GHz Gain 18 21 dB Gain Variation Over Temperature 0.025 0.035 dB /
°
C Input Return Loss 12 dB Output Return Loss 7 dB Output Power for 1dB Compression (P1dB) 21 23.5 dBm Saturated Output Power (Psat) 26 dBm Output Third Order Intercept (IP3) 32 36 dBm Noise Figure 5 dB Supply Current (Icc) Vpd = 0V 1 uA Supply Current (Icc) Vpd = 5V 110 130 160 mA Control Current (Ipd) 7 mA Switching Speed tOn/tOff 10 ns Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D Document Outline Typical Applications Features Functional Diagram General Description Electrical Specifications Performanc Characteristics Broadband Gain & Return Loss Gain vs. Temperature P1dB vs. Temperature Psat vs. Temperature Output IP3 vs. Temperature Power Compression @ 3.5 GHz Input Return Loss vs. Temperature Output Return Loss vs. Temperature Reverse Isolation vs. Temperature Noise Figure vs. Temperature Gain, Power & Quiescent Supply Current vs. Vpd @3.5 GHz Absolute Maximum Ratings Outline Drawing Package Information Evaluation PCB List of Materials for Evaluation PCB 104356 Application Circuit
