HMC441LH5. GaAs PHEMT MMIC MEDIUM. POWER AMPLIFIER, 7 - 15.5 GHz. Absolute Maximum Ratings. Typical Supply Current vs. Vdd
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC441LH5
v03.1017

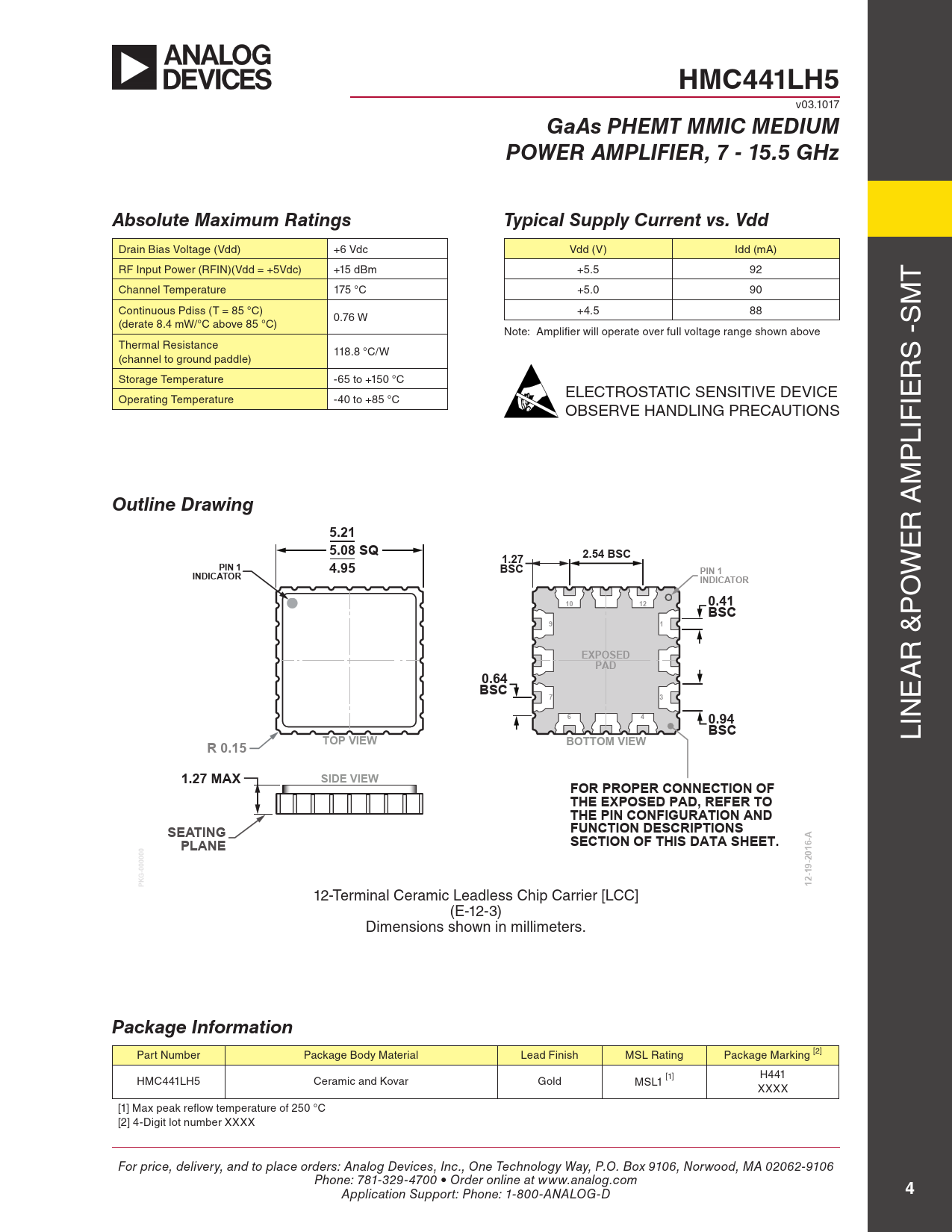

GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 7 - 15.5 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd) +6 Vdc Vdd (V) Idd (mA) RF Input Power (RFIN)(Vdd = +5Vdc) +15 dBm +5.5 92 T Channel Temperature 175 °C +5.0 90 M Continuous Pdiss (T = 85 °C) +4.5 88 0.76 W (derate 8.4 mW/°C above 85 °C) S Note: Amplifier will operate over full voltage range shown above Thermal Resistance 118.8 °C/W (channel to ground paddle) S - Storage Temperature -65 to +150 °C R ELECTROSTATIC SENSITIVE DEVICE Operating Temperature -40 to +85 °C IE OBSERVE HANDLING PRECAUTIONS
12-Terminal Ceramic Leadless Chip Carrier [LCC] (E-12-3)
LIF
Dimensions shown in millimeters.
P M
Outline Drawing
R A
5.21
E
5.08 SQ 2.54 BSC 1.27 PIN 1 4.95 BSC INDICATOR PIN 1
W
INDICATOR
O
10 12 0.41 BSC
P
9 1 EXPOSED
R &
PAD 0.64
A
BSC 7 3
E
6 4 0.94 BSC TOP VIEW BOTTOM VIEW
LIN
R 0.15 1.27 MAX SIDE VIEW FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND SEATING FUNCTION DESCRIPTIONS PLANE SECTION OF THIS DATA SHEET. PKG-000000 12-19-2016-A
12-Terminal Ceramic Leadless Chip Carrier [LCC] (E-12-3) Dimensions shown in mil imeters.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC441LH5 Ceramic and Kovar Gold MSL1 [1] H441 XXXX [1] Max peak reflow temperature of 250 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
