HMC442LM1
v01.0807

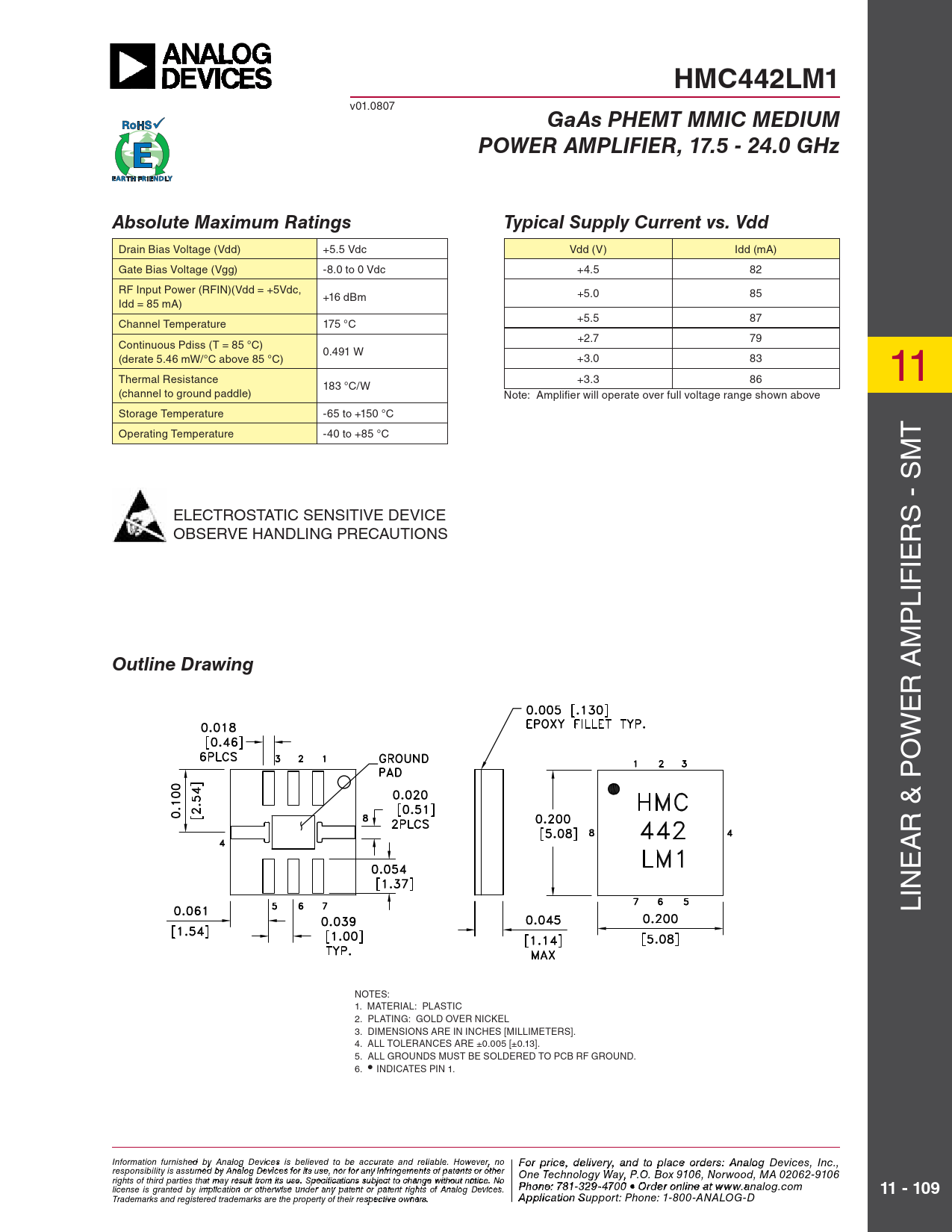

GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 17.5 - 24.0 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd) +5.5 Vdc Vdd (V) Idd (mA) Gate Bias Voltage (Vgg) -8.0 to 0 Vdc +4.5 82 RF Input Power (RFIN)(Vdd = +5Vdc, +16 dBm +5.0 85 Idd = 85 mA) +5.5 87 Channel Temperature 175 °C +2.7 79 Continuous Pdiss (T = 85 °C) 0.491 W (derate 5.46 mW/°C above 85 °C) +3.0 83 Thermal Resistance +3.3 86 11 183 °C/W (channel to ground paddle) Note: Amplifi er will operate over full voltage range shown above Storage Temperature -65 to +150 °C Operating Temperature -40 to +85 °C T - SM ELECTROSTATIC SENSITIVE DEVICE S OBSERVE HANDLING PRECAUTIONS R IE IF L P M
Outline Drawing
R A E W O & P R A E IN L NOTES: 1. MATERIAL: PLASTIC 2. PLATING: GOLD OVER NICKEL 3. DIMENSIONS ARE IN INCHES [MILLIMETERS]. 4. ALL TOLERANCES ARE ±0.005 [±0.13]. 5. ALL GROUNDS MUST BE SOLDERED TO PCB RF GROUND. 6. • INDICATES PIN 1. Information furnish F e o d r pri by An ce, de alog Devic leis vie s rby eli, a eve nd to pla d to be accur ce o ate an r d der relia s ble , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone rights of third parties that may result from its use. Specifications subject to change without notice. No : 978 Pho - n 25 e: 7 0- 81 3 3 3 2 4 9- 3 F 470 ax: 978 0 • Order o - n 25 lin 0 e a-t 3373 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
11 - 109
Order On- Trademarks and registered trademarks are the property of their respective owners. line at www.hi A tptipte.co licatio m n Support: Phone: 1-800-ANALOG-D
