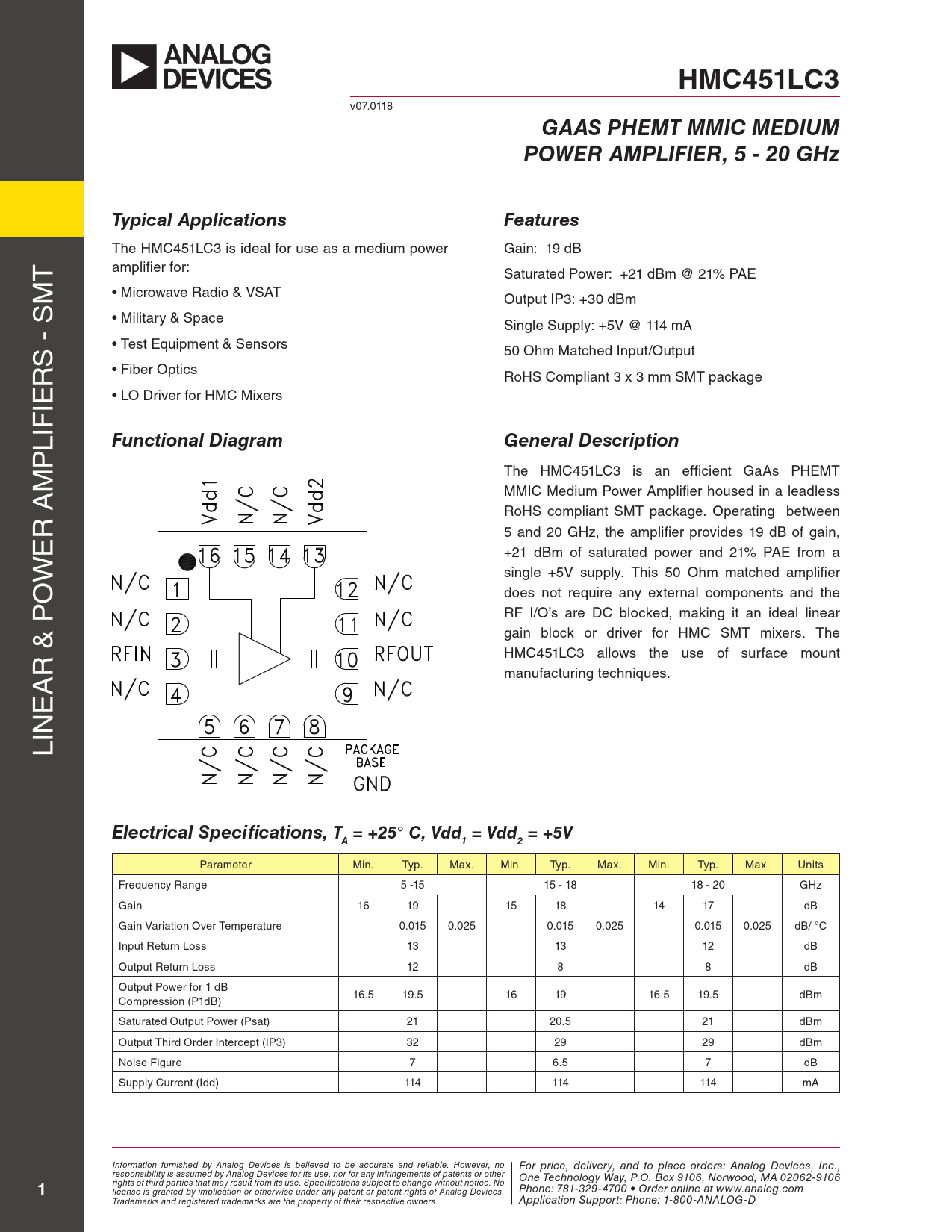

HMC451LC3. Gaas PHEMT MMIC MEDIUM. POWER aMPLIFIER, 5 - 20 GHz. Typical applications. Features. Functional Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC451LC3
v07.0118
Gaas PHEMT MMIC MEDIUM POWER aMPLIFIER, 5 - 20 GHz Typical applications Features
The HMC451LC3 is ideal for use as a medium power Gain: 19 dB T amplifier for: Saturated Power: +21 dBm @ 21% PAE M • Microwave Radio & VSAT Output IP3: +30 dBm • Military & Space Single Supply: +5V @ 114 mA S - S • Test Equipment & Sensors 50 Ohm Matched Input/Output R • Fiber Optics RoHS Compliant 3 x 3 mm SMT package IE • LO Driver for HMC Mixers LIF
Functional Diagram General Description
P M The HMC451LC3 is an efficient GaAs PHEMT MMIC Medium Power Amplifier housed in a leadless RoHS compliant SMT package. Operating between R A E 5 and 20 GHz, the amplifier provides 19 dB of gain, +21 dBm of saturated power and 21% PAE from a W single +5V supply. This 50 Ohm matched amplifier O does not require any external components and the RF I/O’s are DC blocked, making it an ideal linear gain block or driver for HMC SMT mixers. The R & P HMC451LC3 al ows the use of surface mount A manufacturing techniques. E LIN
Electrical specifications, T = +25° C, Vdd = Vdd = +5V a 1 2
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 5 -15 15 - 18 18 - 20 GHz Gain 16 19 15 18 14 17 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 0.015 0.025 dB/ °C Input Return Loss 13 13 12 dB Output Return Loss 12 8 8 dB Output Power for 1 dB 16.5 19.5 16 19 16.5 19.5 dBm Compression (P1dB) Saturated Output Power (Psat) 21 20.5 21 dBm Output Third Order Intercept (IP3) 32 29 29 dBm Noise Figure 7 6.5 7 dB Supply Current (Idd) 114 114 114 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
v07.0118
Gaas PHEMT MMIC MEDIUM POWER aMPLIFIER, 5 - 20 GHz Typical applications Features
The HMC451LC3 is ideal for use as a medium power Gain: 19 dB T amplifier for: Saturated Power: +21 dBm @ 21% PAE M • Microwave Radio & VSAT Output IP3: +30 dBm • Military & Space Single Supply: +5V @ 114 mA S - S • Test Equipment & Sensors 50 Ohm Matched Input/Output R • Fiber Optics RoHS Compliant 3 x 3 mm SMT package IE • LO Driver for HMC Mixers LIF
Functional Diagram General Description
P M The HMC451LC3 is an efficient GaAs PHEMT MMIC Medium Power Amplifier housed in a leadless RoHS compliant SMT package. Operating between R A E 5 and 20 GHz, the amplifier provides 19 dB of gain, +21 dBm of saturated power and 21% PAE from a W single +5V supply. This 50 Ohm matched amplifier O does not require any external components and the RF I/O’s are DC blocked, making it an ideal linear gain block or driver for HMC SMT mixers. The R & P HMC451LC3 al ows the use of surface mount A manufacturing techniques. E LIN
Electrical specifications, T = +25° C, Vdd = Vdd = +5V a 1 2
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 5 -15 15 - 18 18 - 20 GHz Gain 16 19 15 18 14 17 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 0.015 0.025 dB/ °C Input Return Loss 13 13 12 dB Output Return Loss 12 8 8 dB Output Power for 1 dB 16.5 19.5 16 19 16.5 19.5 dBm Compression (P1dB) Saturated Output Power (Psat) 21 20.5 21 dBm Output Third Order Intercept (IP3) 32 29 29 dBm Noise Figure 7 6.5 7 dB Supply Current (Idd) 114 114 114 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
