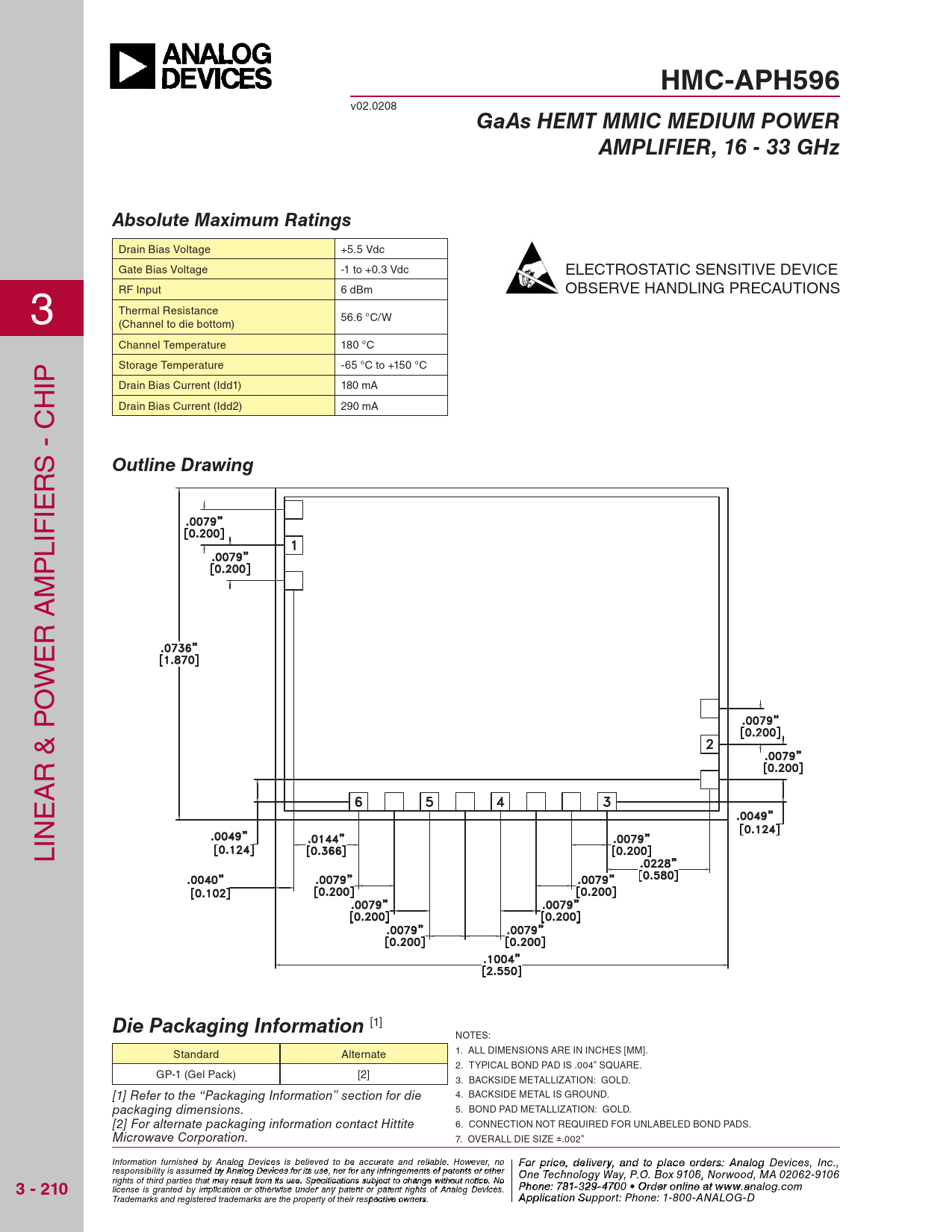

Datasheet HMC-APH596 (Analog Devices) - 3

HMC-APH596
v02.0208
GaAs HEMT MMIC MEDIUM POWER AMPLIFIER, 16 - 33 GHz Absolute Maximum Ratings
Drain Bias Voltage +5.5 Vdc Gate Bias Voltage -1 to +0.3 Vdc ELECTROSTATIC SENSITIVE DEVICE RF Input 6 dBm OBSERVE HANDLING PRECAUTIONS 3 Thermal Resistance 56.6 °C/W (Channel to die bottom) Channel Temperature 180 °C Storage Temperature -65 °C to +150 °C IP Drain Bias Current (Idd1) 180 mA H Drain Bias Current (Idd2) 290 mA S - C
Outline Drawing
R IE IF L P M R A E W O R & P A E IN L
Die Packaging Information
[1] NOTES: 1. ALL DIMENSIONS ARE IN INCHES [MM]. Standard Alternate 2. TYPICAL BOND PAD IS .004” SQUARE. GP-1 (Gel Pack) [2] 3. BACKSIDE METALLIZATION: GOLD. 4. BACKSIDE METAL IS GROUND. [1] Refer to the “Packaging Information” section for die packaging dimensions. 5. BOND PAD METALLIZATION: GOLD. [2] For alternate packaging information contact Hittite 6. CONNECTION NOT REQUIRED FOR UNLABELED BOND PADS. Microwave Corporation. 7. OVERALL DIE SIZE ±.002” Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
3 - 210
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon - e 25 : 7 0 81--3 32 3 9 4 - 3 F 70 ax 0 • O : 978 rder on -li25 n 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.h A it p tpite.co licatio m n Support: Phone: 1-800-ANALOG-D
