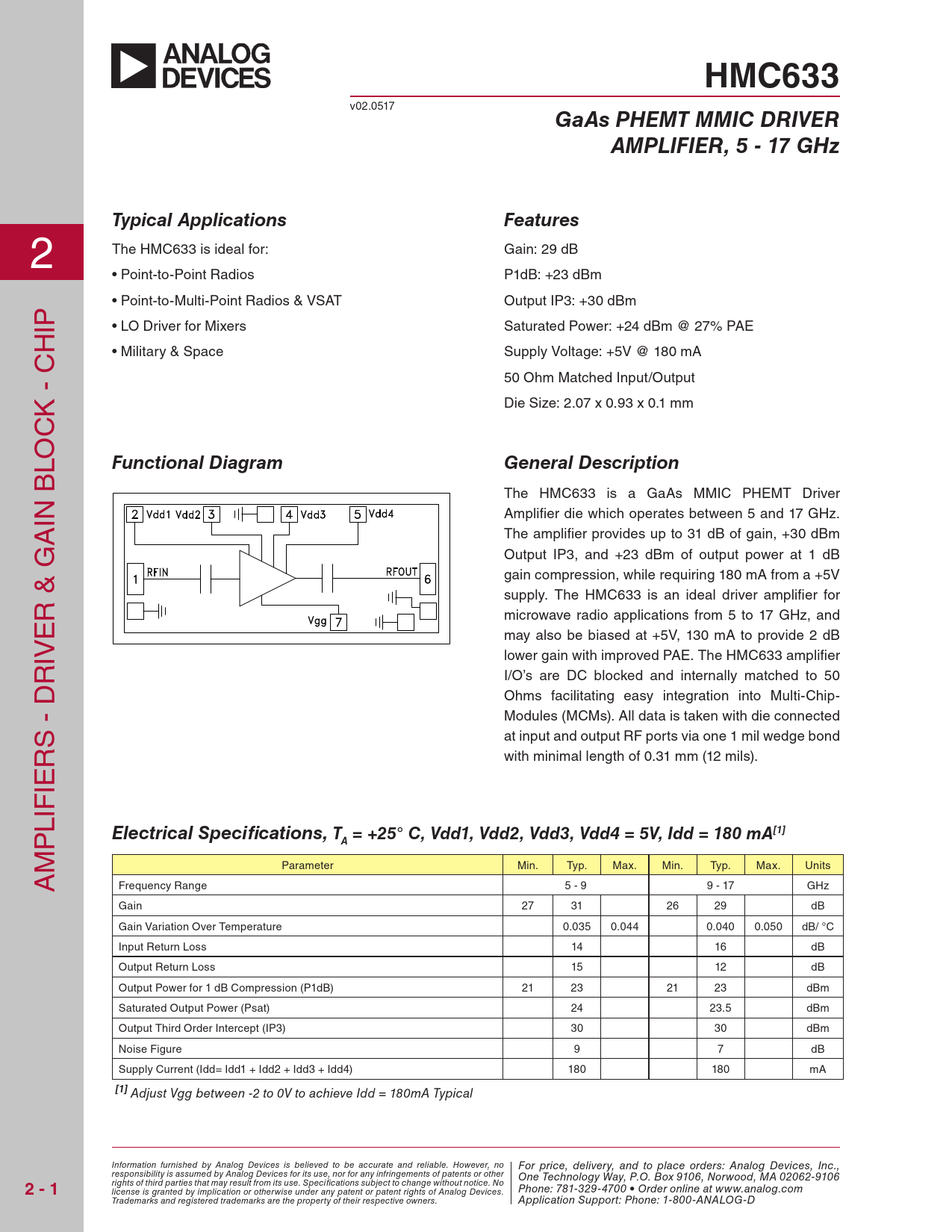

HMC633
v02.0517
GaAs PHEMT MMIC DRIVER AMPLIFIER, 5 - 17 GHz Typical Applications Features
2 The HMC633 is ideal for: Gain: 29 dB • Point-to-Point Radios P1dB: +23 dBm • Point-to-Multi-Point Radios & VSAT Output IP3: +30 dBm IP • LO Driver for Mixers Saturated Power: +24 dBm @ 27% PAE H • Military & Space Supply Voltage: +5V @ 180 mA 50 Ohm Matched Input/Output K - C Die Size: 2.07 x 0.93 x 0.1 mm C LO
Functional Diagram General Description
The HMC633 is a GaAs MMIC PHEMT Driver IN B Amplifier die which operates between 5 and 17 GHz. A The amplifier provides up to 31 dB of gain, +30 dBm Output IP3, and +23 dBm of output power at 1 dB gain compression, while requiring 180 mA from a +5V supply. The HMC633 is an ideal driver amplifier for R & G E microwave radio applications from 5 to 17 GHz, and may also be biased at +5V, 130 mA to provide 2 dB IV lower gain with improved PAE. The HMC633 amplifier R I/O’s are DC blocked and internal y matched to 50 Ohms facilitating easy integration into Multi-Chip- Modules (MCMs). All data is taken with die connected S - D at input and output RF ports via one 1 mil wedge bond R with minimal length of 0.31 mm (12 mils). IE LIF P
Electrical Specifications, T = +25° C, Vdd1, Vdd2, Vdd3, Vdd4 = 5V, Idd = 180 mA[1] A
M Parameter Min. Typ. Max. Min. Typ. Max. Units A Frequency Range 5 - 9 9 - 17 GHz Gain 27 31 26 29 dB Gain Variation Over Temperature 0.035 0.044 0.040 0.050 dB/ °C Input Return Loss 14 16 dB Output Return Loss 15 12 dB Output Power for 1 dB Compression (P1dB) 21 23 21 23 dBm Saturated Output Power (Psat) 24 23.5 dBm Output Third Order Intercept (IP3) 30 30 dBm Noise Figure 9 7 dB Supply Current (Idd= Idd1 + Idd2 + Idd3 + Idd4) 180 180 mA
[1]
Adjust Vgg between -2 to 0V to achieve Idd = 180mA Typical In F fo o r r p mati r o ic n f e ur, d nis e heliv d e b r y y A , a nal n o d t g D o p evicela s ice o s beli red v e e r d s t : A o b n e a aclo cu g D rate e a v n ic d r e elisa, I blen . c H .o, O wev n ere T , n e o ch Fn o olo r p g ri y W ce a , d y el , P ive .rO y . B , an ox 9 d t 1 o p0 l 6 ac, No e or rdw erosod : A, M nal A 0 o 2 g D 0 ev6i2 c - e 9 s 1 , I0 n 6 c., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
