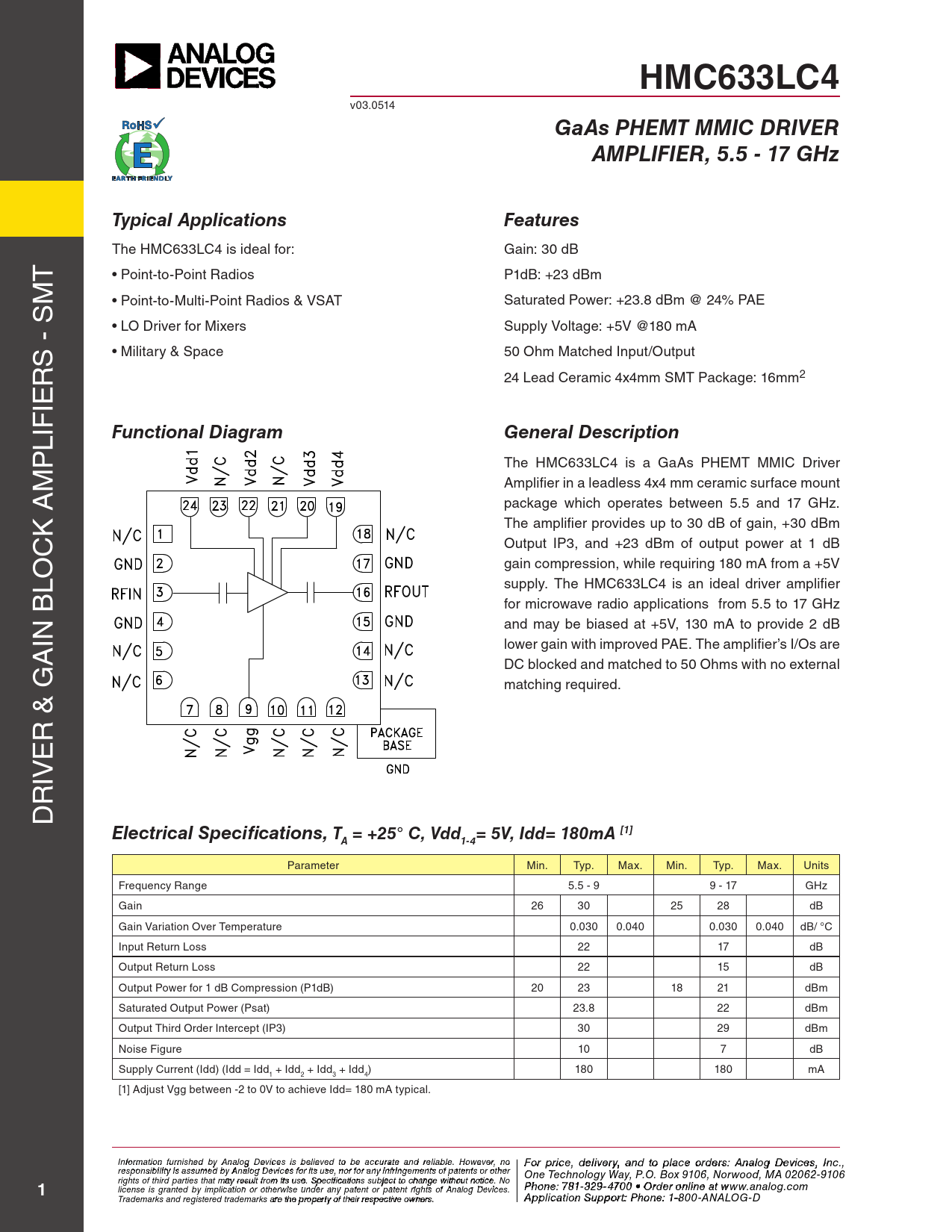

HMC633LC4. GaAs PHEMT MMIC DRIVER. AMPLIFIER, 5.5 - 17 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC633LC4
v03.0514
GaAs PHEMT MMIC DRIVER AMPLIFIER, 5.5 - 17 GHz Typical Applications Features
The HMC633LC4 is ideal for: Gain: 30 dB T • Point-to-Point Radios P1dB: +23 dBm M • Point-to-Multi-Point Radios & VSAT Saturated Power: +23.8 dBm @ 24% PAE • LO Driver for Mixers Supply Voltage: +5V @180 mA S - S • Military & Space 50 Ohm Matched Input/Output R 24 Lead Ceramic 4x4mm SMT Package: 16mm2 IE LIF
Functional Diagram General Description
P The HMC633LC4 is a GaAs PHEMT MMIC Driver M Amplifier in a leadless 4x4 mm ceramic surface mount package which operates between 5.5 and 17 GHz. K A The amplifier provides up to 30 dB of gain, +30 dBm C Output IP3, and +23 dBm of output power at 1 dB gain compression, while requiring 180 mA from a +5V LO supply. The HMC633LC4 is an ideal driver amplifier for microwave radio applications from 5.5 to 17 GHz IN B and may be biased at +5V, 130 mA to provide 2 dB A lower gain with improved PAE. The amplifier’s I/Os are DC blocked and matched to 50 Ohms with no external matching required. R & G E IV R D
Electrical Specifications, T = +25° C, Vdd = 5V, Idd= 180mA [1] A 1-4
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 5.5 - 9 9 - 17 GHz Gain 26 30 25 28 dB Gain Variation Over Temperature 0.030 0.040 0.030 0.040 dB/ °C Input Return Loss 22 17 dB Output Return Loss 22 15 dB Output Power for 1 dB Compression (P1dB) 20 23 18 21 dBm Saturated Output Power (Psat) 23.8 22 dBm Output Third Order Intercept (IP3) 30 29 dBm Noise Figure 10 7 dB Supply Current (Idd) (Idd = Idd + Idd + Idd + Idd ) 180 180 mA 1 2 3 4 [1] Adjust Vgg between -2 to 0V to achieve Idd= 180 mA typical. I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m
