Datasheet HMC1082LP4E (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs pHEMT MMIC MEDIUM POWER AMPLIFIER, 5.5 -18 GHz |
| Páginas / Página | 10 / 1 — HMC1082LP4E. GaAs pHEMT MMIC MEDIUM. POWER AMPLIFIER, 5.5 - 18 GHz. … |
| Formato / tamaño de archivo | PDF / 865 Kb |
| Idioma del documento | Inglés |

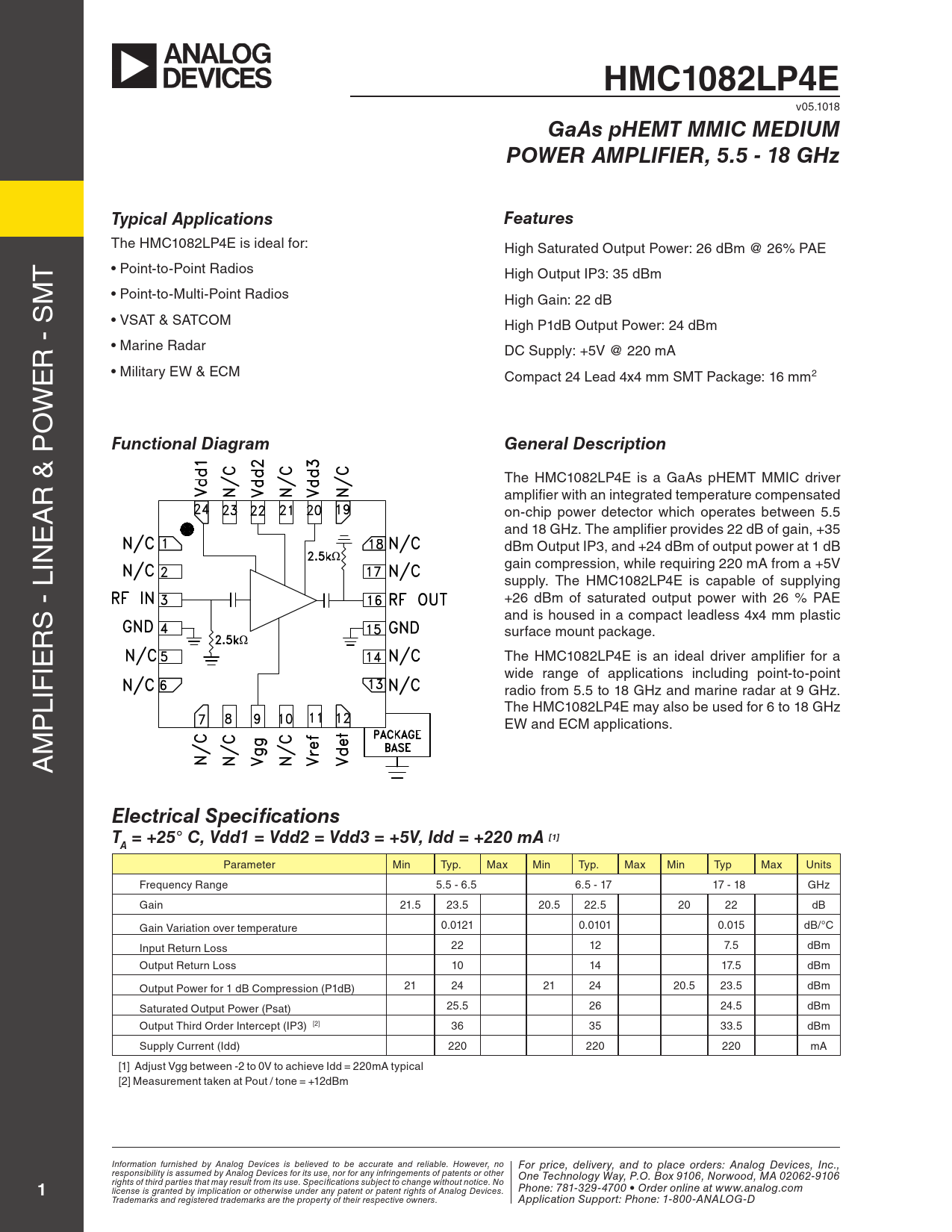

HMC1082LP4E. GaAs pHEMT MMIC MEDIUM. POWER AMPLIFIER, 5.5 - 18 GHz. Typical Applications. Features. Functional Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC1082LP4E
v05.1018
GaAs pHEMT MMIC MEDIUM POWER AMPLIFIER, 5.5 - 18 GHz Typical Applications Features
The HMC1082LP4E is ideal for: High Saturated Output Power: 26 dBm @ 26% PAE T • Point-to-Point Radios High Output IP3: 35 dBm M • Point-to-Multi-Point Radios High Gain: 22 dB • VSAT & SATCOM High P1dB Output Power: 24 dBm R - S • Marine Radar DC Supply: +5V @ 220 mA E • Military EW & ECM Compact 24 Lead 4x4 mm SMT Package: 16 mm2 W O
Functional Diagram General Description
The HMC1082LP4E is a GaAs pHEMT MMIC driver R & P amplifier with an integrated temperature compensated A on-chip power detector which operates between 5.5 E and 18 GHz. The amplifier provides 22 dB of gain, +35 IN dBm Output IP3, and +24 dBm of output power at 1 dB gain compression, while requiring 220 mA from a +5V supply. The HMC1082LP4E is capable of supplying +26 dBm of saturated output power with 26 % PAE S - L and is housed in a compact leadless 4x4 mm plastic R surface mount package. IE The HMC1082LP4E is an ideal driver amplifier for a wide range of applications including point-to-point LIF radio from 5.5 to 18 GHz and marine radar at 9 GHz. P The HMC1082LP4E may also be used for 6 to 18 GHz EW and ECM applications. M A
Electrical Specifications T = +25° C, Vdd1 = Vdd2 = Vdd3 = +5V, Idd = +220 mA [1] A
Parameter Min Typ. Max Min Typ. Max Min Typ Max Units Frequency Range 5.5 - 6.5 6.5 - 17 17 - 18 GHz Gain 21.5 23.5 20.5 22.5 20 22 dB Gain Variation over temperature 0.0121 0.0101 0.015 dB/°C Input Return Loss 22 12 7.5 dBm Output Return Loss 10 14 17.5 dBm Output Power for 1 dB Compression (P1dB) 21 24 21 24 20.5 23.5 dBm Saturated Output Power (Psat) 25.5 26 24.5 dBm Output Third Order Intercept (IP3) [2] 36 35 33.5 dBm Supply Current (Idd) 220 220 220 mA [1] Adjust Vgg between -2 to 0V to achieve Idd = 220mA typical [2] Measurement taken at Pout / tone = +12dBm Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
v05.1018
GaAs pHEMT MMIC MEDIUM POWER AMPLIFIER, 5.5 - 18 GHz Typical Applications Features
The HMC1082LP4E is ideal for: High Saturated Output Power: 26 dBm @ 26% PAE T • Point-to-Point Radios High Output IP3: 35 dBm M • Point-to-Multi-Point Radios High Gain: 22 dB • VSAT & SATCOM High P1dB Output Power: 24 dBm R - S • Marine Radar DC Supply: +5V @ 220 mA E • Military EW & ECM Compact 24 Lead 4x4 mm SMT Package: 16 mm2 W O
Functional Diagram General Description
The HMC1082LP4E is a GaAs pHEMT MMIC driver R & P amplifier with an integrated temperature compensated A on-chip power detector which operates between 5.5 E and 18 GHz. The amplifier provides 22 dB of gain, +35 IN dBm Output IP3, and +24 dBm of output power at 1 dB gain compression, while requiring 220 mA from a +5V supply. The HMC1082LP4E is capable of supplying +26 dBm of saturated output power with 26 % PAE S - L and is housed in a compact leadless 4x4 mm plastic R surface mount package. IE The HMC1082LP4E is an ideal driver amplifier for a wide range of applications including point-to-point LIF radio from 5.5 to 18 GHz and marine radar at 9 GHz. P The HMC1082LP4E may also be used for 6 to 18 GHz EW and ECM applications. M A
Electrical Specifications T = +25° C, Vdd1 = Vdd2 = Vdd3 = +5V, Idd = +220 mA [1] A
Parameter Min Typ. Max Min Typ. Max Min Typ Max Units Frequency Range 5.5 - 6.5 6.5 - 17 17 - 18 GHz Gain 21.5 23.5 20.5 22.5 20 22 dB Gain Variation over temperature 0.0121 0.0101 0.015 dB/°C Input Return Loss 22 12 7.5 dBm Output Return Loss 10 14 17.5 dBm Output Power for 1 dB Compression (P1dB) 21 24 21 24 20.5 23.5 dBm Saturated Output Power (Psat) 25.5 26 24.5 dBm Output Third Order Intercept (IP3) [2] 36 35 33.5 dBm Supply Current (Idd) 220 220 220 mA [1] Adjust Vgg between -2 to 0V to achieve Idd = 220mA typical [2] Measurement taken at Pout / tone = +12dBm Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
