Datasheet ADL8150 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs, HBT, MMIC, Low Phase Noise Amplifier, 6 GHz to 14 GHz |
| Páginas / Página | 15 / 1 — GaAs, HBT, MMIC, Low Phase Noise. Amplifier, 6 GHz to 14 GHz. Data Sheet. … |
| Formato / tamaño de archivo | PDF / 251 Kb |
| Idioma del documento | Inglés |
GaAs, HBT, MMIC, Low Phase Noise. Amplifier, 6 GHz to 14 GHz. Data Sheet. ADL8150. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 15

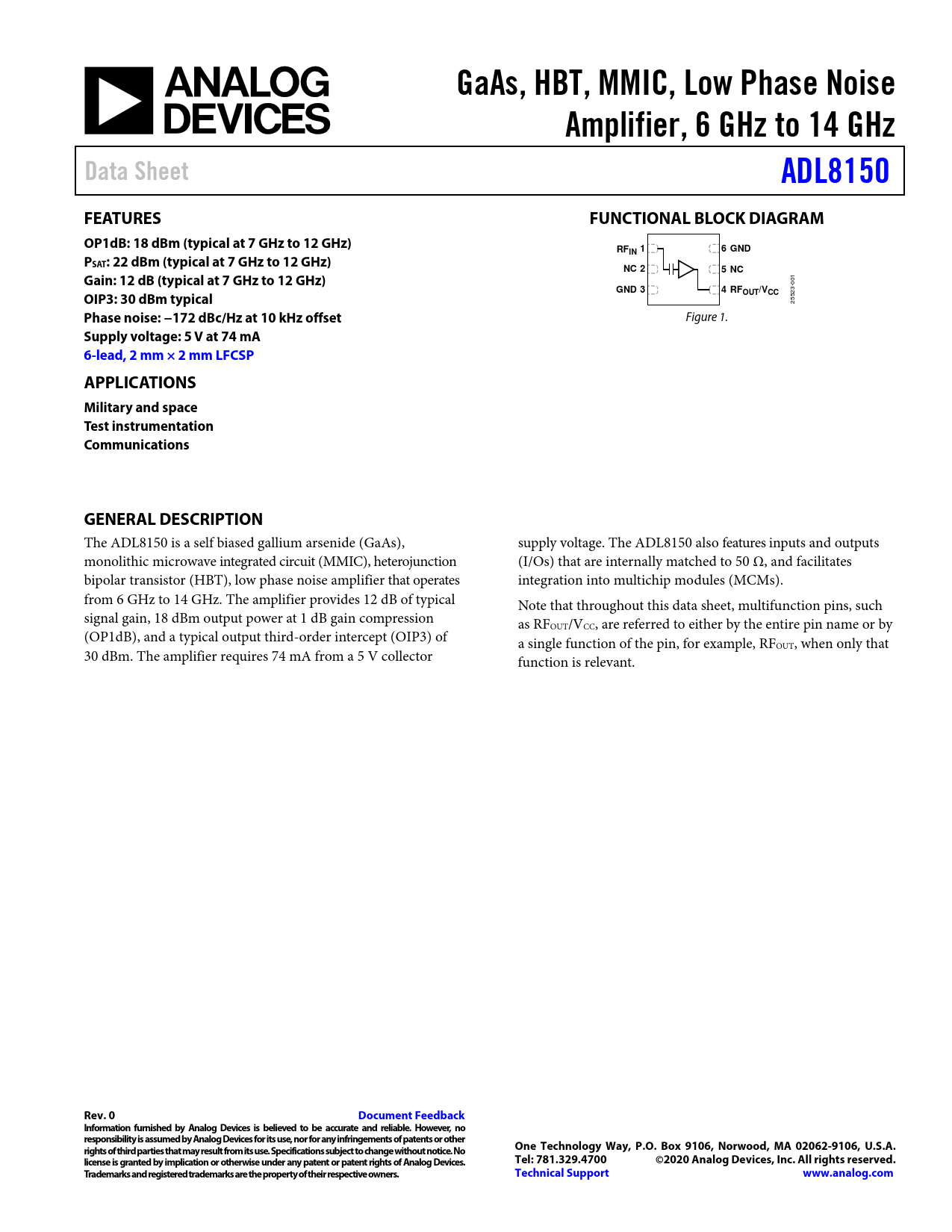

GaAs, HBT, MMIC, Low Phase Noise Amplifier, 6 GHz to 14 GHz Data Sheet ADL8150 FEATURES FUNCTIONAL BLOCK DIAGRAM OP1dB: 18 dBm (typical at 7 GHz to 12 GHz) RF 1 6 IN GND PSAT: 22 dBm (typical at 7 GHz to 12 GHz) NC 2 5 NC Gain: 12 dB (typical at 7 GHz to 12 GHz)
001
GND 3 4 RF OIP3: 30 dBm typical OUT/VCC
25523-
Phase noise: −172 dBc/Hz at 10 kHz offset
Figure 1.
Supply voltage: 5 V at 74 mA 6-lead, 2 mm × 2 mm LFCSP APPLICATIONS Military and space Test instrumentation Communications GENERAL DESCRIPTION
The ADL8150 is a self biased gallium arsenide (GaAs), supply voltage. The ADL8150 also features inputs and outputs monolithic microwave integrated circuit (MMIC), heterojunction (I/Os) that are internally matched to 50 Ω, and facilitates bipolar transistor (HBT), low phase noise amplifier that operates integration into multichip modules (MCMs). from 6 GHz to 14 GHz. The amplifier provides 12 dB of typical Note that throughout this data sheet, multifunction pins, such signal gain, 18 dBm output power at 1 dB gain compression as RFOUT/VCC, are referred to either by the entire pin name or by (OP1dB), and a typical output third-order intercept (OIP3) of a single function of the pin, for example, RFOUT, when only that 30 dBm. The amplifier requires 74 mA from a 5 V collector function is relevant.
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2020 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Frequency Range: 6 GHz to 7 GHz Frequency Range: 7 GHz to 12 GHz Frequency Range: 12 GHz to 14 GHz Absolute Maximum Ratings Thermal Resistance Electrostatic Discharge (ESD) Ratings ESD Ratings for ADL8150 ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Biasing Procedures Outline Dimensions Ordering Guide
