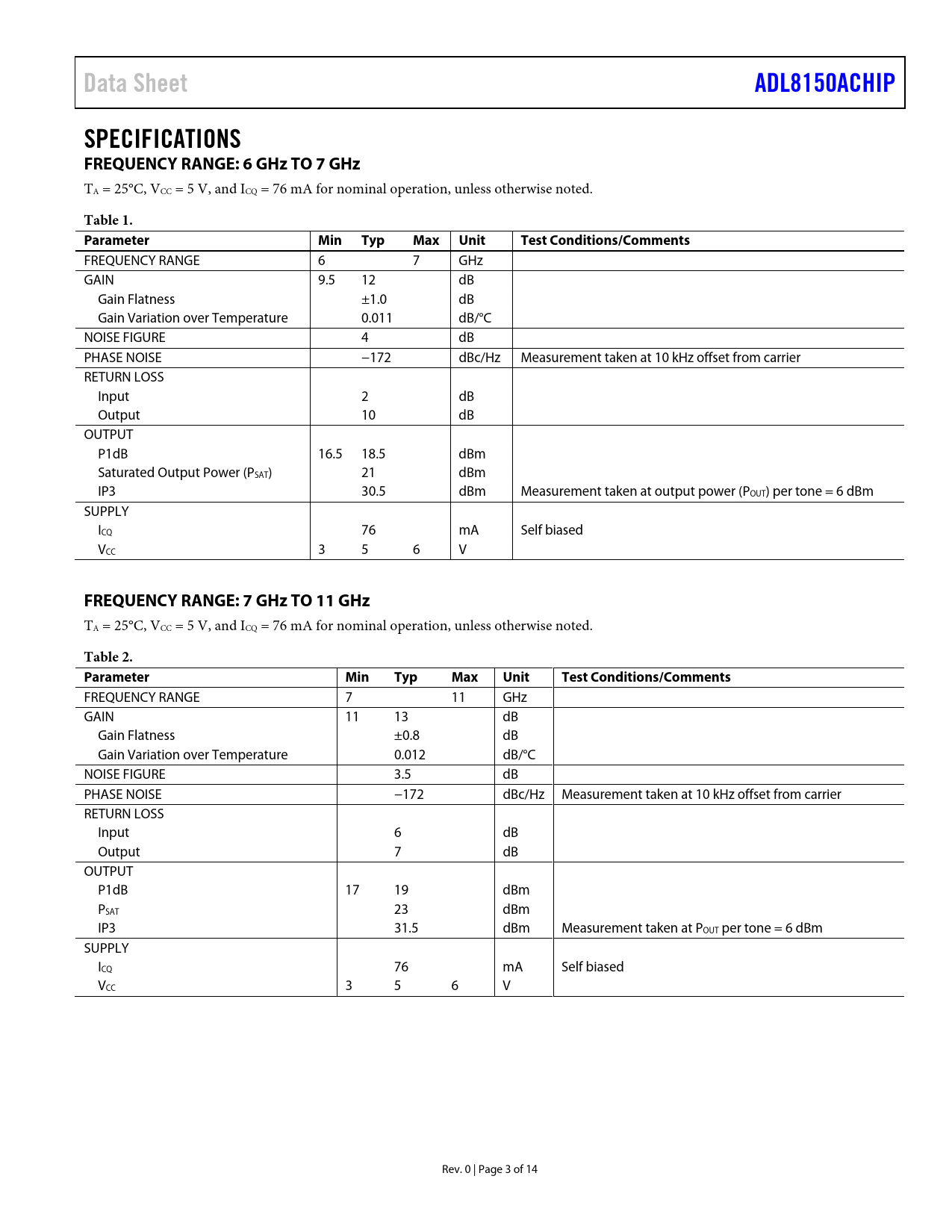

Data Sheet ADL8150ACHIP SPECIFICATIONS FREQUENCY RANGE: 6 GHz TO 7 GHz
TA = 25°C, VCC = 5 V, and ICQ = 76 mA for nominal operation, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 6 7 GHz GAIN 9.5 12 dB Gain Flatness ±1.0 dB Gain Variation over Temperature 0.011 dB/°C NOISE FIGURE 4 dB PHASE NOISE −172 dBc/Hz Measurement taken at 10 kHz offset from carrier RETURN LOSS Input 2 dB Output 10 dB OUTPUT P1dB 16.5 18.5 dBm Saturated Output Power (PSAT) 21 dBm IP3 30.5 dBm Measurement taken at output power (POUT) per tone = 6 dBm SUPPLY ICQ 76 mA Self biased VCC 3 5 6 V
FREQUENCY RANGE: 7 GHz TO 11 GHz
TA = 25°C, VCC = 5 V, and ICQ = 76 mA for nominal operation, unless otherwise noted.
Table 2. Parameter Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 7 11 GHz GAIN 11 13 dB Gain Flatness ±0.8 dB Gain Variation over Temperature 0.012 dB/°C NOISE FIGURE 3.5 dB PHASE NOISE −172 dBc/Hz Measurement taken at 10 kHz offset from carrier RETURN LOSS Input 6 dB Output 7 dB OUTPUT P1dB 17 19 dBm PSAT 23 dBm IP3 31.5 dBm Measurement taken at POUT per tone = 6 dBm SUPPLY ICQ 76 mA Self biased VCC 3 5 6 V Rev. 0 | Page 3 of 14 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Frequency Range: 6 GHz to 7 GHz Frequency Range: 7 GHz to 11 GHz Frequency Range: 11 GHz to 14 GHz Absolute Maximum Ratings Thermal Resistance Electrostatic Discharge (ESD) Ratings ESD Ratings for ADL8150ACHIP ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Biasing Procedures Handling Precautions Mounting Wire Bonding Assembly and Typical Application Circuit Diagrams Outline Dimensions Ordering Guide
