Datasheet ADA4177-2CHIPS (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | OVP and EMI Protected, Precision, Low Noise and Low Bias Current Op Amp |
| Páginas / Página | 7 / 5 — Data Sheet. ADA4177-2CHIPS. ABSOLUTE MAXIMUM RATINGS Table 3. … |
| Formato / tamaño de archivo | PDF / 156 Kb |
| Idioma del documento | Inglés |

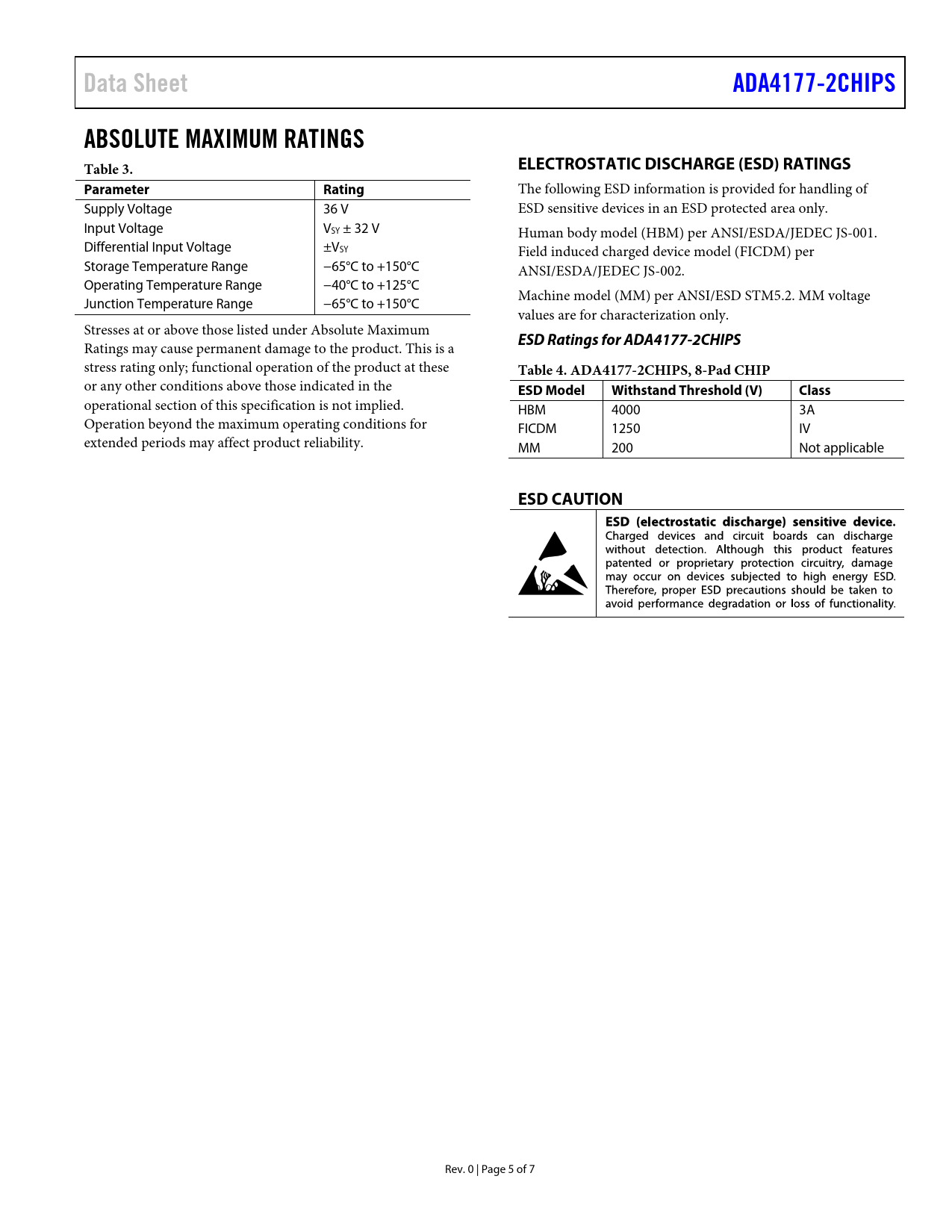

Data Sheet. ADA4177-2CHIPS. ABSOLUTE MAXIMUM RATINGS Table 3. ELECTROSTATIC DISCHARGE (ESD) RATINGS. Parameter Rating
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADA4177-2CHIPS ABSOLUTE MAXIMUM RATINGS Table 3. ELECTROSTATIC DISCHARGE (ESD) RATINGS Parameter Rating
The following ESD information is provided for handling of Supply Voltage 36 V ESD sensitive devices in an ESD protected area only. Input Voltage VSY ± 32 V Human body model (HBM) per ANSI/ESDA/JEDEC JS-001. Differential Input Voltage ±VSY Field induced charged device model (FICDM) per Storage Temperature Range −65°C to +150°C ANSI/ESDA/JEDEC JS-002. Operating Temperature Range −40°C to +125°C Machine model (MM) per ANSI/ESD STM5.2. MM voltage Junction Temperature Range −65°C to +150°C values are for characterization only. Stresses at or above those listed under Absolute Maximum
ESD Ratings for ADA4177-2CHIPS
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these
Table 4. ADA4177-2CHIPS, 8-Pad CHIP
or any other conditions above those indicated in the
ESD Model Withstand Threshold (V) Class
operational section of this specification is not implied. HBM 4000 3A Operation beyond the maximum operating conditions for FICDM 1250 IV extended periods may affect product reliability. MM 200 Not applicable
ESD CAUTION
Rev. 0 | Page 5 of 7 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADA4177-2CHIPS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTION OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
