Datasheet MSLSA (MSI) - 4
| Fabricante | MSI |
| Descripción | Low Power Spectrum Analyzer |
| Páginas / Página | 8 / 4 — Low Power Spectrum Analyzer. Data Sheet. Pin Description. MSLSA |
| Formato / tamaño de archivo | PDF / 77 Kb |
| Idioma del documento | Inglés |

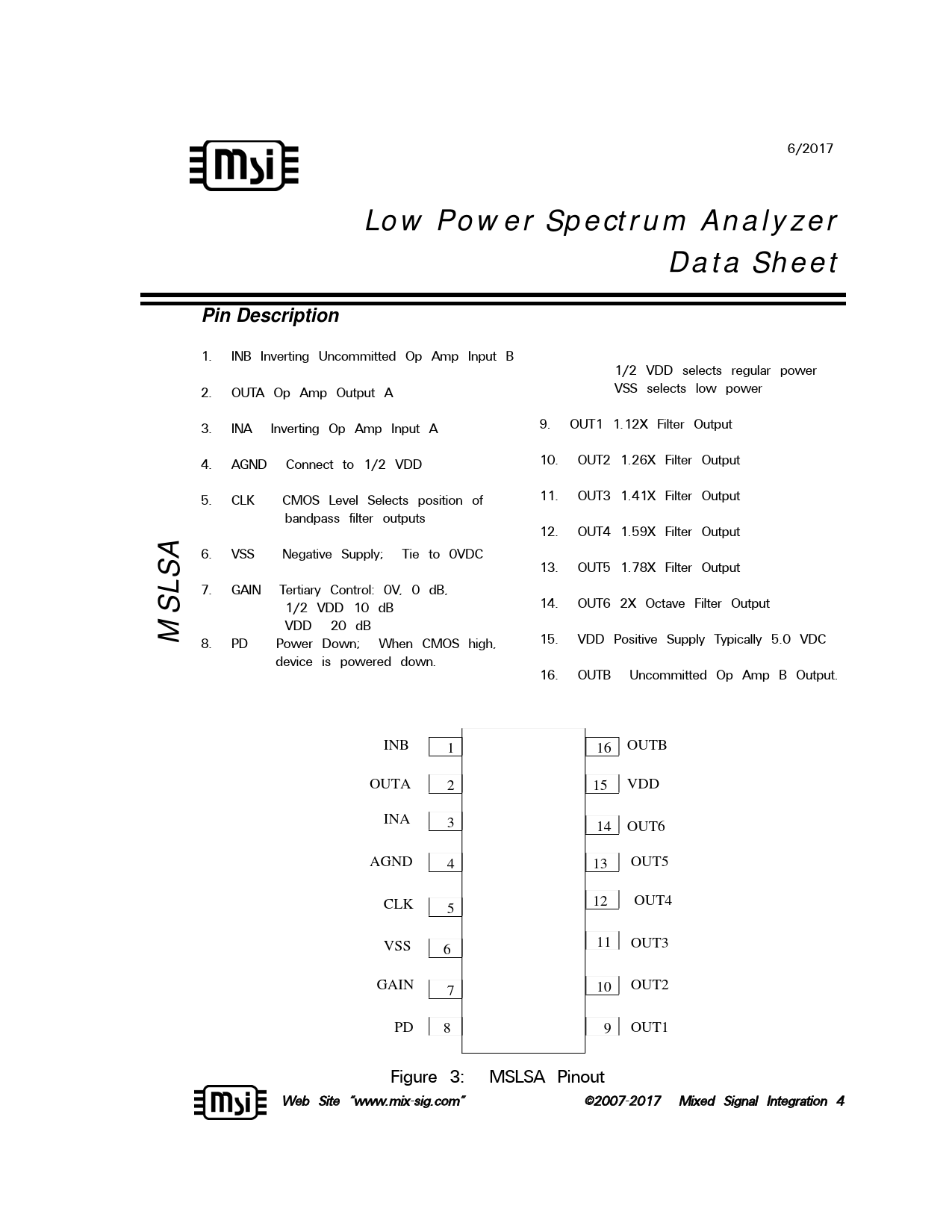

Low Power Spectrum Analyzer. Data Sheet. Pin Description. MSLSA
Línea de modelo para esta hoja de datos
Versión de texto del documento
6/2017
Low Power Spectrum Analyzer Data Sheet Pin Description
1. INB Inverting Uncommitted Op Amp Input B 1/2 VDD selects regular power 2. OUTA Op Amp Output A VSS selects low power 3. INA Inverting Op Amp Input A 9. OUT1 1.12X Filter Output 4. AGND Connect to 1/2 VDD 10. OUT2 1.26X Filter Output 5. CLK CMOS Level Selects position of 11. OUT3 1.41X Filter Output bandpass filter outputs 12. OUT4 1.59X Filter Output 6. VSS Negative Supply; Tie to 0VDC 13. OUT5 1.78X Filter Output 7. GAIN Tertiary Control: 0V, 0 dB, 1/2 VDD 10 dB 14. OUT6 2X Octave Filter Output
MSLSA
VDD 20 dB 8. PD Power Down; When CMOS high, 15. VDD Positive Supply Typically 5.0 VDC device is powered down. 16. OUTB Uncommitted Op Amp B Output. INB 1 16 OUTB OUTA 2 15 VDD INA 3 14 OUT6 AGND 4 13 OUT5 12 CLK OUT4 5 11 VSS 6 OUT3 GAIN 7 10 OUT2 PD 8 9 OUT1 Figure 3: MSLSA Pinout Web Site “www.mix-ssig.com” ©2007-2 2017 Mixed Signal Integration 4
