AD843–Typical Characteristics
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD843–Typical Characteristics

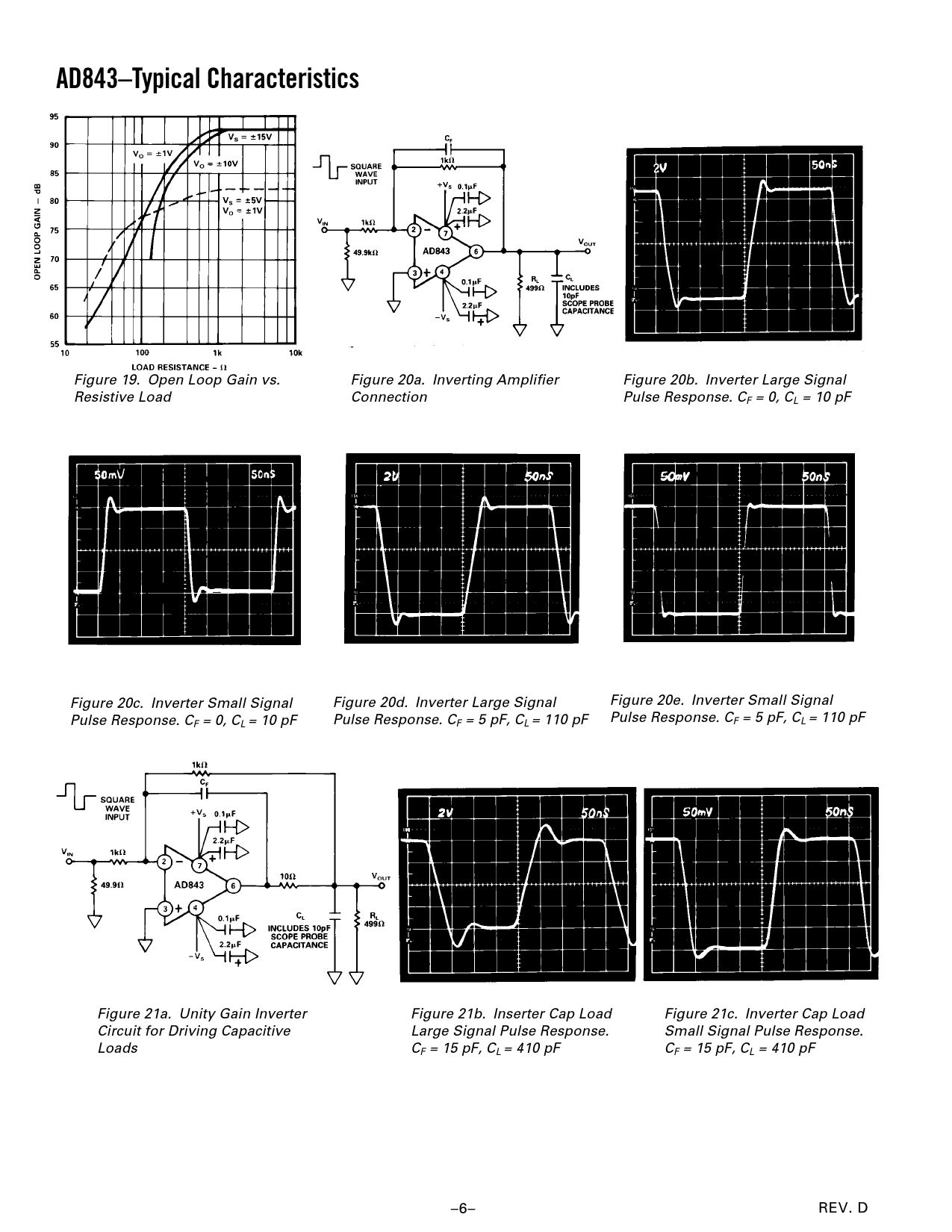

Figure 19. Open Loop Gain vs. Figure 20a. Inverting Amplifier Figure 20b. Inverter Large Signal Resistive Load Connection Pulse Response. CF = 0, CL = 10 pF Figure 20c. Inverter Small Signal Figure 20d. Inverter Large Signal Figure 20e. Inverter Small Signal Pulse Response. C Pulse Response. C Pulse Response. C F = 0, CL = 10 pF F = 5 pF, CL = 110 pF F = 5 pF, CL = 110 pF Figure 21a. Unity Gain Inverter Figure 21b. Inserter Cap Load Figure 21c. Inverter Cap Load Circuit for Driving Capacitive Large Signal Pulse Response. Small Signal Pulse Response. Loads CF = 15 pF, CL = 410 pF CF = 15 pF, CL = 410 pF –6– REV. D
