AD843–Typical Characteristics
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD843–Typical Characteristics

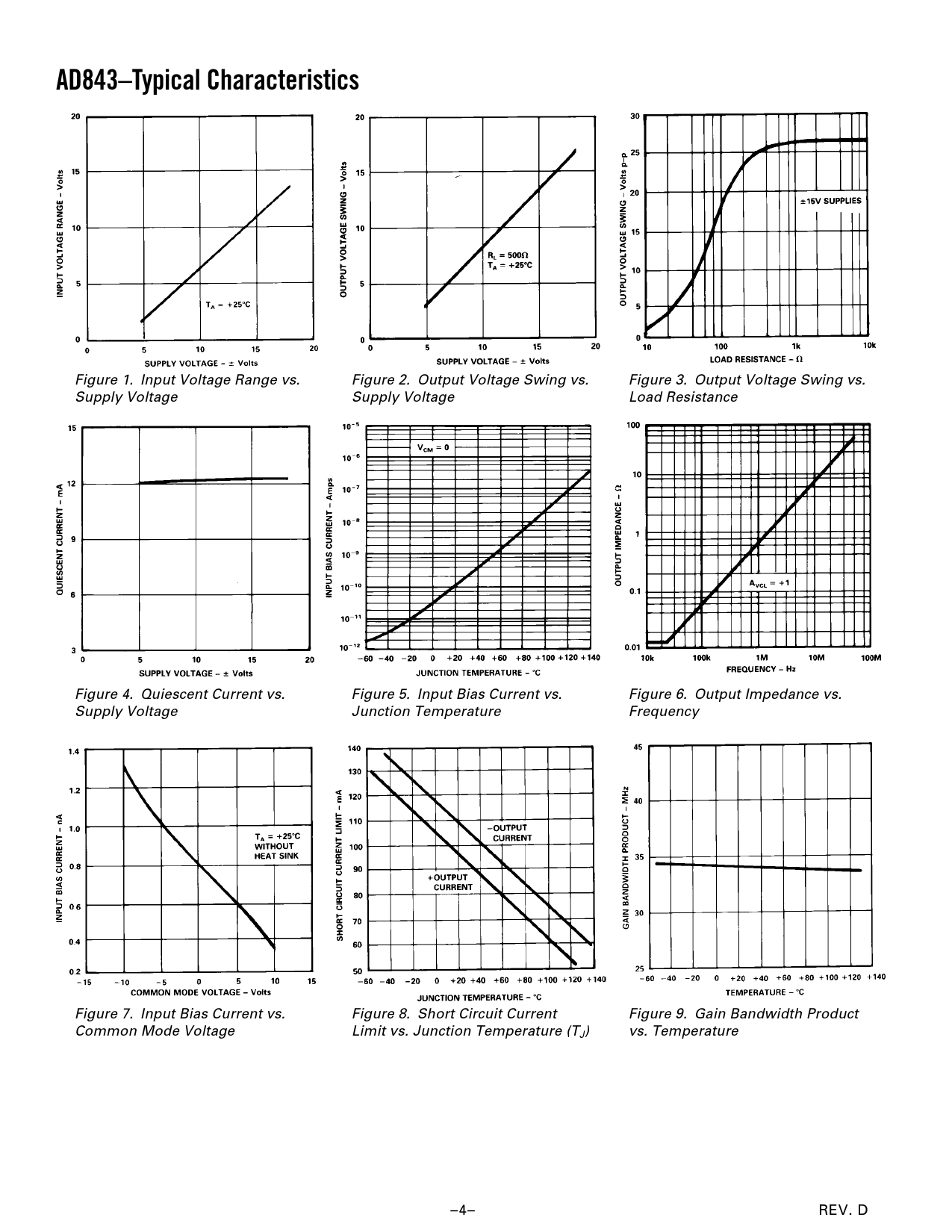

Figure 1. Input Voltage Range vs. Figure 2. Output Voltage Swing vs. Figure 3. Output Voltage Swing vs. Supply Voltage Supply Voltage Load Resistance Figure 4. Quiescent Current vs. Figure 5. Input Bias Current vs. Figure 6. Output Impedance vs. Supply Voltage Junction Temperature Frequency Figure 7. Input Bias Current vs. Figure 8. Short Circuit Current Figure 9. Gain Bandwidth Product Common Mode Voltage Limit vs. Junction Temperature (TJ) vs. Temperature –4– REV. D
Figure 1. Input Voltage Range vs. Figure 2. Output Voltage Swing vs. Figure 3. Output Voltage Swing vs. Supply Voltage Supply Voltage Load Resistance Figure 4. Quiescent Current vs. Figure 5. Input Bias Current vs. Figure 6. Output Impedance vs. Supply Voltage Junction Temperature Frequency Figure 7. Input Bias Current vs. Figure 8. Short Circuit Current Figure 9. Gain Bandwidth Product Common Mode Voltage Limit vs. Junction Temperature (TJ) vs. Temperature –4– REV. D
