High-Speed, Low-Power. Dual Operational Amplifier. AD826. FEATURES. CONNECTION DIAGRAM. High Speed:
Línea de modelo para esta hoja de datos
Versión de texto del documento
a

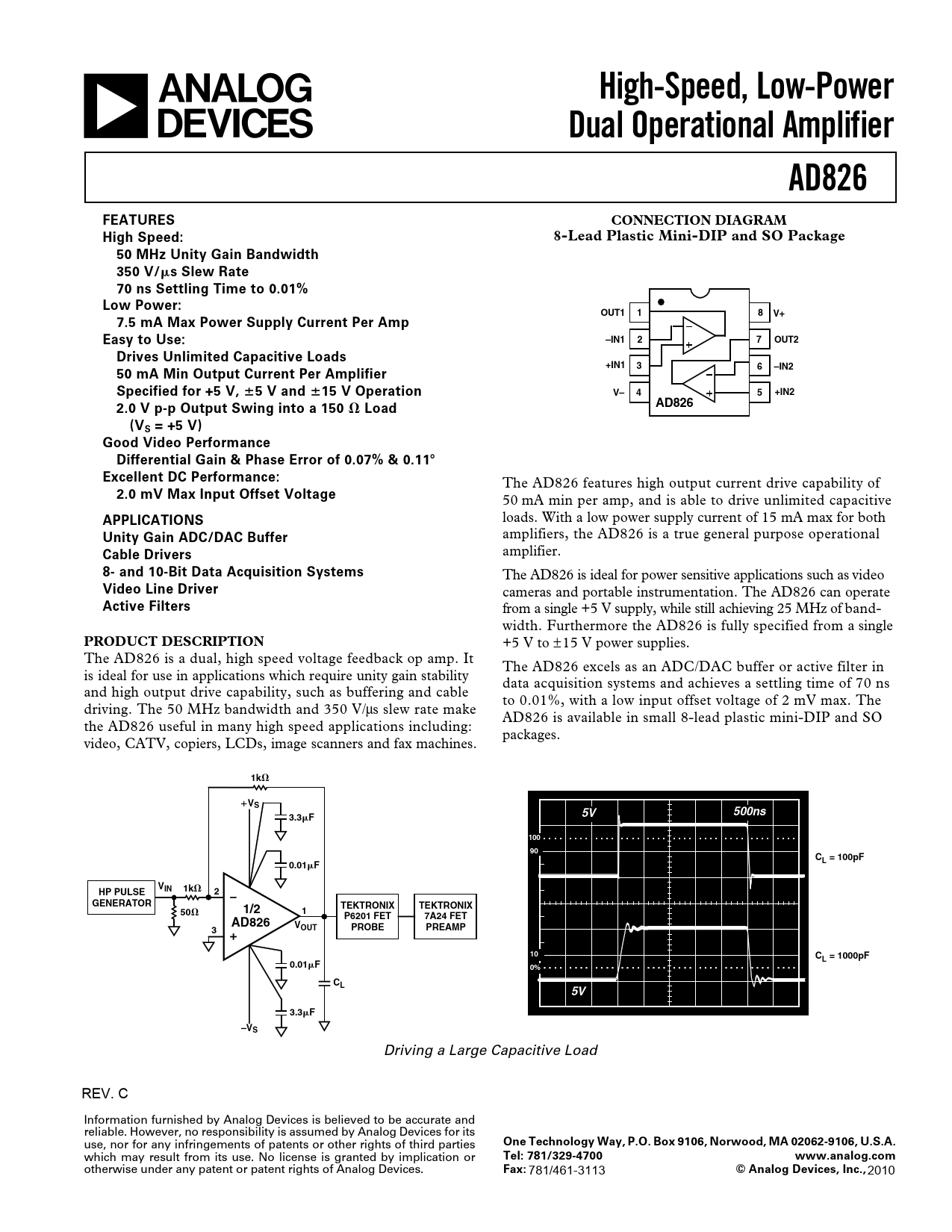

High-Speed, Low-Power Dual Operational Amplifier AD826 FEATURES CONNECTION DIAGRAM High Speed: 8-Lead Plastic Mini-DIP and SO Package 50 MHz Unity Gain Bandwidth 350 V/ s Slew Rate 70 ns Settling Time to 0.01% Low Power: OUT1 1 8 V+ 7.5 mA Max Power Supply Current Per Amp Easy to Use: –IN1 2 7 OUT2 Drives Unlimited Capacitive Loads +IN1 3 6 –IN2 50 mA Min Output Current Per Amplifier Specified for +5 V, 5 V and 15 V Operation V– 4 5 +IN2 AD826 2.0 V p-p Output Swing into a 150 Load (VS = +5 V) Good Video Performance Differential Gain & Phase Error of 0.07% & 0.11 Excellent DC Performance:
The AD826 features high output current drive capability of
2.0 mV Max Input Offset Voltage
50 mA min per amp, and is able to drive unlimited capacitive loads. With a low power supply current of 15 mA max for both
APPLICATIONS
amplifiers, the AD826 is a true general purpose operational
Unity Gain ADC/DAC Buffer
amplifier.
Cable Drivers 8- and 10-Bit Data Acquisition Systems
The AD826 is ideal for power sensitive applications such as video
Video Line Driver
cameras and portable instrumentation. The AD826 can operate
Active Filters
from a single +5 V supply, while still achieving 25 MHz of band- width. Furthermore the AD826 is fully specified from a single
PRODUCT DESCRIPTION
+5 V to ± 15 V power supplies. The AD826 is a dual, high speed voltage feedback op amp. It The AD826 excels as an ADC/DAC buffer or active filter in is ideal for use in applications which require unity gain stability data acquisition systems and achieves a settling time of 70 ns and high output drive capability, such as buffering and cable to 0.01%, with a low input offset voltage of 2 mV max. The driving. The 50 MHz bandwidth and 350 V/µs slew rate make AD826 is available in small 8-lead plastic mini-DIP and SO the AD826 useful in many high speed applications including: packages. video, CATV, copiers, LCDs, image scanners and fax machines.
1k VS 5V 500ns 3.3 F 100 90 C = 100pF L 0.01 F V HP PULSE IN 1k 2 GENERATOR TEKTRONIX TEKTRONIX 50 1/2 1 P6201 FET 7A24 FET AD826 VOUT PROBE PREAMP 3 10 C = 1000pF L 0.01 F 0% CL 5V 3.3 F –VS
Driving a Large Capacitive Load REV. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
which may result from its use. No license is granted by implication or
Tel: 781/329-4700 www.analog.com
otherwise under any patent or patent rights of Analog Devices.
Fax:
781/461-3113
© Analog Devices, Inc.,
2010
