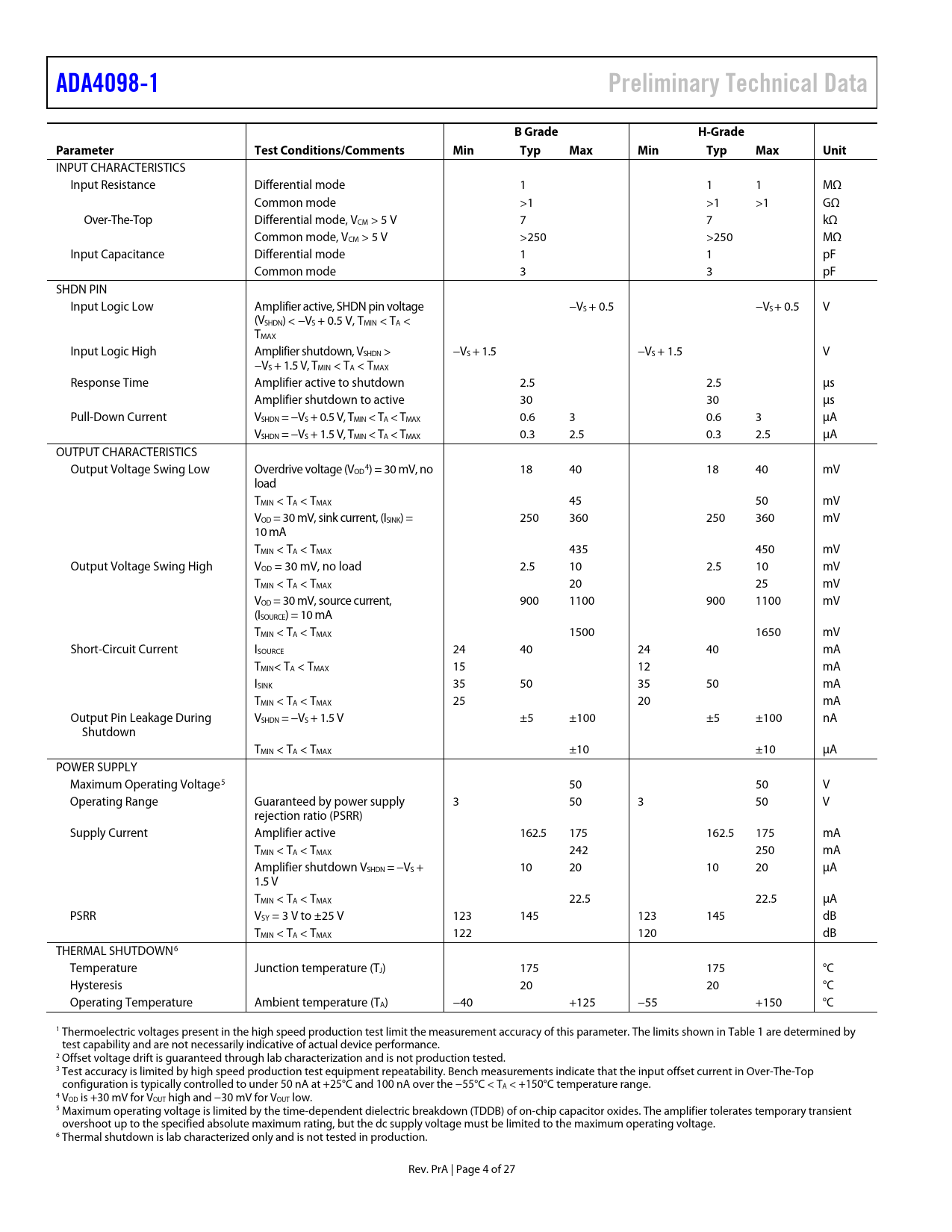

ADA4098-1 Preliminary Technical Data B Grade H-Grade Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
