Datasheet LT3470 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | Micropower Buck Regulator with Integrated Boost and Catch Diodes |
| Páginas / Página | 20 / 6 — TYPICAL PERFORMANCE CHARACTERISTICS. Catch Diode Forward Voltage. Boost … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 483 Kb |
| Idioma del documento | Inglés |
TYPICAL PERFORMANCE CHARACTERISTICS. Catch Diode Forward Voltage. Boost Diode Forward Voltage
Línea de modelo para esta hoja de datos
- LT3470EDDB#TRMPBF LT3470EDDB#TRPBF LT3470EDDB#WTRMPBF LT3470EDDB#WTRPBF LT3470ETS8#TRMPBF LT3470ETS8#TRPBF LT3470HDDB#TRMPBF LT3470HDDB#TRPBF LT3470HDDB#WTRMPBF LT3470HDDB#WTRPBF LT3470HTS8#TRMPBF LT3470HTS8#TRPBF LT3470IDDB#TRMPBF LT3470IDDB#TRPBF LT3470IDDB#WTRMPBF LT3470IDDB#WTRPBF LT3470ITS8#TRMPBF LT3470ITS8#TRPBF
Versión de texto del documento
LT3470

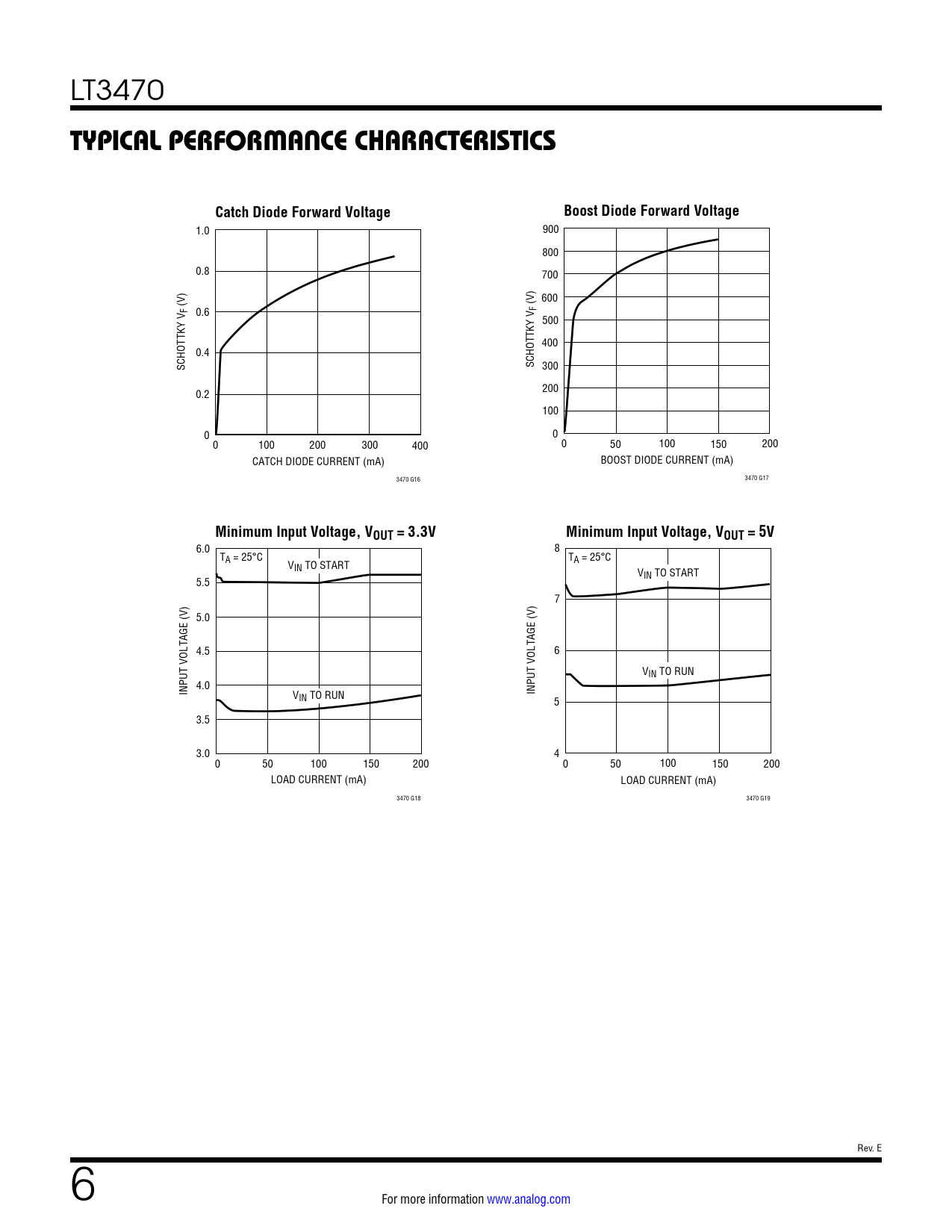

TYPICAL PERFORMANCE CHARACTERISTICS Catch Diode Forward Voltage Boost Diode Forward Voltage
1.0 900 800 0.8 700 600 (V) (V) F 0.6 F 500 400 0.4 SCHOTTKY V SCHOTTKY V 300 0.2 200 100 0 0 0 100 200 300 400 0 50 100 150 200 CATCH DIODE CURRENT (mA) BOOST DIODE CURRENT (mA) 3470 G16 3470 G17
Minimum Input Voltage, VOUT = 3.3V Minimum Input Voltage, VOUT = 5V
6.0 8 TA = 25°C T V A = 25°C IN TO START V 5.5 IN TO START 7 5.0 4.5 6 VIN TO RUN INPUT VOLTAGE (V) 4.0 V INPUT VOLTAGE (V) IN TO RUN 5 3.5 3.0 4 0 50 100 150 200 0 50 100 150 200 LOAD CURRENT (mA) LOAD CURRENT (mA) 3470 G18 3470 G19 Rev. E 6 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Related Parts
