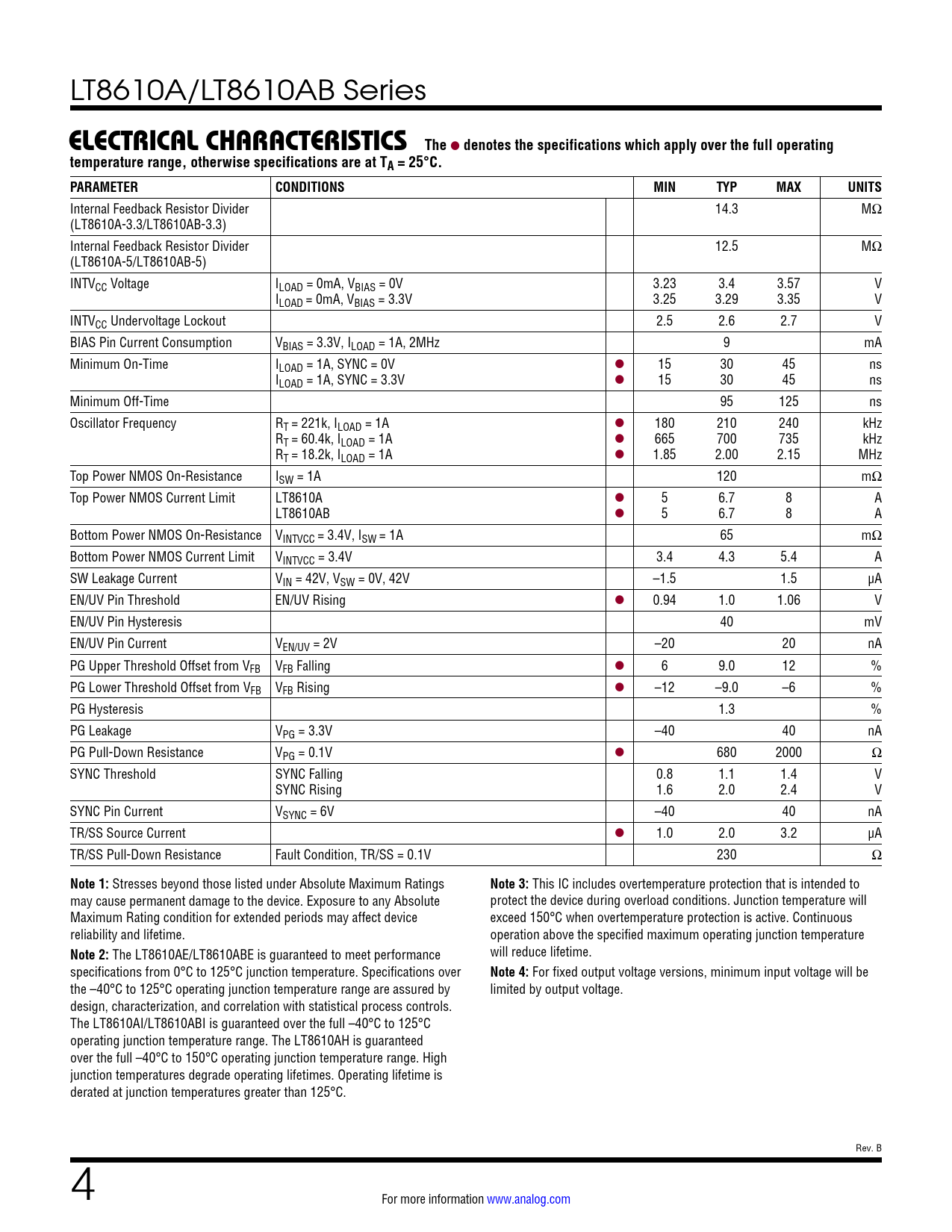

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
- LT8610ABEMSE#PBF LT8610ABEMSE#TRPBF LT8610ABEMSE#WPBF LT8610ABEMSE#WTRPBF LT8610ABEMSE-3.3#PBF LT8610ABEMSE-3.3#TRPBF LT8610ABEMSE-5#PBF LT8610ABEMSE-5#TRPBF LT8610ABHMSE#PBF LT8610ABHMSE#TRPBF LT8610ABHMSE#WPBF LT8610ABHMSE#WTRPBF LT8610ABHMSE-3.3#PBF LT8610ABHMSE-3.3#TRPBF LT8610ABHMSE-5#PBF LT8610ABHMSE-5#TRPBF LT8610ABIMSE#PBF LT8610ABIMSE#TRPBF LT8610ABIMSE#WPBF LT8610ABIMSE#WTRPBF LT8610ABIMSE-3.3#PBF LT8610ABIMSE-3.3#TRPBF LT8610ABIMSE-5#PBF LT8610ABIMSE-5#TRPBF LT8610AEMSE#PBF LT8610AEMSE#TRPBF LT8610AEMSE#WPBF LT8610AEMSE#WTRPBF LT8610AEMSE-3.3#PBF LT8610AEMSE-3.3#TRPBF LT8610AEMSE-5#PBF LT8610AEMSE-5#TRPBF LT8610AHMSE#PBF LT8610AHMSE#TRPBF LT8610AHMSE#WPBF LT8610AHMSE#WTRPBF LT8610AHMSE-3.3#PBF LT8610AHMSE-3.3#TRPBF LT8610AHMSE-5#PBF LT8610AHMSE-5#TRPBF LT8610AIMSE#PBF LT8610AIMSE#TRPBF LT8610AIMSE#WPBF LT8610AIMSE#WTRPBF LT8610AIMSE-3.3#PBF LT8610AIMSE-3.3#TRPBF LT8610AIMSE-5#PBF LT8610AIMSE-5#TRPBF
Versión de texto del documento
link to page 2 LT8610A/LT8610AB Series
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Internal Feedback Resistor Divider 14.3 MΩ (LT8610A-3.3/LT8610AB-3.3) Internal Feedback Resistor Divider 12.5 MΩ (LT8610A-5/LT8610AB-5) INTVCC Voltage ILOAD = 0mA, VBIAS = 0V 3.23 3.4 3.57 V ILOAD = 0mA, VBIAS = 3.3V 3.25 3.29 3.35 V INTVCC Undervoltage Lockout 2.5 2.6 2.7 V BIAS Pin Current Consumption VBIAS = 3.3V, ILOAD = 1A, 2MHz 9 mA Minimum On-Time ILOAD = 1A, SYNC = 0V l 15 30 45 ns ILOAD = 1A, SYNC = 3.3V l 15 30 45 ns Minimum Off-Time 95 125 ns Oscillator Frequency RT = 221k, ILOAD = 1A l 180 210 240 kHz RT = 60.4k, ILOAD = 1A l 665 700 735 kHz RT = 18.2k, ILOAD = 1A l 1.85 2.00 2.15 MHz Top Power NMOS On-Resistance ISW = 1A 120 mΩ Top Power NMOS Current Limit LT8610A l 5 6.7 8 A LT8610AB l 5 6.7 8 A Bottom Power NMOS On-Resistance VINTVCC = 3.4V, ISW = 1A 65 mΩ Bottom Power NMOS Current Limit VINTVCC = 3.4V 3.4 4.3 5.4 A SW Leakage Current VIN = 42V, VSW = 0V, 42V –1.5 1.5 µA EN/UV Pin Threshold EN/UV Rising l 0.94 1.0 1.06 V EN/UV Pin Hysteresis 40 mV EN/UV Pin Current VEN/UV = 2V –20 20 nA PG Upper Threshold Offset from VFB VFB Falling l 6 9.0 12 % PG Lower Threshold Offset from VFB VFB Rising l –12 –9.0 –6 % PG Hysteresis 1.3 % PG Leakage VPG = 3.3V –40 40 nA PG Pull-Down Resistance VPG = 0.1V l 680 2000 Ω SYNC Threshold SYNC Falling 0.8 1.1 1.4 V SYNC Rising 1.6 2.0 2.4 V SYNC Pin Current VSYNC = 6V –40 40 nA TR/SS Source Current l 1.0 2.0 3.2 µA TR/SS Pull-Down Resistance Fault Condition, TR/SS = 0.1V 230 Ω
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
This IC includes overtemperature protection that is intended to may cause permanent damage to the device. Exposure to any Absolute protect the device during overload conditions. Junction temperature will Maximum Rating condition for extended periods may affect device exceed 150°C when overtemperature protection is active. Continuous reliability and lifetime. operation above the specified maximum operating junction temperature
Note 2:
The LT8610AE/LT8610ABE is guaranteed to meet performance will reduce lifetime. specifications from 0°C to 125°C junction temperature. Specifications over
Note 4:
For fixed output voltage versions, minimum input voltage will be the –40°C to 125°C operating junction temperature range are assured by limited by output voltage. design, characterization, and correlation with statistical process controls. The LT8610AI/LT8610ABI is guaranteed over the full –40°C to 125°C operating junction temperature range. The LT8610AH is guaranteed over the full –40°C to 150°C operating junction temperature range. High junction temperatures degrade operating lifetimes. Operating lifetime is derated at junction temperatures greater than 125°C. Rev. B 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
