TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C. Vertical Polarization. Horizontal Polarization
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT8601

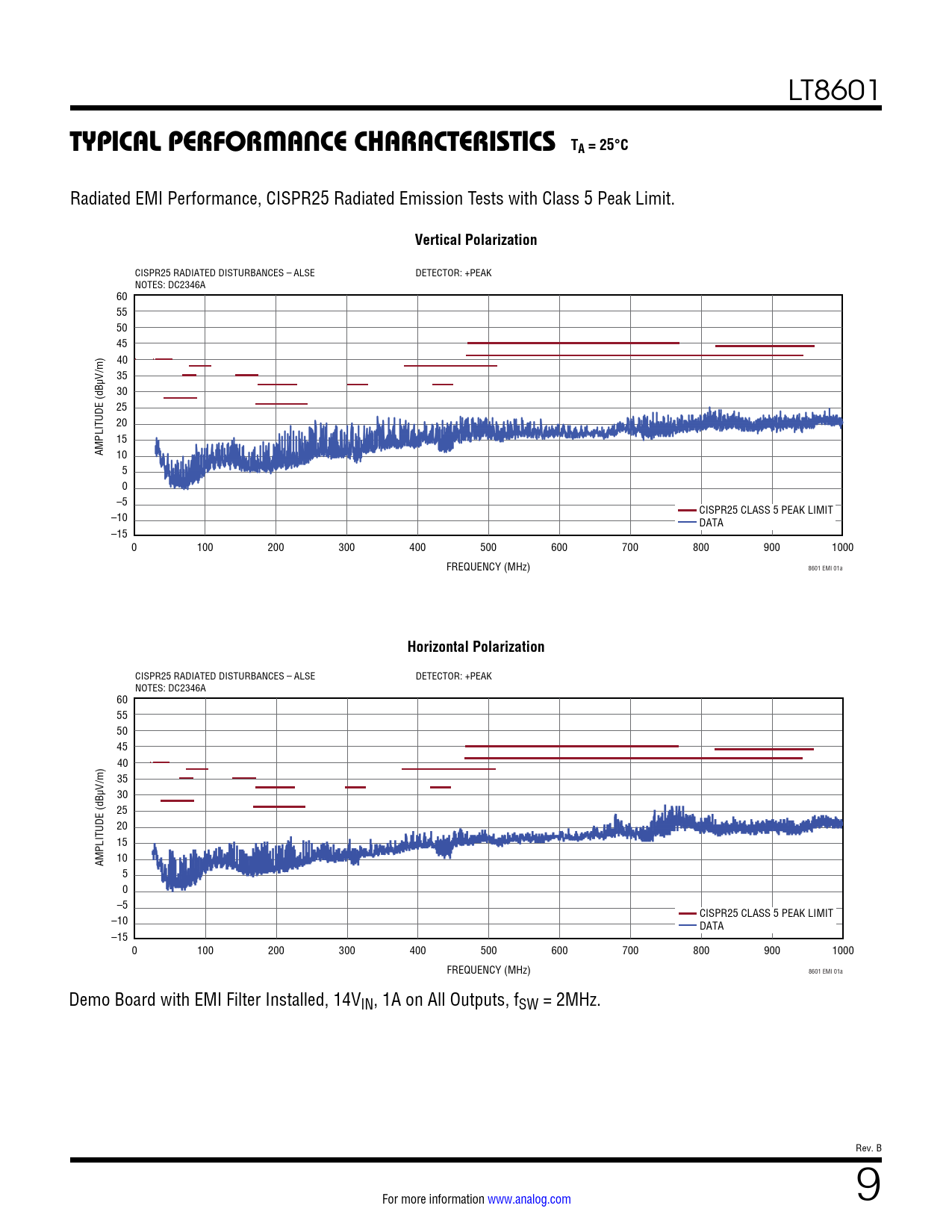

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C
Radiated EMI Performance, CISPR25 Radiated Emission Tests with Class 5 Peak Limit.
Vertical Polarization
CISPR25 RADIATED DISTURBANCES – ALSE DETECTOR: +PEAK NOTES: DC2346A 60 55 50 45 40 35 30 25 20 15 AMPLITUDE (dBµV/m) 10 5 0 –5 CISPR25 CLASS 5 PEAK LIMIT –10 DATA –15 0 100 200 300 400 500 600 700 800 900 1000 FREQUENCY (MHz) 8601 EMI 01a
Horizontal Polarization
CISPR25 RADIATED DISTURBANCES – ALSE DETECTOR: +PEAK NOTES: DC2346A 60 55 50 45 40 35 30 25 20 15 AMPLITUDE (dBµV/m) 105 0 –5 CISPR25 CLASS 5 PEAK LIMIT –10 DATA –15 0 100 200 300 400 500 600 700 800 900 1000 FREQUENCY (MHz) 8601 EMI 01a Demo Board with EMI Filter Installed, 14VIN, 1A on All Outputs, fSW = 2MHz. Rev. B For more information www.analog.com 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
