Datasheet LT8609, LT8609A, LT8609B (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 42V, 3A Synchronous Step-Down Regulator with 2.5µA Quiescent Current |
| Páginas / Página | 30 / 6 — TYPICAL PERFORMANCE CHARACTERISTICS. LT8609 Efficiency (3.3V Output,. … |
| Revisión | I |
| Formato / tamaño de archivo | PDF / 2.0 Mb |
| Idioma del documento | Inglés |
TYPICAL PERFORMANCE CHARACTERISTICS. LT8609 Efficiency (3.3V Output,. LT8609 Efficiency (5V Output,. Burst Mode Operation)
Línea de modelo para esta hoja de datos
- LT8609AEDDM#PBF LT8609AEDDM#TRPBF LT8609AEDDM#WPBF LT8609AEDDM#WTRPBF LT8609AEDDM-3.3#PBF LT8609AEDDM-3.3#TRPBF LT8609AEDDM-3.3#WPBF LT8609AEDDM-3.3#WTRPBF LT8609AEDDM-5#PBF LT8609AEDDM-5#TRPBF LT8609AEDDM-5#WPBF LT8609AEDDM-5#WTRPBF LT8609AEMSE#PBF LT8609AEMSE#TRPBF LT8609AEMSE#WPBF LT8609AEMSE#WTRPBF LT8609AEMSE16#PBF LT8609AEMSE16#TRPBF LT8609AEMSE16#WPBF LT8609AEMSE16#WTRPBF LT8609AHDDM#PBF LT8609AHDDM#TRPBF LT8609AHDDM#WPBF LT8609AHDDM#WTRPBF LT8609AHDDM-5#PBF LT8609AHDDM-5#TRPBF LT8609AHDDM-5#WPBF LT8609AHDDM-5#WTRPBF LT8609AHMSE#PBF LT8609AHMSE#TRPBF LT8609AHMSE#WPBF LT8609AHMSE#WTRPBF LT8609AHMSE16#PBF LT8609AHMSE16#TRPBF LT8609AHMSE16#WPBF LT8609AHMSE16#WTRPBF LT8609AIMSE#PBF LT8609AIMSE#TRPBF LT8609AIMSE#WPBF LT8609AIMSE#WTRPBF LT8609AIMSE16#PBF LT8609AIMSE16#TRPBF LT8609AIMSE16#WPBF LT8609AIMSE16#WTRPBF LT8609AJDDM#PBF LT8609AJDDM#TRPBF LT8609AJDDM#WPBF LT8609AJDDM#WTRPBF LT8609AJDDM-3.3#PBF LT8609AJDDM-3.3#TRPBF LT8609AJDDM-3.3#WPBF LT8609AJDDM-3.3#WTRPBF LT8609AJDDM-5#PBF LT8609AJDDM-5#TRPBF LT8609AJDDM-5#WPBF LT8609AJDDM-5#WTRPBF LT8609AJMSE#PBF LT8609AJMSE#TRPBF LT8609AJMSE#WPBF LT8609AJMSE#WTRPBF LT8609AJMSE16#PBF LT8609AJMSE16#TRPBF LT8609AJMSE16#WPBF LT8609AJMSE16#WTRPBF LT8609BEMSE#PBF LT8609BEMSE#TRPBF LT8609BIMSE#PBF LT8609BIMSE#TRPBF LT8609EMSE#PBF LT8609EMSE#TRPBF LT8609EMSE#WPBF LT8609EMSE#WTRPBF LT8609HMSE#PBF LT8609HMSE#TRPBF LT8609HMSE#WPBF LT8609HMSE#WTRPBF LT8609IMSE#PBF LT8609IMSE#TRPBF LT8609IMSE#WPBF LT8609IMSE#WTRPBF
Versión de texto del documento
LT8609/LT8609A/LT8609B

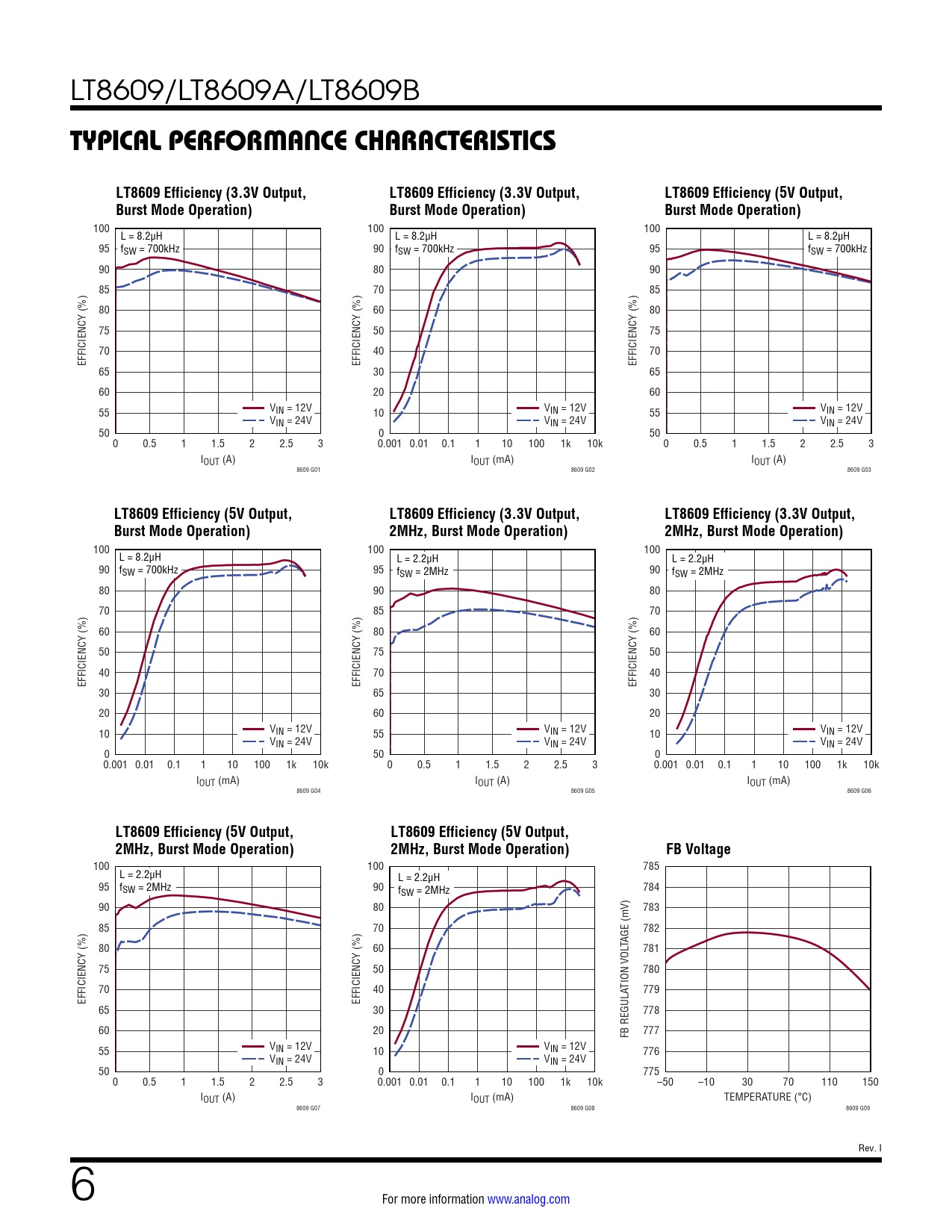

TYPICAL PERFORMANCE CHARACTERISTICS LT8609 Efficiency (3.3V Output, LT8609 Efficiency (3.3V Output, LT8609 Efficiency (5V Output, Burst Mode Operation) Burst Mode Operation) Burst Mode Operation)
100 100 100 L = 8.2µH L = 8.2µH L = 8.2µH 95 fSW = 700kHz 90 fSW = 700kHz 95 fSW = 700kHz 90 80 90 85 70 85 80 60 80 75 50 75 70 40 70 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 65 30 65 60 20 60 55 VIN = 12V 10 VIN = 12V 55 VIN = 12V VIN = 24V VIN = 24V VIN = 24V 50 0 50 0 0.5 1 1.5 2 2.5 3 0.001 0.01 0.1 1 10 100 1k 10k 0 0.5 1 1.5 2 2.5 3 IOUT (A) IOUT (mA) IOUT (A) 8609 G01 8609 G02 8609 G03
LT8609 Efficiency (5V Output, LT8609 Efficiency (3.3V Output, LT8609 Efficiency (3.3V Output, Burst Mode Operation) 2MHz, Burst Mode Operation) 2MHz, Burst Mode Operation)
100 100 100 L = 8.2µH L = 2.2µH L = 2.2µH 90 fSW = 700kHz 95 fSW = 2MHz 90 fSW = 2MHz 80 90 80 70 85 70 60 80 60 50 75 50 40 70 40 EFFICIENCY (%) EFFICIENCY (%) EFFICIENCY (%) 30 65 30 20 60 20 10 VIN = 12V 55 VIN = 12V 10 VIN = 12V VIN = 24V VIN = 24V VIN = 24V 0 50 0 0.001 0.01 0.1 1 10 100 1k 10k 0 0.5 1 1.5 2 2.5 3 0.001 0.01 0.1 1 10 100 1k 10k IOUT (mA) IOUT (A) IOUT (mA) 8609 G04 8609 G05 8609 G06
LT8609 Efficiency (5V Output, LT8609 Efficiency (5V Output, 2MHz, Burst Mode Operation) 2MHz, Burst Mode Operation) FB Voltage
100 100 785 L = 2.2µH L = 2.2µH 95 fSW = 2MHz 90 fSW = 2MHz 784 90 80 783 85 70 782 80 60 TAGE (mV) 781 75 50 780 70 40 TION VOL 779 EFFICIENCY (%) EFFICIENCY (%) 65 30 778 60 20 777 FB REGULA 55 VIN = 12V 10 VIN = 12V 776 VIN = 24V VIN = 24V 50 0 775 0 0.5 1 1.5 2 2.5 3 0.001 0.01 0.1 1 10 100 1k 10k –50 –10 30 70 110 150 IOUT (A) IOUT (mA) TEMPERATURE (°C) 8609 G07 8609 G08 8609 G09 Rev. I 6 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
