Datasheet 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007 (ON Semiconductor)
| Fabricante | ON Semiconductor |
| Descripción | Axial-Lead Glass Passivated Standard Recovery Rectifiers |
| Páginas / Página | 7 / 1 — www.onsemi.com. LEAD MOUNTED RECTIFIERS. 50−1000 VOLTS. Features. … |
| Revisión | 15 |
| Formato / tamaño de archivo | PDF / 172 Kb |
| Idioma del documento | Inglés |
www.onsemi.com. LEAD MOUNTED RECTIFIERS. 50−1000 VOLTS. Features. DIFFUSED JUNCTION. Mechanical Characteristics. CASE 59−10
Línea de modelo para esta hoja de datos
Versión de texto del documento

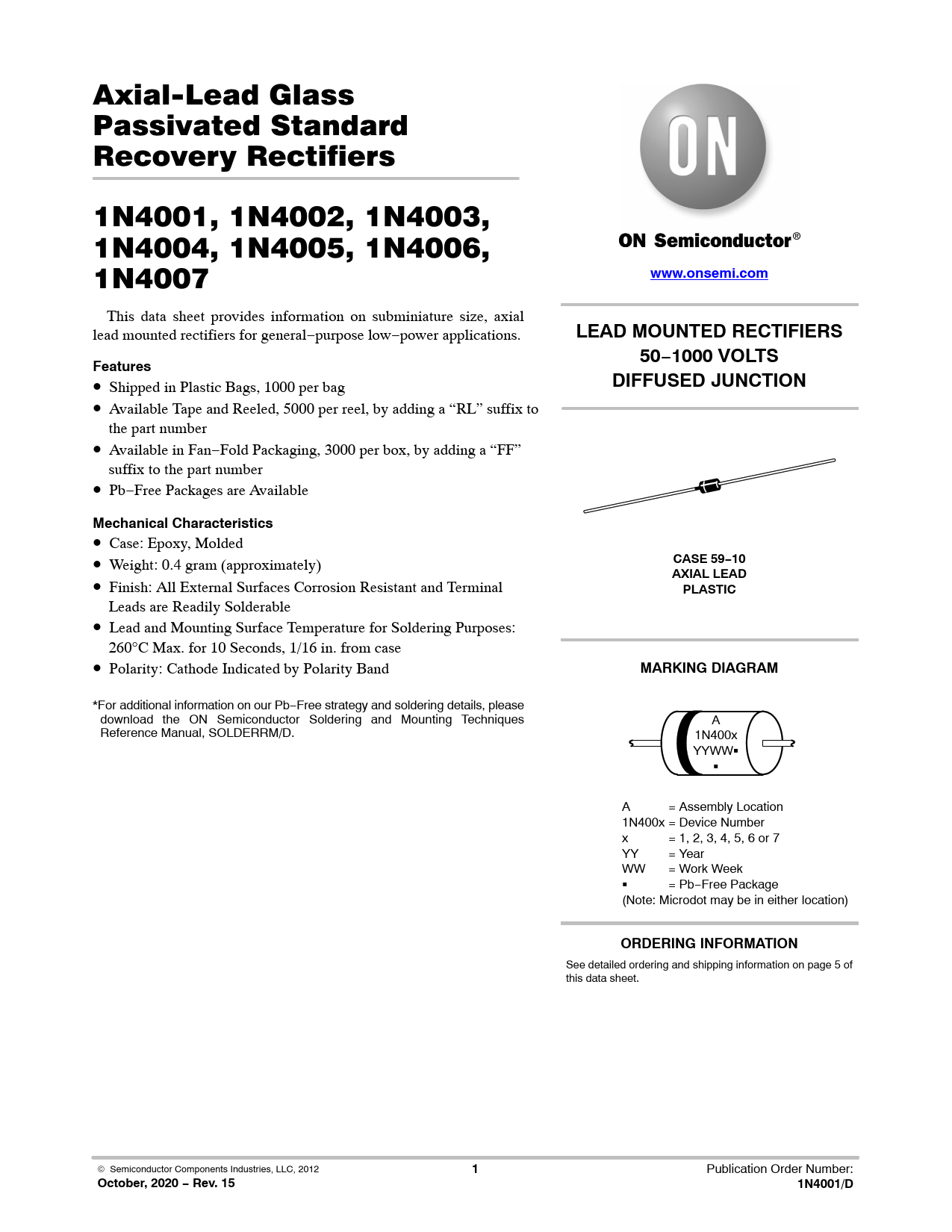

link to page 5 Axial-Lead Glass Passivated Standard Recovery Rectifiers 1N4001, 1N4002, 1N4003, 1N4004, 1N4005, 1N4006, 1N4007
www.onsemi.com
This data sheet provides information on subminiature size, axial lead mounted rectifiers for general−purpose low−power applications.
LEAD MOUNTED RECTIFIERS 50−1000 VOLTS Features
• Shipped in Plastic Bags, 1000 per bag
DIFFUSED JUNCTION
• Available Tape and Reeled, 5000 per reel, by adding a “RL” suffix to the part number • Available in Fan−Fold Packaging, 3000 per box, by adding a “FF” suffix to the part number • Pb−Free Packages are Available
Mechanical Characteristics
• Case: Epoxy, Molded • Weight: 0.4 gram (approximately)
CASE 59−10 AXIAL LEAD
• Finish: All External Surfaces Corrosion Resistant and Terminal
PLASTIC
Leads are Readily Solderable • Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds, 1/16 in. from case • Polarity: Cathode Indicated by Polarity Band
MARKING DIAGRAM
*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques A Reference Manual, SOLDERRM/D. 1N400x YYWWG G A = Assembly Location 1N400x = Device Number x = 1, 2, 3, 4, 5, 6 or 7 YY = Year WW = Work Week G = Pb−Free Package (Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information on page 5 of this data sheet. © Semiconductor Components Industries, LLC, 2012
1
Publication Order Number:
October, 2020 − Rev. 15 1N4001/D
