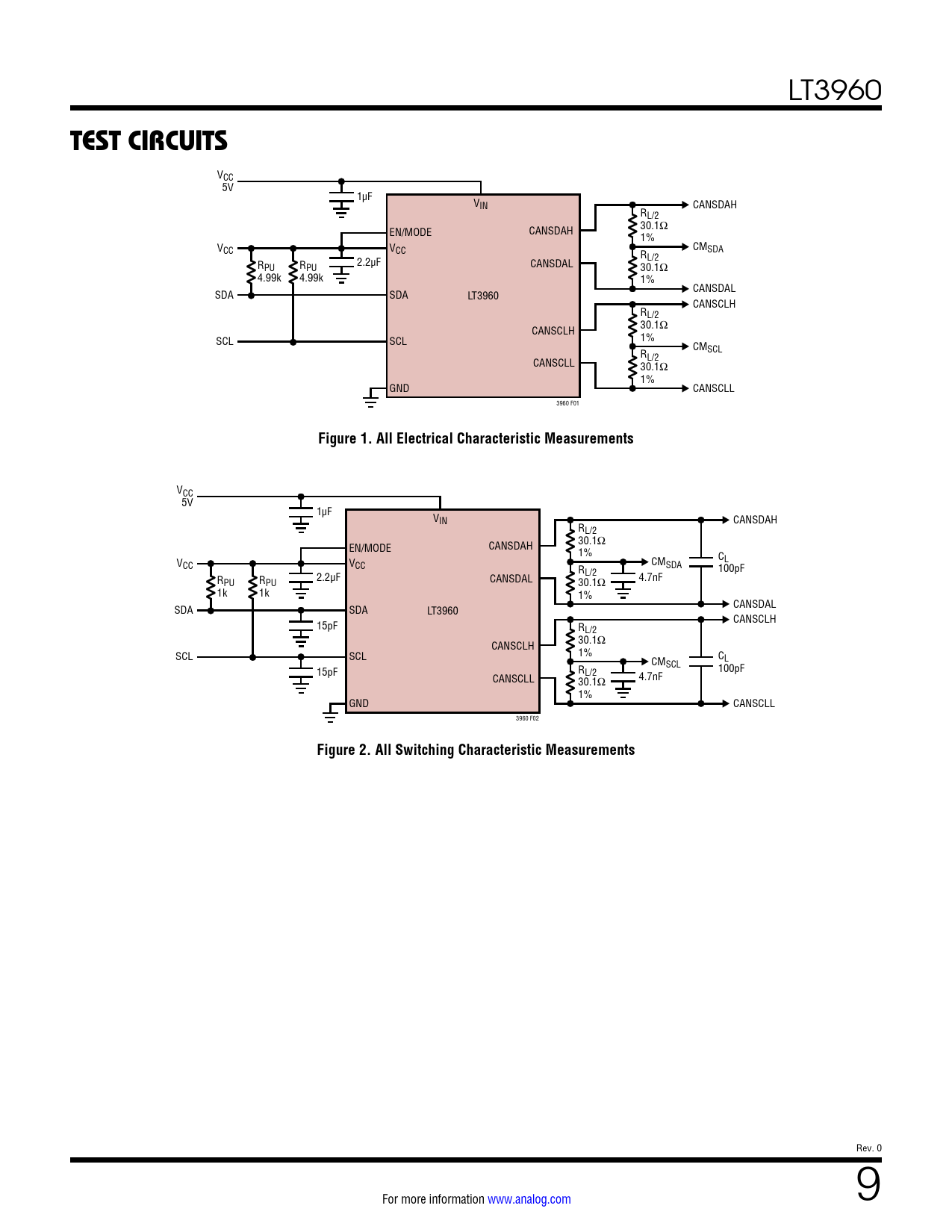

TEST CIRCUITS. Figure 1. All Electrical Characteristic Measurements. Figure 2. All Switching Characteristic Measurements
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT3960
TEST CIRCUITS
VCC 5V 1µF VIN CANSDAH RL/2 30.1Ω EN/MODE CANSDAH 1% VCC VCC CM R SDA L/2 R 2.2µF PU RPU CANSDAL 30.1Ω 4.99k 4.99k 1% SDA SDA CANSDAL LT3960 CANSCLH RL/2 30.1Ω CANSCLH 1% SCL SCL CM R SCL L/2 CANSCLL 30.1Ω 1% GND CANSCLL 3960 F01
Figure 1. All Electrical Characteristic Measurements
VCC 5V 1µF VIN CANSDAH RL/2 30.1Ω EN/MODE CANSDAH 1% CL VCC VCC CM R SDA L/2 100pF R 2.2µF PU RPU CANSDAL 30.1Ω 4.7nF 1k 1k 1% SDA SDA CANSDAL LT3960 15pF CANSCLH RL/2 30.1Ω CANSCLH 1% SCL SCL CL CMSCL 15pF RL/2 100pF CANSCLL 30.1Ω 4.7nF 1% GND CANSCLL 3960 F02
Figure 2. All Switching Characteristic Measurements
Rev. 0 For more information www.analog.com 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Switching Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuits Timing Diagrams Operation Applications Information Typical Applications Typical Application Related Parts
