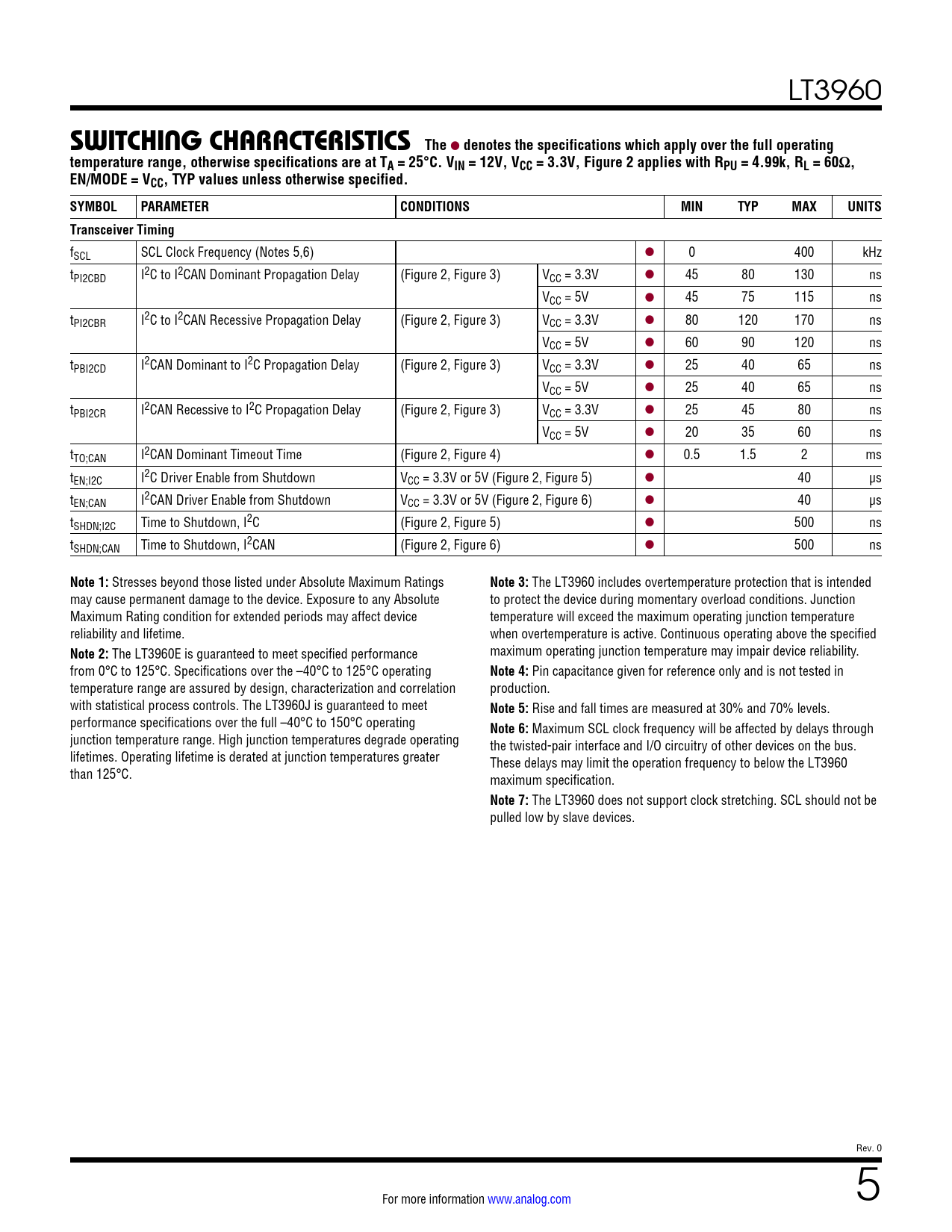

SWITCHING CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 9 link to page 10 link to page 9 link to page 10 link to page 9 link to page 10 link to page 9 link to page 10 link to page 9 link to page 10 link to page 9 link to page 10 link to page 9 link to page 10 link to page 9 link to page 10 link to page 9 link to page 10 link to page 9 link to page 2 LT3960
SWITCHING CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 12V, VCC = 3.3V, Figure 2 applies with R PU = 4.99k, RL = 60Ω, EN/MODE = VCC, TYP values unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Transceiver Timing
fSCL SCL Clock Frequency (Notes 5,6) l 0 400 kHz tPI2CBD I2C to I2CAN Dominant Propagation Delay (Figure 2, Figure 3) VCC = 3.3V l 45 80 130 ns VCC = 5V l 45 75 115 ns tPI2CBR I2C to I2CAN Recessive Propagation Delay (Figure 2, Figure 3) VCC = 3.3V l 80 120 170 ns VCC = 5V l 60 90 120 ns tPBI2CD I2CAN Dominant to I2C Propagation Delay (Figure 2, Figure 3) VCC = 3.3V l 25 40 65 ns VCC = 5V l 25 40 65 ns tPBI2CR I2CAN Recessive to I2C Propagation Delay (Figure 2, Figure 3) VCC = 3.3V l 25 45 80 ns VCC = 5V l 20 35 60 ns tTO;CAN I2CAN Dominant Timeout Time (Figure 2, Figure 4) l 0.5 1.5 2 ms tEN;I2C I2C Driver Enable from Shutdown VCC = 3.3V or 5V (Figure 2, Figure 5) l 40 µs tEN;CAN I2CAN Driver Enable from Shutdown VCC = 3.3V or 5V (Figure 2, Figure 6) l 40 µs tSHDN;I2C Time to Shutdown, I2C (Figure 2, Figure 5) l 500 ns tSHDN;CAN Time to Shutdown, I2CAN (Figure 2, Figure 6) l 500 ns
