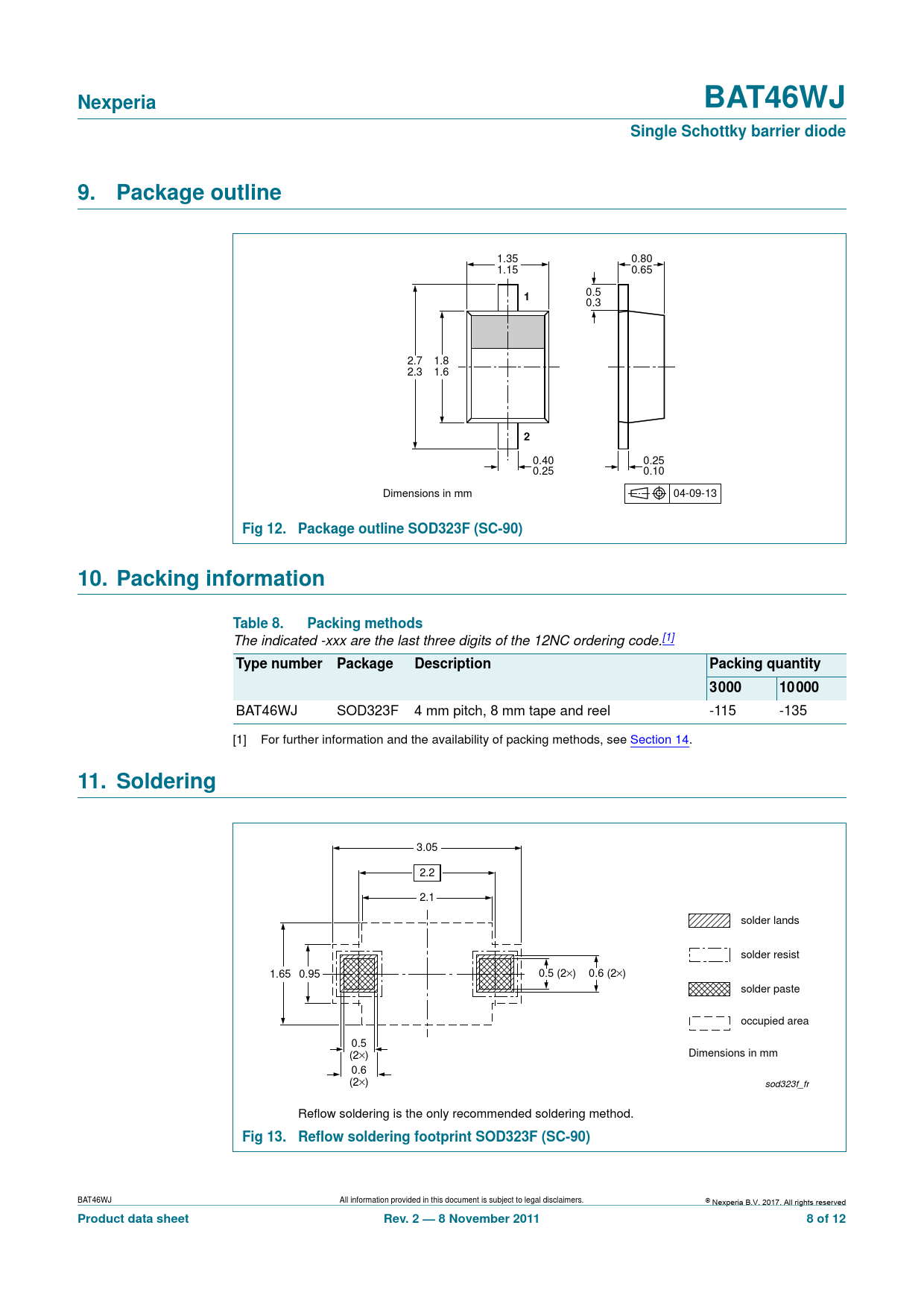

Nexperia BAT46WJ Single Schottky barrier diode 9. Package outline
1.35 0.80 1.15 0.65 0.5
1
0.3 2.7 1.8 2.3 1.6
2
0.40 0.25 0.25 0.10 Dimensions in mm 04-09-13
Fig 12. Package outline SOD323F (SC-90) 10. Packing information Table 8. Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.[1]
Type number Package Description Packing quantity 3000 10000
BAT46WJ SOD323F 4 mm pitch, 8 mm tape and reel -115 -135 [1] For further information and the availability of packing methods, see Section 14.
11. Soldering
3.05 2.2 2.1 solder lands solder resist 1.65 0.95 0.5 (2×) 0.6 (2×) solder paste occupied area 0.5 Dimensions in mm (2×) 0.6 (2×) sod323f_fr Reflow soldering is the only recommended soldering method.
Fig 13. Reflow soldering footprint SOD323F (SC-90)
BAT46WJ All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 2 — 8 November 2011 8 of 12
