MAX4389/MAX4390/ Ultra-Small, Low-Cost, 85MHz Op Amps with MAX4392–MAX4396 Rail-to-Rail Outputs and Disable

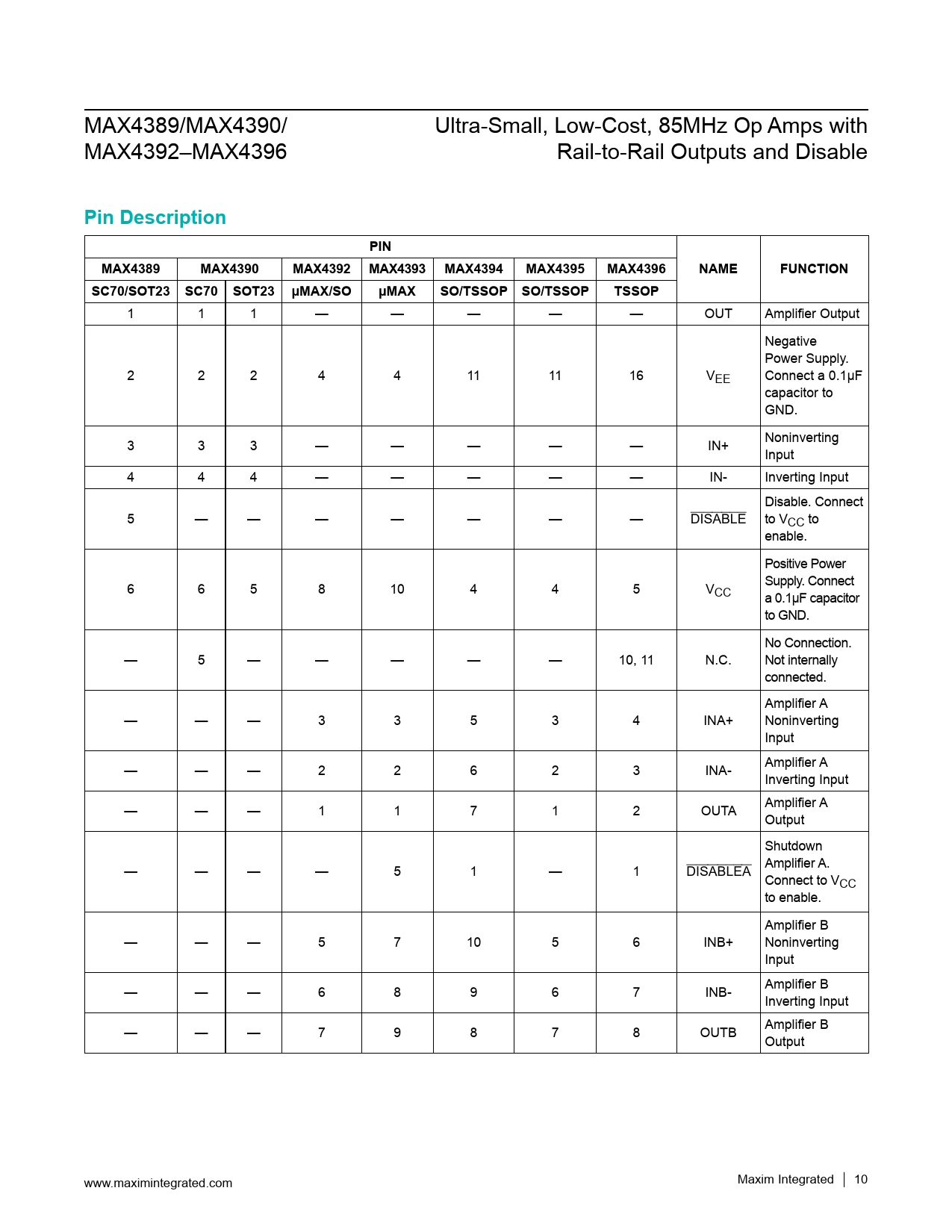

Pin Description PIN MAX4389 MAX4390 MAX4392 MAX4393 MAX4394 MAX4395 MAX4396 NAME FUNCTION SC70/SOT23 SC70 SOT23 µMAX/SO µMAX SO/TSSOP SO/TSSOP TSSOP
1 1 1 — — — — — OUT Amplifier Output Negative Power Supply. 2 2 2 4 4 11 11 16 VEE Connect a 0.1µF capacitor to GND. 3 3 3 — — — — — IN+ Noninverting Input 4 4 4 — — — — — IN- Inverting Input Disable. Connect 5 — — — — — — — DISABLE to VCC to enable. Positive Power 6 6 5 8 10 4 4 5 V Supply. Connect CC a 0.1µF capacitor to GND. No Connection. — 5 — — — — — 10, 11 N.C. Not internally connected. Amplifier A — — — 3 3 5 3 4 INA+ Noninverting Input — — — 2 2 6 2 3 INA- Amplifier A Inverting Input — — — 1 1 7 1 2 OUTA Amplifier A Output Shutdown — — — — 5 1 — 1 DISABLEA Amplifier A. Connect to VCC to enable. Amplifier B — — — 5 7 10 5 6 INB+ Noninverting Input — — — 6 8 9 6 7 INB- Amplifier B Inverting Input — — — 7 9 8 7 8 OUTB Amplifier B Output www.maximintegrated.com Maxim Integrated │ 10
