Datasheet T2035H-8I (STMicroelectronics) - 9
| Fabricante | STMicroelectronics |
| Descripción | 20 A - 800 V - 150°C H-series Triac in TO-220AB insulated |
| Páginas / Página | 11 / 9 — T2035H-8I. Ordering information. Figure 15. Ordering information scheme. … |
| Formato / tamaño de archivo | PDF / 272 Kb |
| Idioma del documento | Inglés |

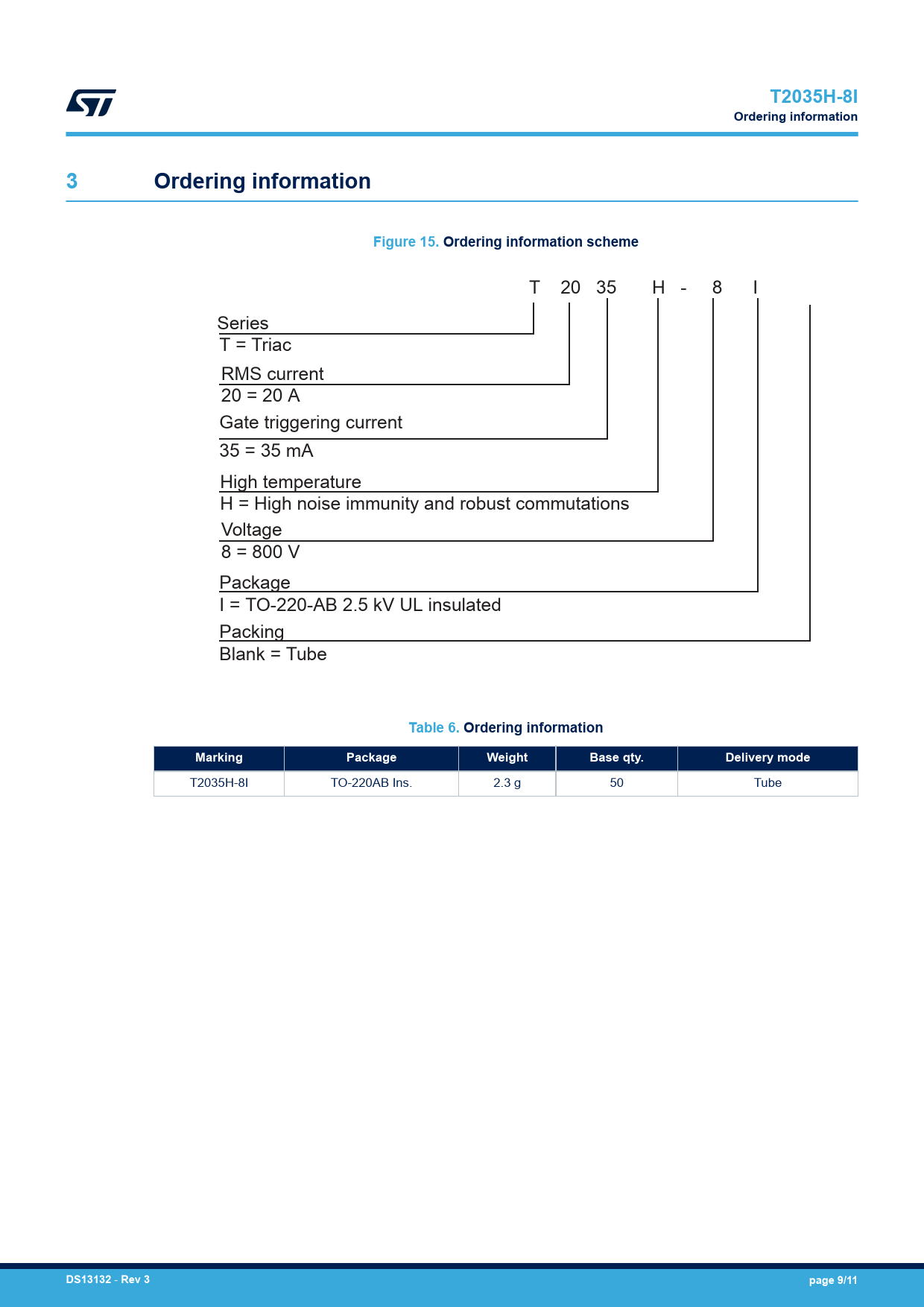

T2035H-8I. Ordering information. Figure 15. Ordering information scheme. Table 6. Ordering information. Marking. Package. Weight
Línea de modelo para esta hoja de datos
Versión de texto del documento
T2035H-8I Ordering information 3 Ordering information Figure 15. Ordering information scheme
T 20 35 H - 8 I Series T = Triac RMS current 20 = 20 A Gate triggering current 35 = 35 mA High temperature H = High noise immunity and robust commutations Voltage 8 = 800 V Package I = TO-220-AB 2.5 kV UL insulated Packing Blank = Tube
Table 6. Ordering information Marking Package Weight Base qty. Delivery mode
T2035H-8I TO-220AB Ins. 2.3 g 50 Tube
DS13132
-
Rev 3 page 9/11
Document Outline 1 Characteristics 1.1 Characteristics (curves) 2 Package information 2.1 TO-220AB insulated package information 3 Ordering information Revision history
