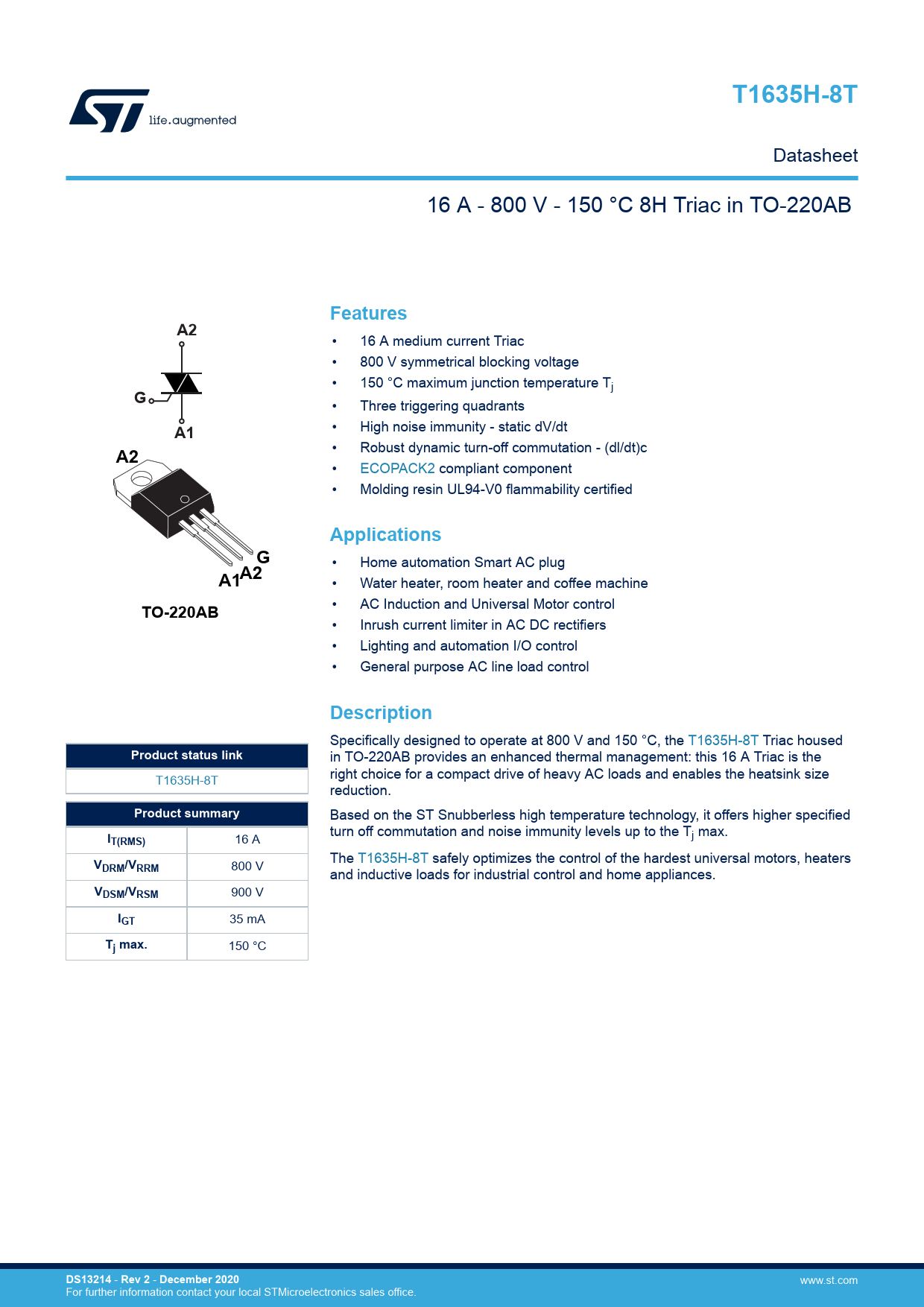

T1635H-8T
Datasheet 16 A - 800 V - 150 °C 8H Triac in TO-220AB
Features A2
• 16 A medium current Triac • 800 V symmetrical blocking voltage • 150 °C maximum junction temperature Tj
G
• Three triggering quadrants
A1
• High noise immunity - static dV/dt
A2
• Robust dynamic turn-off commutation - (dl/dt)c • ECOPACK2 compliant component • Molding resin UL94-V0 flammability certified
Applications G
• Home automation Smart AC plug
A1A2
• Water heater, room heater and coffee machine
TO-220AB
• AC Induction and Universal Motor control • Inrush current limiter in AC DC rectifiers • Lighting and automation I/O control • General purpose AC line load control
Description
Specifically designed to operate at 800 V and 150 °C, the T1635H-8T Triac housed
Product status link
in TO-220AB provides an enhanced thermal management: this 16 A Triac is the right choice for a compact drive of heavy AC loads and enables the heatsink size T1635H-8T reduction.
Product summary
Based on the ST Snubberless high temperature technology, it offers higher specified turn off commutation and noise immunity levels up to the Tj max.
IT(RMS)
16 A The T1635H-8T safely optimizes the control of the hardest universal motors, heaters
VDRM/VRRM
800 V and inductive loads for industrial control and home appliances.
VDSM/VRSM
900 V
IGT
35 mA
Tj max.
150 °C
DS13214
-
Rev 2
-
December 2020
