Datasheet SAM9X60 SIP (Microchip) - 8
| Fabricante | Microchip |
| Descripción | SAM9X60 System-In-Package (SIP) MPU with up to 1 Gbit DDR2 SDRAM and up to 64 Mbits SDR-SDRAM |
| Páginas / Página | 40 / 8 — SAM9X60 SIP. Configuration Summary. Feature. SAM9X60-D5M. SAM9X60-D1G. … |
| Formato / tamaño de archivo | PDF / 770 Kb |
| Idioma del documento | Inglés |
SAM9X60 SIP. Configuration Summary. Feature. SAM9X60-D5M. SAM9X60-D1G. SAM9X60-D6K. Datasheet
Línea de modelo para esta hoja de datos
Versión de texto del documento

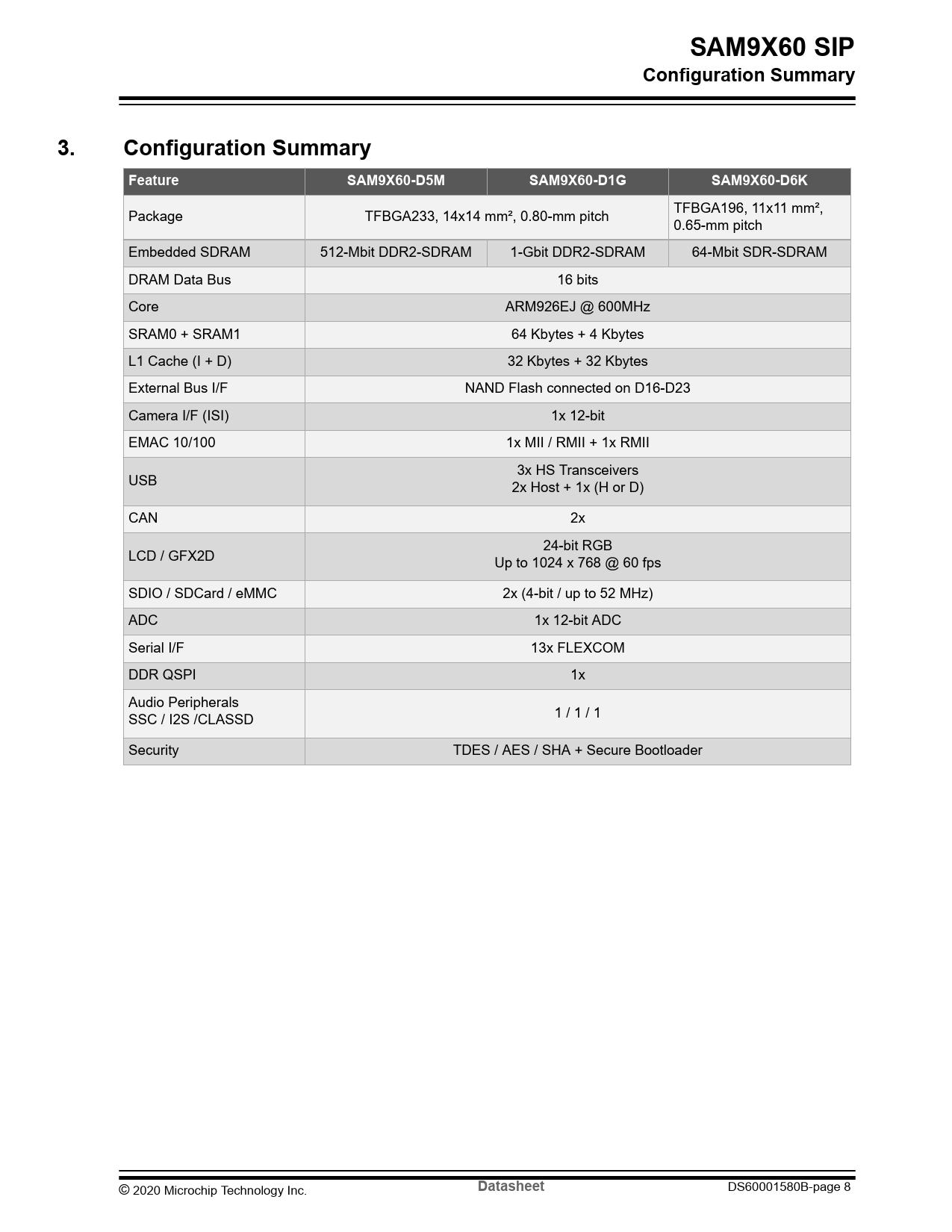

SAM9X60 SIP Configuration Summary 3. Configuration Summary Feature SAM9X60-D5M SAM9X60-D1G SAM9X60-D6K
TFBGA196, 11x11 mm², Package TFBGA233, 14x14 mm², 0.80-mm pitch 0.65-mm pitch Embedded SDRAM 512-Mbit DDR2-SDRAM 1-Gbit DDR2-SDRAM 64-Mbit SDR-SDRAM DRAM Data Bus 16 bits Core ARM926EJ @ 600MHz SRAM0 + SRAM1 64 Kbytes + 4 Kbytes L1 Cache (I + D) 32 Kbytes + 32 Kbytes External Bus I/F NAND Flash connected on D16-D23 Camera I/F (ISI) 1x 12-bit EMAC 10/100 1x MII / RMII + 1x RMII 3x HS Transceivers USB 2x Host + 1x (H or D) CAN 2x 24-bit RGB LCD / GFX2D Up to 1024 x 768 @ 60 fps SDIO / SDCard / eMMC 2x (4-bit / up to 52 MHz) ADC 1x 12-bit ADC Serial I/F 13x FLEXCOM DDR QSPI 1x Audio Peripherals SSC / I2S /CLASSD 1 / 1 / 1 Security TDES / AES / SHA + Secure Bootloader © 2020 Microchip Technology Inc.
