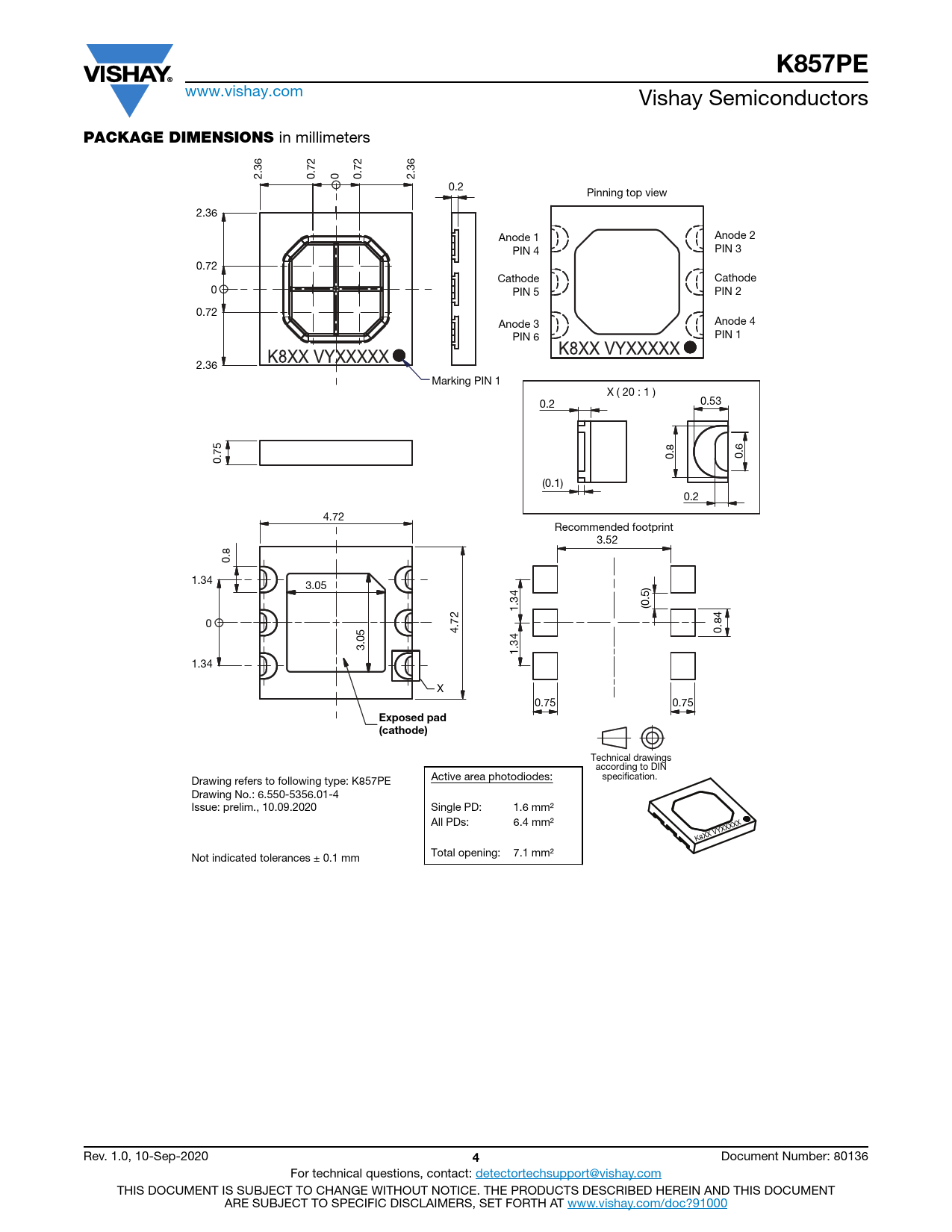

K857PE. PACKAGE DIMENSIONS. Exposed pad (cathode)
Línea de modelo para esta hoja de datos
Versión de texto del documento
K857PE
www.vishay.com Vishay Semiconductors
PACKAGE DIMENSIONS
in millimeters 2.36 0.72 0 0.72 2.36 0.2 Pinning top view 2.36 Anode 1 Anode 2 PIN 4 PIN 3 0.72 Cathode Cathode 0 PIN 5 PIN 2 0.72 Anode 3 Anode 4 PIN 6 PIN 1 2.36 Marking PIN 1 X ( 20 : 1 ) 0.2 0.53 0.75 0.8 0.6 (0.1) 0.2 4.72 Recommended footprint 3.52 0.8 1.34 3.05 1.34 (0.5) 0 4.72 0.84 3.05 1.34 1.34 X 0.75 0.75
Exposed pad (cathode)
Technical drawings according to DIN specification. Drawing refers to following type: K857PE Active area photodiodes: Drawing No.: 6.550-5356.01-4 Issue: prelim., 10.09.2020 Single PD: 1.6 mm2 All PDs: 6.4 mm2 K8XX VYXXXXX Not indicated tolerances ± 0.1 mm Total opening: 7.1 mm2 Rev. 1.0, 10-Sep-2020
4
Document Number: 80136 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
