Datasheet DFLS2100 (Diodes)
| Fabricante | Diodes |
| Descripción | 2.0A High Voltage Schottky Barrier Rectifier |
| Páginas / Página | 5 / 1 — Green. DFLS2100. 2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER. Product … |
| Formato / tamaño de archivo | PDF / 208 Kb |
| Idioma del documento | Inglés |
Green. DFLS2100. 2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER. Product Summary. Features and Benefits. RRM (V). IO (A)
Línea de modelo para esta hoja de datos
Versión de texto del documento

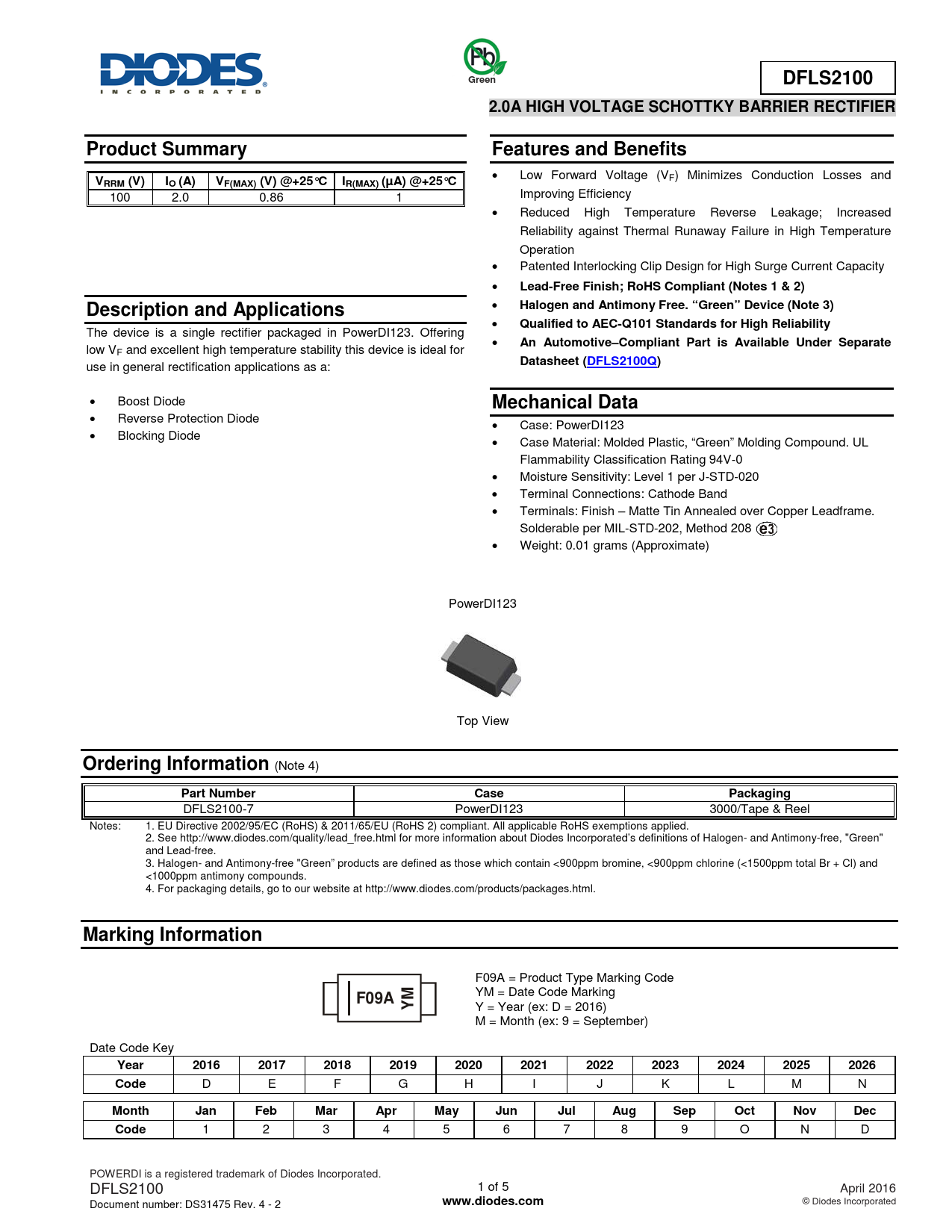

Green DFLS2100 2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER Product Summary Features and Benefits
• Low Forward Voltage (V
V
F) Minimizes Conduction Losses and
RRM (V) IO (A) VF(MAX) (V) @+25°C IR(MAX) (µA) @+25°C
100 2.0 0.86 1 Improving Efficiency • Reduced High Temperature Reverse Leakage; Increased Reliability against Thermal Runaway Failure in High Temperature Operation • Patented Interlocking Clip Design for High Surge Current Capacity •
Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Description and Applications
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
The device is a single rectifier packaged in PowerDI123. Offering •
An Automotive–Compliant Part is Available Under Separate
low VF and excellent high temperature stability this device is ideal for
Datasheet (DFLS2100Q)
use in general rectification applications as a: • Boost Diode
Mechanical Data
• Reverse Protection Diode • Case: PowerDI123 • Blocking Diode • Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminal Connections: Cathode Band • Terminals: Finish – Matte Tin Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208 • Weight: 0.01 grams (Approximate) PowerDI123 Top View
Ordering Information
(Note 4)
Part Number Case Packaging
DFLS2100-7 PowerDI123 3000/Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
F09A = Product Type Marking Code YM = Date Code Marking
F09A M Y
Y = Year (ex: D = 2016) M = Month (ex: 9 = September) Date Code Key
Year 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 Code
D E F G H I J K L M N
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D POWERDI is a registered trademark of Diodes Incorporated. DFLS2100 1 of 5 April 2016 Document number: DS31475 Rev. 4 - 2
www.diodes.com
© Diodes Incorporated Document Outline Features and Benefits Product Summary Description and Applications Mechanical Data Marking Information Package Outline Dimensions PowerDI123 Suggested Pad Layout
