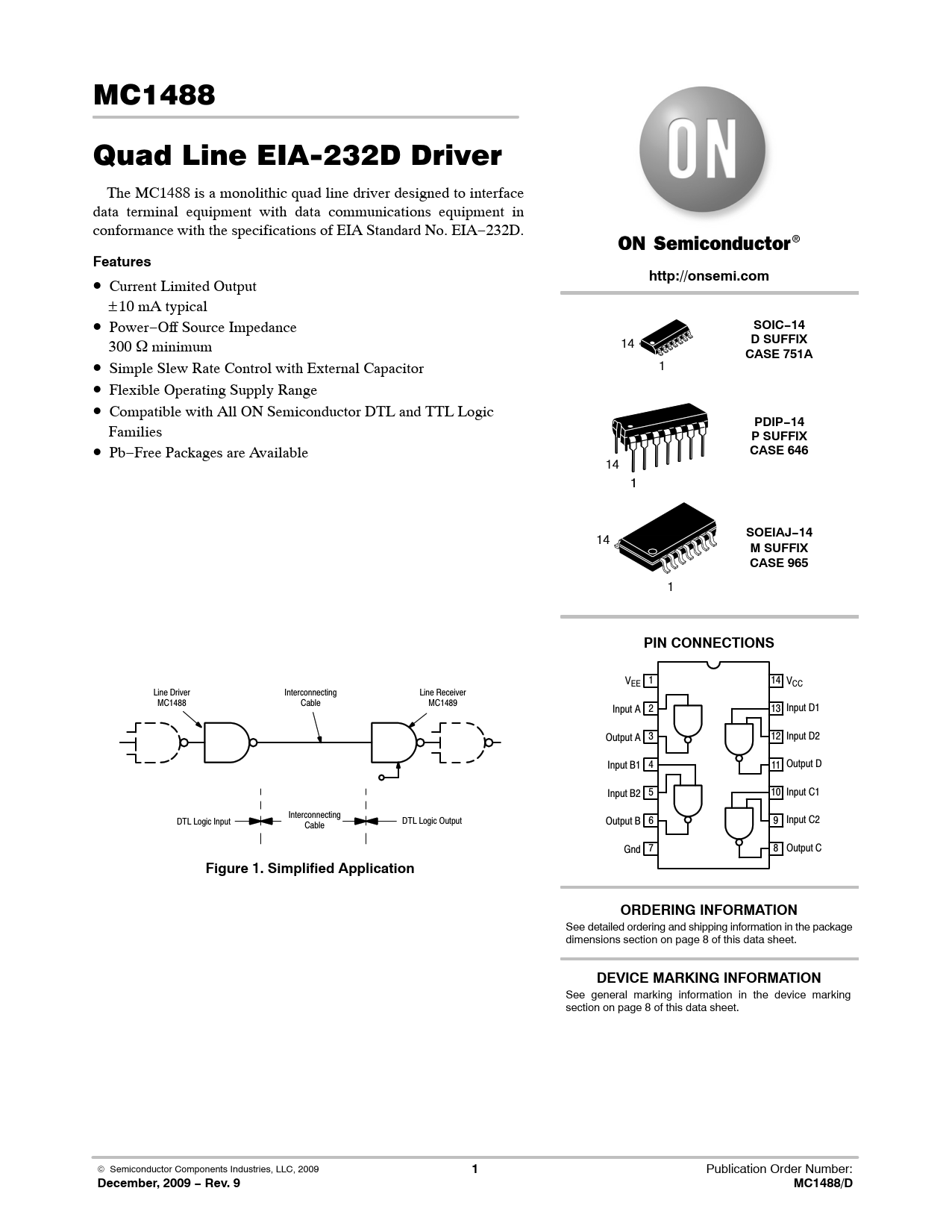

link to page 8 link to page 8 MC1488 Quad Line EIA-232D Driver The MC1488 is a monolithic quad line driver designed to interface data terminal equipment with data communications equipment in conformance with the specifications of EIA Standard No. EIA−232D.
Features
•
http://onsemi.com
Current Limited Output ±10 mA typical • Power−Off Source Impedance
SOIC−14
300 W minimum
D SUFFIX
14
CASE 751A
• Simple Slew Rate Control with External Capacitor 1 • Flexible Operating Supply Range • Compatible with All ON Semiconductor DTL and TTL Logic
PDIP−14
Families
P SUFFIX
• Pb−Free Packages are Available
CASE 646
14 1 14
SOEIAJ−14 M SUFFIX CASE 965
1
PIN CONNECTIONS
V 1 14 V EE CC Line Driver Interconnecting Line Receiver MC1488 Cable MC1489 Input A 2 13 Input D1 Output A 3 12 Input D2 Input B1 4 11 Output D Input B2 5 10 Input C1 Interconnecting DTL Logic Input DTL Logic Output Output B 6 9 Input C2 Cable Gnd 7 8 Output C
Figure 1. Simplified Application ORDERING INFORMATION
See detailed ordering and shipping information in the package dimensions section on page 8 of this data sheet.
DEVICE MARKING INFORMATION
See general marking information in the device marking section on page 8 of this data sheet. © Semiconductor Components Industries, LLC, 2009
1
Publication Order Number:
December, 2009 − Rev. 9 MC1488/D
