BLP2425M10S250P Power LDMOS transistor
OMP-780-4F-1 Drawing Notes Items Description Dimensions are excluding mold protrusion. All areas located adjacent to the leads have a maximum mold protrusion of 0.25 (1) mm (per side) and max. 0.62 mm in length. At all other areas the mold protrusion is maximum 0.15 mm per side. See also detail B. (2) The metal protrusion (tie bars) in the corner will not stick out of the molding compound protrusions (detail A). (3) The lead dambar (metal) protrusions are not included. Add 0.14 mm max to the total lead dimension at the dambar location. (4) The lead coplanarity over all leads is 0.1 mm maximum. (5) Dimension is measured 0.5 mm from the edge of the top package body. (6) The hatched area indicates the exposed metal heatsink. (7) The leads and exposed heatsink are plated with matte Tin (Sn). location of metal protrusion (2) DETAIL A SCALE 25:1 B A lead dambar location 0.25 max. (1) 0.15 max. (1) 0.62 max. (1) DETAIL B SCALE 50:1 0 Package outline drawing: Tolerances unless otherwise stated: Revision: Dimension: B 0.05 Angle: B 1° Revision date: 3/1/2018 units in mm. OMP-780-4F-1 Third angle projection Sheet 2 of 2

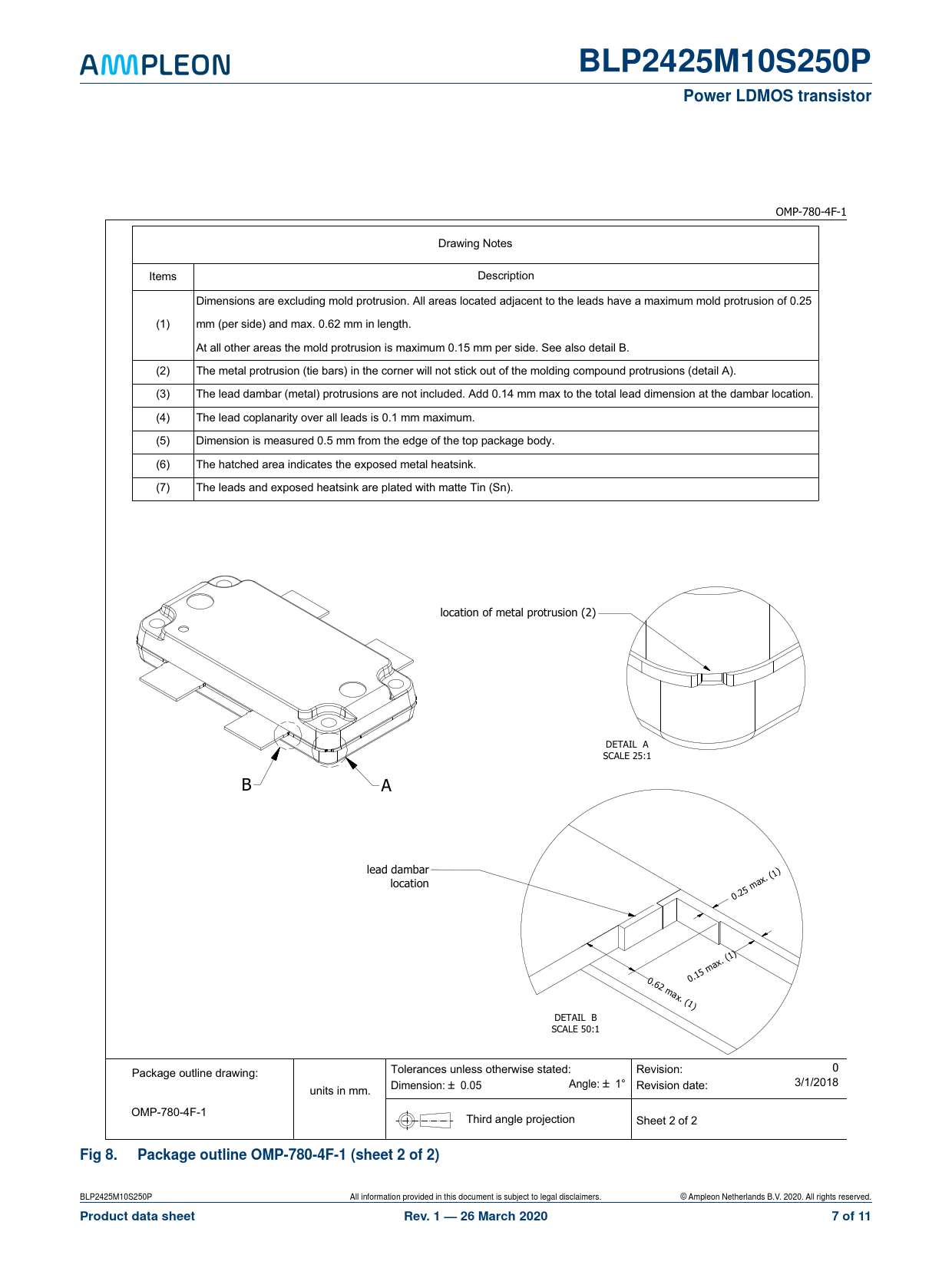

Fig 8. Package outline OMP-780-4F-1 (sheet 2 of 2)
