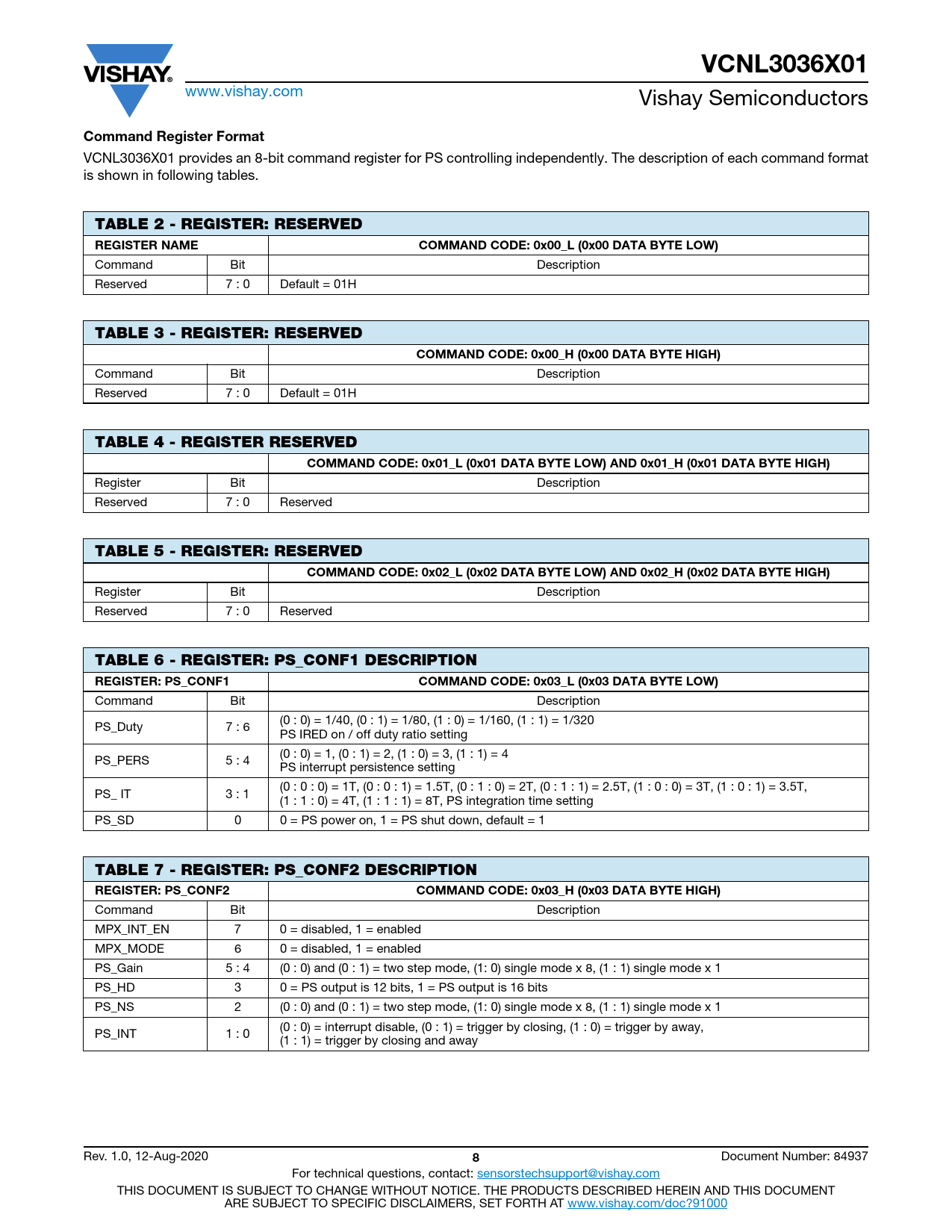

VCNL3036X01
www.vishay.com Vishay Semiconductors
Command Register Format
VCNL3036X01 provides an 8-bit command register for PS controlling independently. The description of each command format is shown in following tables.
TABLE 2 - REGISTER: RESERVED REGISTER NAME COMMAND CODE: 0x00_L (0x00 DATA BYTE LOW)
Command Bit Description Reserved 7 : 0 Default = 01H
TABLE 3 - REGISTER: RESERVED COMMAND CODE: 0x00_H (0x00 DATA BYTE HIGH)
Command Bit Description Reserved 7 : 0 Default = 01H
TABLE 4 - REGISTER RESERVED COMMAND CODE: 0x01_L (0x01 DATA BYTE LOW) AND 0x01_H (0x01 DATA BYTE HIGH)
Register Bit Description Reserved 7 : 0 Reserved
TABLE 5 - REGISTER: RESERVED COMMAND CODE: 0x02_L (0x02 DATA BYTE LOW) AND 0x02_H (0x02 DATA BYTE HIGH)
Register Bit Description Reserved 7 : 0 Reserved
TABLE 6 - REGISTER: PS_CONF1 DESCRIPTION REGISTER: PS_CONF1 COMMAND CODE: 0x03_L (0x03 DATA BYTE LOW)
Command Bit Description (0 : 0) = 1/40, (0 : 1) = 1/80, (1 : 0) = 1/160, (1 : 1) = 1/320 PS_Duty 7 : 6 PS IRED on / off duty ratio setting (0 : 0) = 1, (0 : 1) = 2, (1 : 0) = 3, (1 : 1) = 4 PS_PERS 5 : 4 PS interrupt persistence setting (0 : 0 : 0) = 1T, (0 : 0 : 1) = 1.5T, (0 : 1 : 0) = 2T, (0 : 1 : 1) = 2.5T, (1 : 0 : 0) = 3T, (1 : 0 : 1) = 3.5T, PS_ IT 3 : 1 (1 : 1 : 0) = 4T, (1 : 1 : 1) = 8T, PS integration time setting PS_SD 0 0 = PS power on, 1 = PS shut down, default = 1
TABLE 7 - REGISTER: PS_CONF2 DESCRIPTION REGISTER: PS_CONF2 COMMAND CODE: 0x03_H (0x03 DATA BYTE HIGH)
Command Bit Description MPX_INT_EN 7 0 = disabled, 1 = enabled MPX_MODE 6 0 = disabled, 1 = enabled PS_Gain 5 : 4 (0 : 0) and (0 : 1) = two step mode, (1: 0) single mode x 8, (1 : 1) single mode x 1 PS_HD 3 0 = PS output is 12 bits, 1 = PS output is 16 bits PS_NS 2 (0 : 0) and (0 : 1) = two step mode, (1: 0) single mode x 8, (1 : 1) single mode x 1 (0 : 0) = interrupt disable, (0 : 1) = trigger by closing, (1 : 0) = trigger by away, PS_INT 1 : 0 (1 : 1) = trigger by closing and away Rev. 1.0, 12-Aug-2020
8
Document Number: 84937 For technical questions, contact: sensorstechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
