SLG46826
GreenPAK Programmable Mixed-Signal Matrix with In-System Programmability

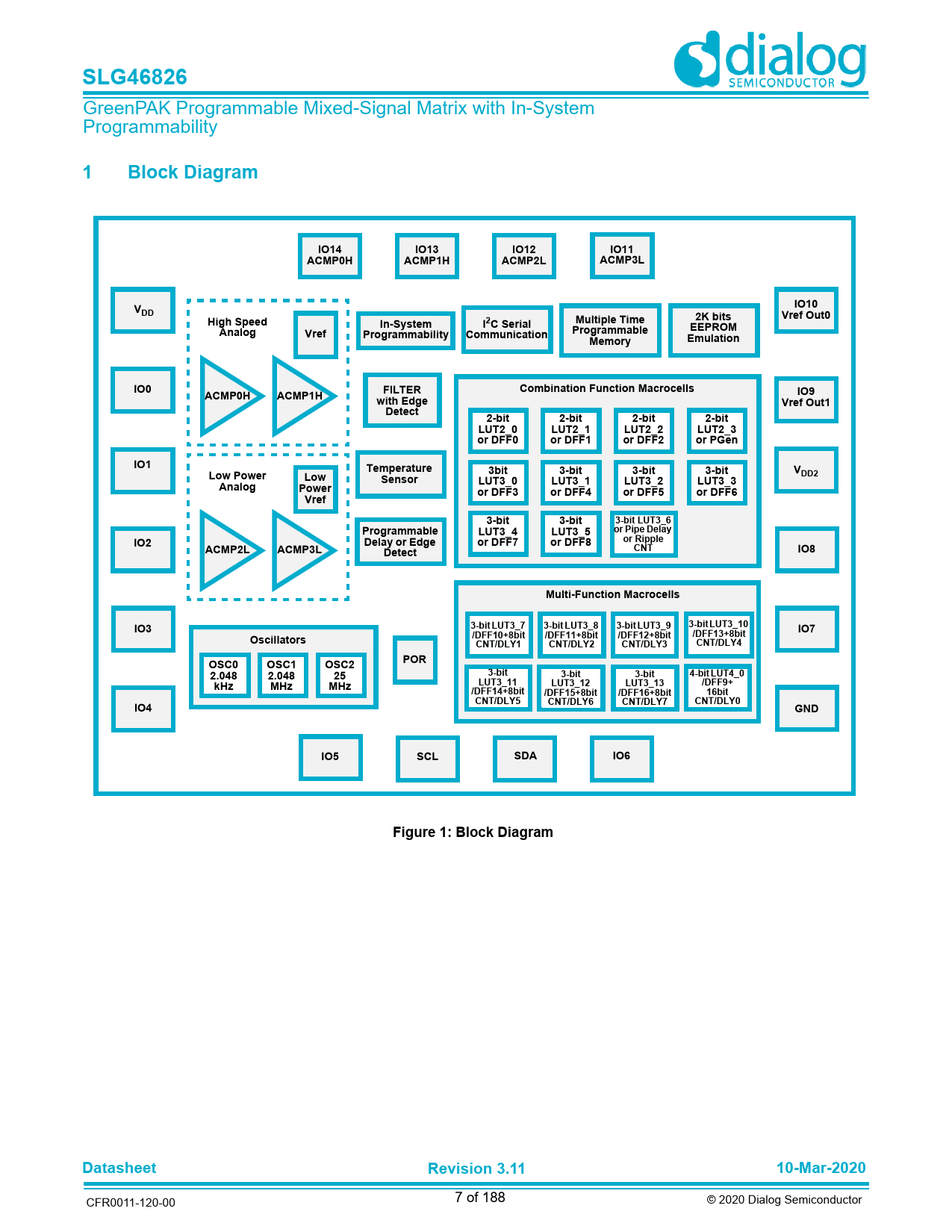

1 Block Diagram IO14 IO13 IO12 IO11 ACMP0H ACMP1H ACMP2L ACMP3L IO10 VDD 2K bits Vref Out0 High Speed In-System I2C Serial Multiple Time EEPROM Analog Vref Programmability Communication Programmable Memory Emulation IO0 FILTER Combination Function Macrocells ACMP0H ACMP1H IO9 with Edge Vref Out1 Detect 2-bit 2-bit 2-bit 2-bit LUT2_0 LUT2_1 LUT2_2 LUT2_3 or DFF0 or DFF1 or DFF2 or PGen IO1 Temperature 3bit 3-bit 3-bit 3-bit VDD2 Low Power Low Sensor LUT3_0 LUT3_1 LUT3_2 LUT3_3 Analog Power or DFF3 or DFF4 or DFF5 or DFF6 Vref 3-bit 3-bit 3-bit LUT3_6 Programmable LUT3_4 LUT3_5 or Pipe Delay IO2 Delay or Edge or DFF7 or DFF8 or Ripple ACMP2L ACMP3L Detect CNT IO8 Multi-Function Macrocells 3-bit LUT3_7 3-bit LUT3_8 3-bit LUT3_9 3-bit LUT3_10 IO3 IO7 /DFF10+8bit /DFF11+8bit /DFF12+8bit /DFF13+8bit Oscillators CNT/DLY1 CNT/DLY2 CNT/DLY3 CNT/DLY4 POR OSC0 OSC1 OSC2 3-bit 3-bit 3-bit 4-bit LUT4_0 2.048 2.048 25 LUT3_11 LUT3_12 LUT3_13 /DFF9+ kHz MHz MHz /DFF14+8bit /DFF15+8bit /DFF16+8bit 16bit CNT/DLY5 CNT/DLY6 CNT/DLY7 CNT/DLY0 IO4 GND IO5 SCL SDA IO6 Figure 1: Block Diagram Datasheet Revision 3.11 10-Mar-2020
