Datasheet STGAP2HS (STMicroelectronics) - 7
| Fabricante | STMicroelectronics |
| Descripción | Galvanically isolated 4 A single gate driver |
| Páginas / Página | 24 / 7 — STGAP2HS. Isolation. Table 6. Isolation and safety-related … |
| Formato / tamaño de archivo | PDF / 466 Kb |
| Idioma del documento | Inglés |
STGAP2HS. Isolation. Table 6. Isolation and safety-related specifications. Parameter. Symbol. Value. Unit. Conditions
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3

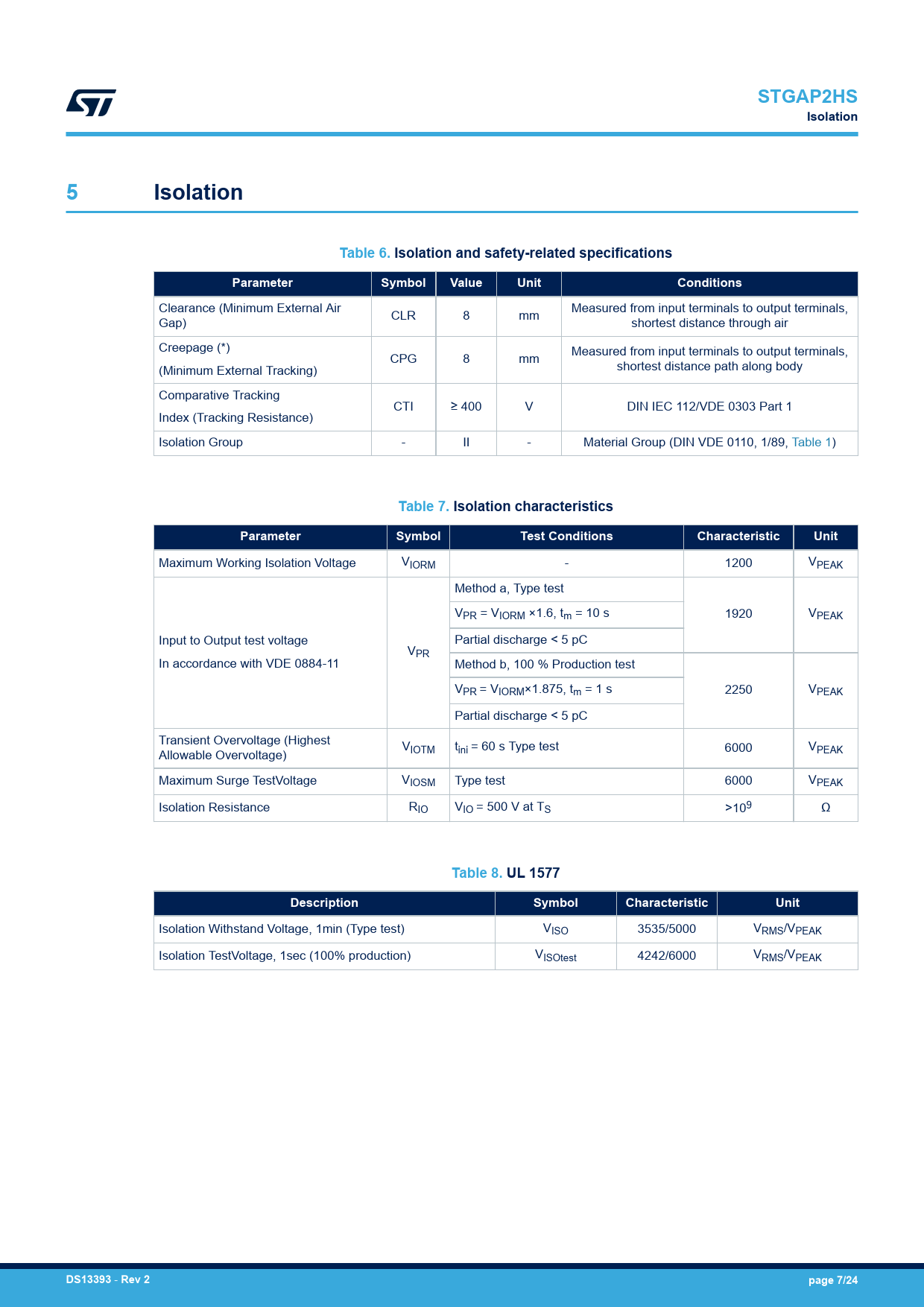

STGAP2HS Isolation 5 Isolation Table 6. Isolation and safety-related specifications Parameter Symbol Value Unit Conditions
Clearance (Minimum External Air Measured from input terminals to output terminals, CLR 8 mm Gap) shortest distance through air Creepage (*) Measured from input terminals to output terminals, CPG 8 mm (Minimum External Tracking) shortest distance path along body Comparative Tracking CTI ≥ 400 V DIN IEC 112/VDE 0303 Part 1 Index (Tracking Resistance) Isolation Group - II - Material Group (DIN VDE 0110, 1/89, Table 1)
Table 7. Isolation characteristics Parameter Symbol Test Conditions Characteristic Unit
Maximum Working Isolation Voltage VIORM - 1200 VPEAK Method a, Type test VPR = VIORM ×1.6, tm = 10 s 1920 VPEAK Input to Output test voltage Partial discharge < 5 pC VPR In accordance with VDE 0884-11 Method b, 100 % Production test VPR = VIORM×1.875, tm = 1 s 2250 VPEAK Partial discharge < 5 pC Transient Overvoltage (Highest V Allowable Overvoltage) IOTM tini = 60 s Type test 6000 VPEAK Maximum Surge TestVoltage VIOSM Type test 6000 VPEAK Isolation Resistance RIO VIO = 500 V at TS >109 Ω
Table 8. UL 1577 Description Symbol Characteristic Unit
Isolation Withstand Voltage, 1min (Type test) VISO 3535/5000 VRMS/VPEAK Isolation TestVoltage, 1sec (100% production) VISOtest 4242/6000 VRMS/VPEAK
DS13393
-
Rev 2 page 7/24
