Datasheet IQE013N04LM6 (Infineon) - 5
| Fabricante | Infineon |
| Descripción | OptiMOS Power-MOSFET, 40V |
| Páginas / Página | 13 / 5 — OptiMOSTMPower-MOSFET,40V IQE013N04LM6. Table7Reversediode. Values. … |
| Revisión | 02_00 |
| Formato / tamaño de archivo | PDF / 1.4 Mb |
| Idioma del documento | Inglés |

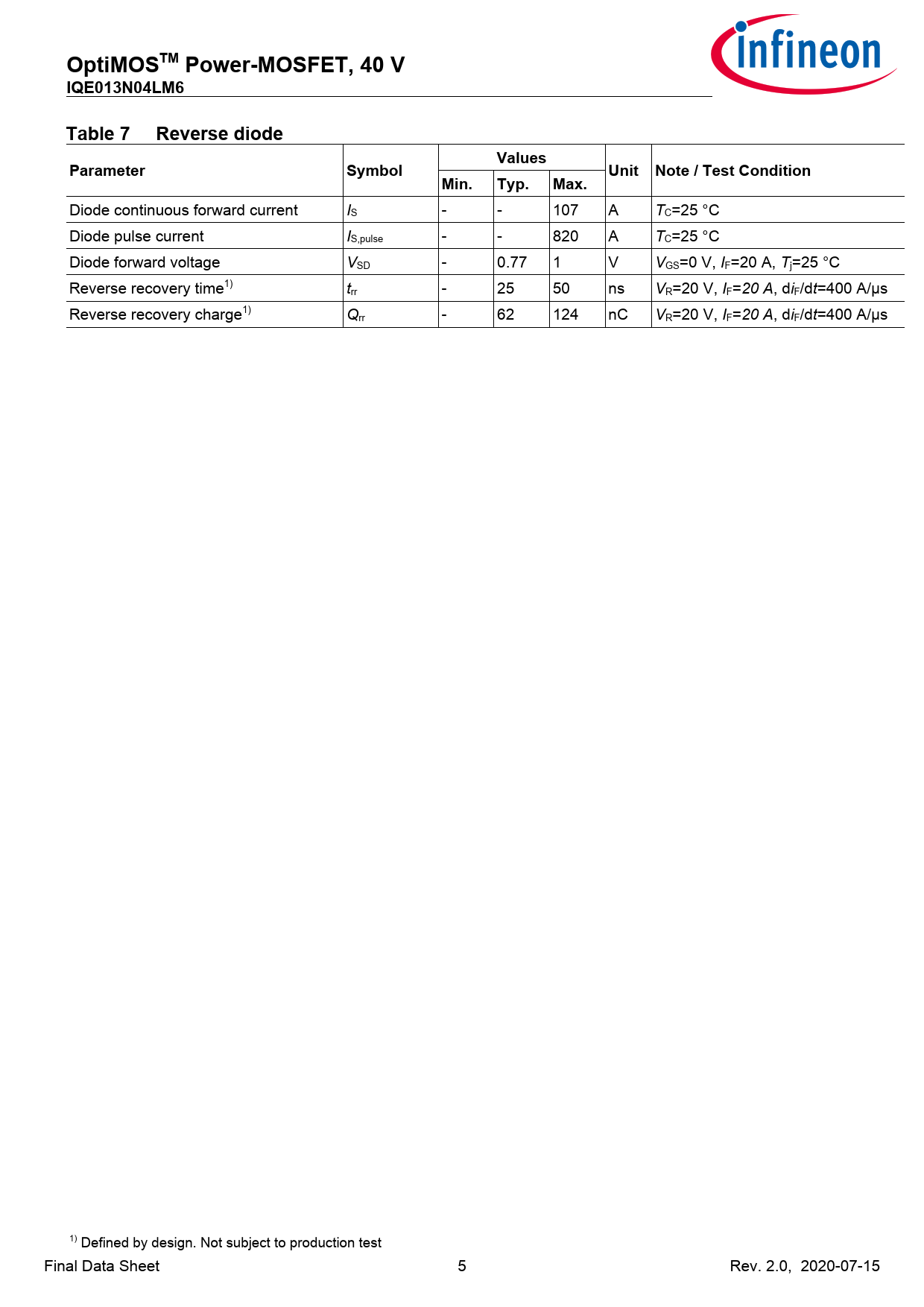

OptiMOSTMPower-MOSFET,40V IQE013N04LM6. Table7Reversediode. Values. Parameter. Symbol. Unit Note/TestCondition. Min. Typ. Max
Línea de modelo para esta hoja de datos
Versión de texto del documento
OptiMOSTMPower-MOSFET,40V IQE013N04LM6 Table7Reversediode Values Parameter Symbol Unit Note/TestCondition Min. Typ. Max.
Diode continuous forward current IS - - 107 A TC=25°C Diode pulse current IS,pulse - - 820 A TC=25°C Diode forward voltage VSD - 0.77 1 V VGS=0V,IF=20A,Tj=25°C Reverse recovery time1) trr - 25 50 ns VR=20V,IF=20A,diF/dt=400A/µs Reverse recovery charge1) Qrr - 62 124 nC VR=20V,IF=20A,diF/dt=400A/µs 1) Defined by design. Not subject to production test Final Data Sheet 5 Rev.2.0,2020-07-15 Document Outline Description Table of Contents Maximum ratings Thermal characteristics Electrical characteristics Static characteristics Dynamic characteristics Gate charge characteristics Reverse diode Electrical characteristics diagrams Electrical characteristics diagrams Electrical characteristics diagrams Electrical characteristics diagrams Package Outlines Revision History Trademarks Disclaimer
Diode continuous forward current IS - - 107 A TC=25°C Diode pulse current IS,pulse - - 820 A TC=25°C Diode forward voltage VSD - 0.77 1 V VGS=0V,IF=20A,Tj=25°C Reverse recovery time1) trr - 25 50 ns VR=20V,IF=20A,diF/dt=400A/µs Reverse recovery charge1) Qrr - 62 124 nC VR=20V,IF=20A,diF/dt=400A/µs 1) Defined by design. Not subject to production test Final Data Sheet 5 Rev.2.0,2020-07-15 Document Outline Description Table of Contents Maximum ratings Thermal characteristics Electrical characteristics Static characteristics Dynamic characteristics Gate charge characteristics Reverse diode Electrical characteristics diagrams Electrical characteristics diagrams Electrical characteristics diagrams Electrical characteristics diagrams Package Outlines Revision History Trademarks Disclaimer
