Datasheet MAX6001, MAX6002, MAX6003, MAX6004, MAX6005 (Analog Devices) - 6

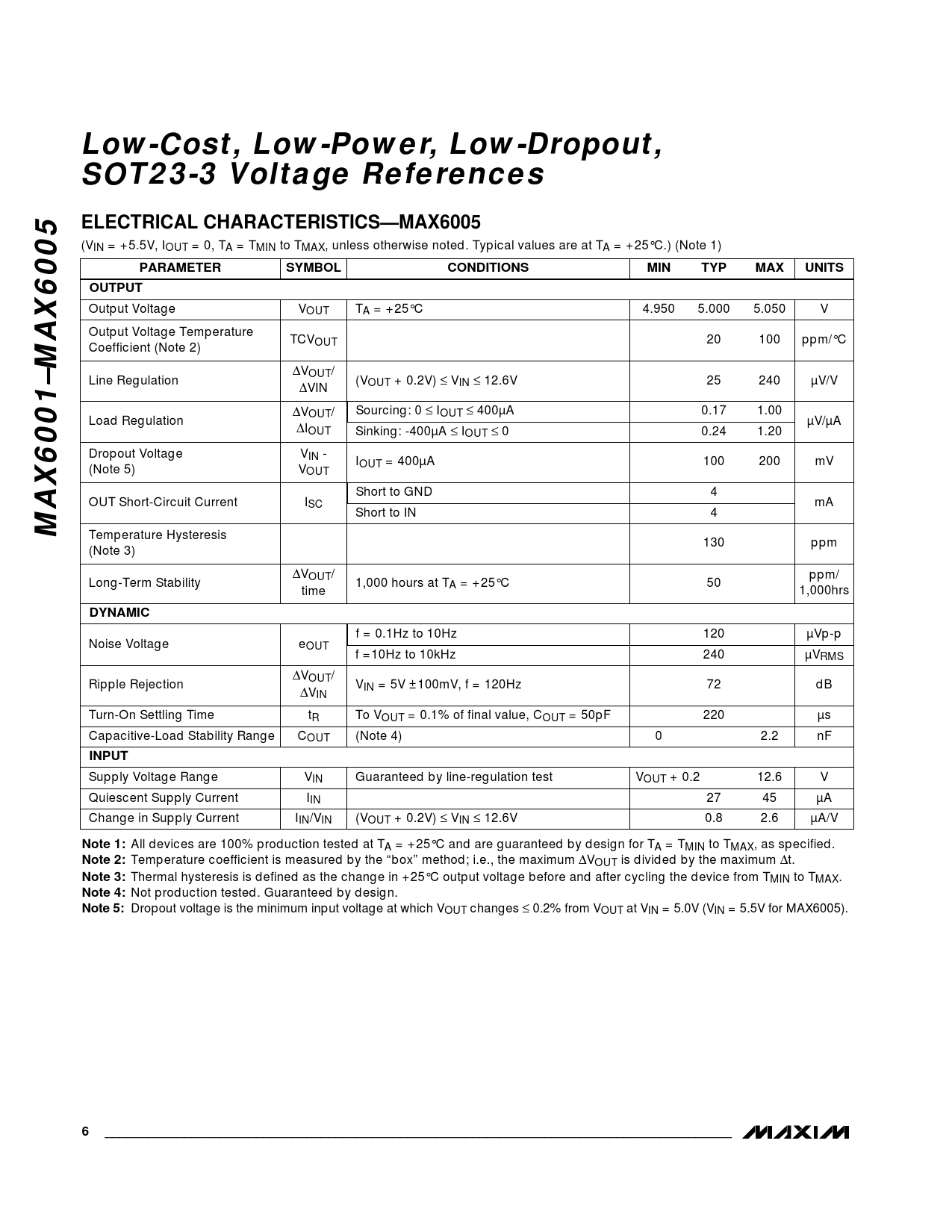

Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References ELECTRICAL CHARACTERISTICS—MAX6005
(VIN = +5.5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
OUTPUT
OUTPUT
Output Voltage VOUT TA = +25°C 4.950 5.000 5.050 V Output Voltage Temperature TCVOUT 20 100 ppm/°C Coefficient (Note 2) ∆VOUT/ Line Regulation ∆ (VOUT + 0.2V) ≤ VIN ≤ 12.6V 25 240 µV/V VIN ∆VOUT/ Sourcing: 0 ≤ IOUT ≤ 400µA 0.17 1.00 Load Regulation ∆ µV/µA IOUT Sinking: -400µA ≤ IOUT ≤ 0 0.24 1.20 Dropout Voltage VIN - IOUT = 400µA 100 200 mV (Note 5) VOUT Short to GND 4 OUT Short-Circuit Current ISC mA Short to IN 4
MAX6001–MAX6005
Temperature Hysteresis 130 ppm (Note 3) ∆VOUT/ ppm/ Long-Term Stability 1,000 hours at TA = +25°C 50 time 1,000hrs DYNAMIC f = 0.1Hz to 10Hz 120 µVp-p Noise Voltage eOUT f =10Hz to 10kHz 240 µVRMS ∆VOUT/ Ripple Rejection ∆ VIN = 5V ±100mV, f = 120Hz 72 dB VIN Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 220 µs Capacitive-Load Stability Range COUT (Note 4) 0 2.2 nF INPUT Supply Voltage Range VIN Guaranteed by line-regulation test VOUT + 0.2 12.6 V Quiescent Supply Current IIN 27 45 µA Change in Supply Current IIN/VIN (VOUT + 0.2V) ≤ VIN ≤ 12.6V 0.8 2.6 µA/V
Note 1:
All devices are 100% production tested at TA = +25°C and are guaranteed by design for TA = TMIN to TMAX, as specified.
Note 2:
Temperature coefficient is measured by the “box” method; i.e., the maximum ∆VOUT is divided by the maximum ∆t.
Note 3:
Thermal hysteresis is defined as the change in +25°C output voltage before and after cycling the device from TMIN to TMAX.
Note 4:
Not production tested. Guaranteed by design.
Note 5:
Dropout voltage is the minimum input voltage at which VOUT changes ≤ 0.2% from VOUT at VIN = 5.0V (VIN = 5.5V for MAX6005).
6 _______________________________________________________________________________________
