Datasheet MAX6001, MAX6002, MAX6003, MAX6004, MAX6005 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References |
| Páginas / Página | 12 / 2 — Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References. ABSOLUTE … |
| Formato / tamaño de archivo | PDF / 200 Kb |
| Idioma del documento | Inglés |
Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References. ABSOLUTE MAXIMUM RATINGS. ELECTRICAL CHARACTERISTICS—MAX6001
Línea de modelo para esta hoja de datos
Versión de texto del documento

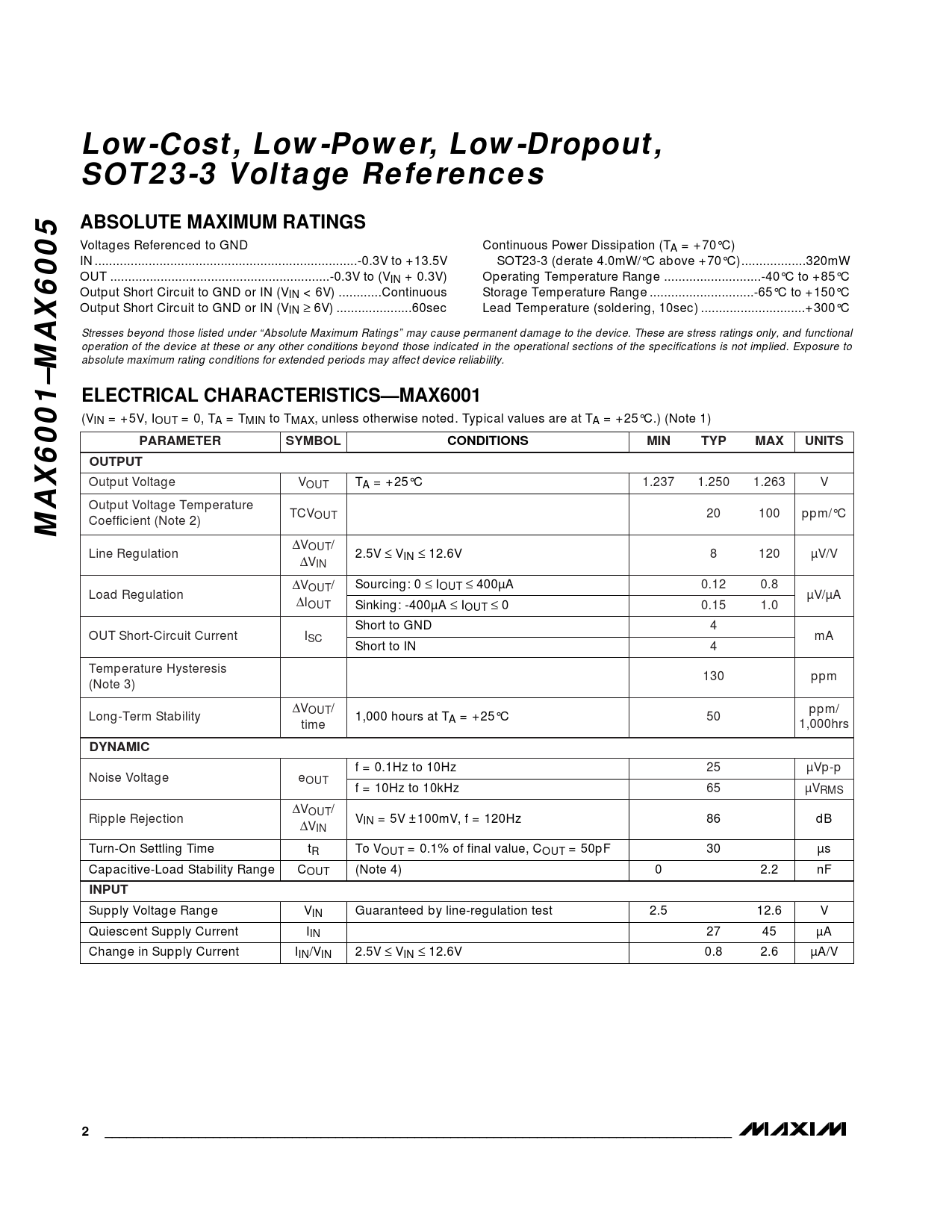

Low-Cost, Low-Power, Low-Dropout, SOT23-3 Voltage References ABSOLUTE MAXIMUM RATINGS
Voltages Referenced to GND Continuous Power Dissipation (TA = +70°C) IN ...-0.3V to +13.5V SOT23-3 (derate 4.0mW/°C above +70°C)..320mW OUT ...-0.3V to (VIN + 0.3V) Operating Temperature Range ...-40°C to +85°C Output Short Circuit to GND or IN (VIN < 6V) ..Continuous Storage Temperature Range ...-65°C to +150°C Output Short Circuit to GND or IN (VIN ≥ 6V) ...60sec Lead Temperature (soldering, 10sec) ...+300°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS—MAX6001
(VIN = +5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
Output Voltage VOUT TA = +25°C 1.237 1.250 1.263 V Output Voltage Temperature TCVOUT 20 100 ppm/°C
MAX6001–MAX6005
Coefficient (Note 2) ∆VOUT/ Line Regulation 2.5V ≤ VIN ≤ 12.6V 8 120 µV/V ∆VIN ∆V Sourcing: 0 OUT/ ≤ IOUT ≤ 400µA 0.12 0.8 Load Regulation ∆ µV/µA IOUT Sinking: -400µA ≤ IOUT ≤ 0 0.15 1.0 Short to GND 4 OUT Short-Circuit Current ISC mA Short to IN 4 Temperature Hysteresis 130 ppm (Note 3) ∆VOUT/ ppm/ Long-Term Stability 1,000 hours at TA = +25°C 50 time 1,000hrs
DYNAMIC
f = 0.1Hz to 10Hz 25 µVp-p Noise Voltage eOUT f = 10Hz to 10kHz 65 µVRMS ∆VOUT/ Ripple Rejection VIN = 5V ±100mV, f = 120Hz 86 dB ∆VIN Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 30 µs Capacitive-Load Stability Range COUT (Note 4) 0 2.2 nF
INPUT
Supply Voltage Range VIN Guaranteed by line-regulation test 2.5 12.6 V Quiescent Supply Current IIN 27 45 µA Change in Supply Current IIN/VIN 2.5V ≤ VIN ≤ 12.6V 0.8 2.6 µA/V
2 _______________________________________________________________________________________
Voltages Referenced to GND Continuous Power Dissipation (TA = +70°C) IN ...-0.3V to +13.5V SOT23-3 (derate 4.0mW/°C above +70°C)..320mW OUT ...-0.3V to (VIN + 0.3V) Operating Temperature Range ...-40°C to +85°C Output Short Circuit to GND or IN (VIN < 6V) ..Continuous Storage Temperature Range ...-65°C to +150°C Output Short Circuit to GND or IN (VIN ≥ 6V) ...60sec Lead Temperature (soldering, 10sec) ...+300°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS—MAX6001
(VIN = +5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
Output Voltage VOUT TA = +25°C 1.237 1.250 1.263 V Output Voltage Temperature TCVOUT 20 100 ppm/°C
MAX6001–MAX6005
Coefficient (Note 2) ∆VOUT/ Line Regulation 2.5V ≤ VIN ≤ 12.6V 8 120 µV/V ∆VIN ∆V Sourcing: 0 OUT/ ≤ IOUT ≤ 400µA 0.12 0.8 Load Regulation ∆ µV/µA IOUT Sinking: -400µA ≤ IOUT ≤ 0 0.15 1.0 Short to GND 4 OUT Short-Circuit Current ISC mA Short to IN 4 Temperature Hysteresis 130 ppm (Note 3) ∆VOUT/ ppm/ Long-Term Stability 1,000 hours at TA = +25°C 50 time 1,000hrs
DYNAMIC
f = 0.1Hz to 10Hz 25 µVp-p Noise Voltage eOUT f = 10Hz to 10kHz 65 µVRMS ∆VOUT/ Ripple Rejection VIN = 5V ±100mV, f = 120Hz 86 dB ∆VIN Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 30 µs Capacitive-Load Stability Range COUT (Note 4) 0 2.2 nF
INPUT
Supply Voltage Range VIN Guaranteed by line-regulation test 2.5 12.6 V Quiescent Supply Current IIN 27 45 µA Change in Supply Current IIN/VIN 2.5V ≤ VIN ≤ 12.6V 0.8 2.6 µA/V
2 _______________________________________________________________________________________
